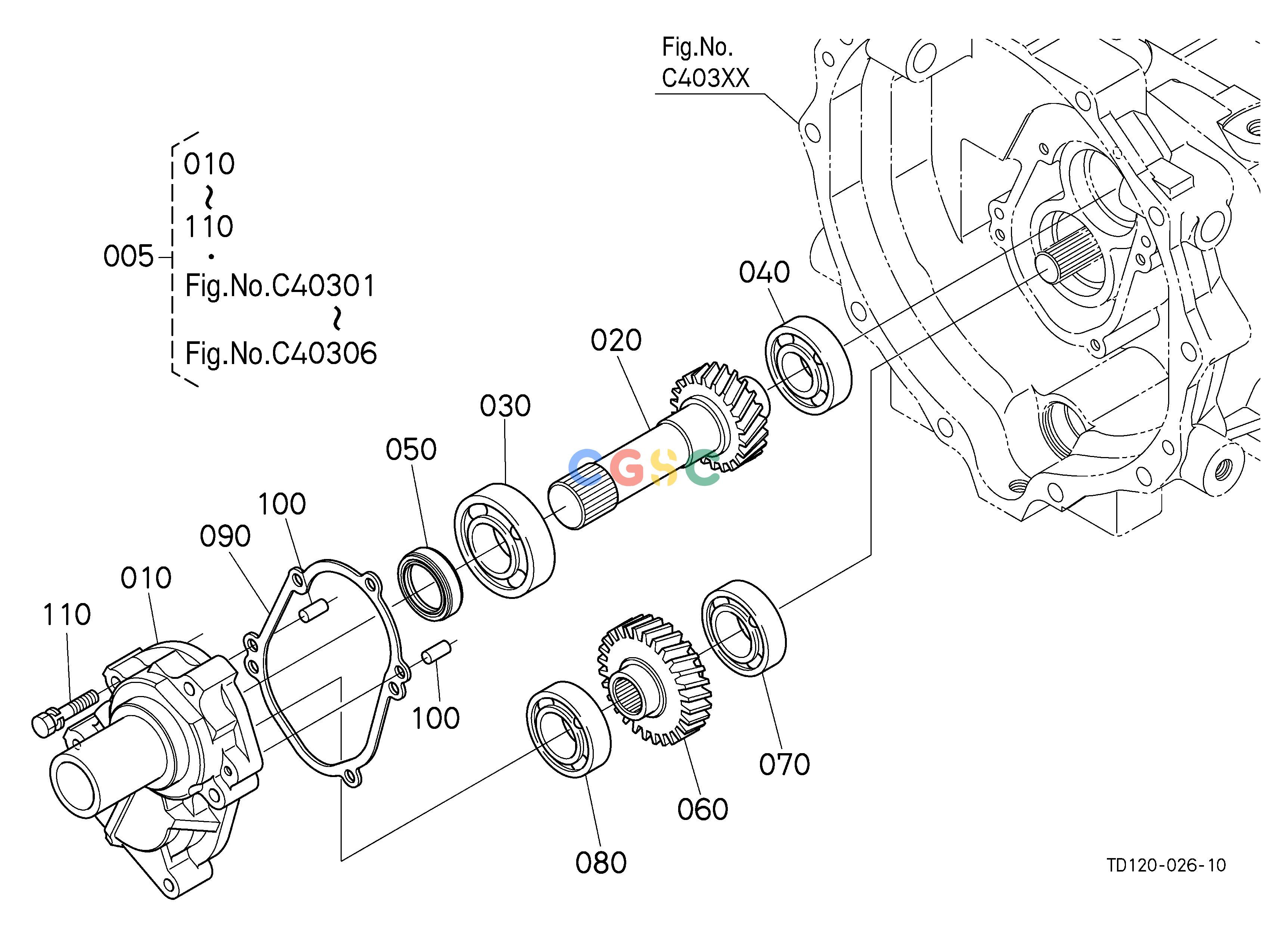

久保田零件查询C40307 HST (INPUT SHAFT) [COMPONENT PARTS] [HST TYPE] ## NOTE:ORDER BY REF.No.050 and 010 NEW PARTS. CLUTCH/TRANSMISSIONEPC Kubota online

广数供应链运营团队, 17 02月, 2025，浏览： 727 次

Pos.	Part No	Qty	Parts name	Comments
005.	TD15059991	[1]	HST,ASSY	ORDER BY REF.No.005 NEW PART.; <=50124 0.0000(lbs); 0.000
005.	TD15059992	[1]	HST,ASSY	ORDER BY REF.No.005 NEW PART.; >=50125 235.4000(lbs); 107.0
005.	TD15059993	[1]	HST,ASSY	ORDER BY REF.No.005 NEW PART.; >=60064 235.4000(lbs); 107.0
005.	TD15059996	[1]	ASSY HST	; >=60166 220.0000(lbs); 100.0
010.	TD06051102	[1]	CASE(SHAFT,PROP.)	; <=60165 1.8150(lbs); 0.825
010.	TD06051104	[1]	CASE,PROPELLER SHAFT	; >=60166 1.8150(lbs); 0.825
020.	TD15051400	[1]	GEAR-SHAFT,INPUT	23T 3.4320(lbs); 1.560
030.	0810106207	[1]	BEARING,BALL	0.6160(lbs); 0.280
040.	0810106206	[1]	BEARING,BALL	0.4290(lbs); 0.195
050.	TD17051390	[1]	SEAL,OIL	SEE NOTE; <=60165 0.0440(lbs); 0.020
050.	TD35051390	[1]	SEAL,OIL	; >=60166 0.0550(lbs); 0.025
060.	TD15052200	[1]	GEAR,HST	27T 1.7270(lbs); 0.785
070.	3692040090	[1]	BEARING,BALL	0.2970(lbs); 0.135
080.	0810106007	[1]	BEARING,BALL	0.3520(lbs); 0.160
090.	TD06051113	[1]	GASKET	0.0110(lbs); 0.005
100.	0501200818	[2]	PIN,STRAIGHT	0.0286(lbs); 0.013
110.	0112350845	[5]	BOLT,SEMS	0.0440(lbs); 0.020
