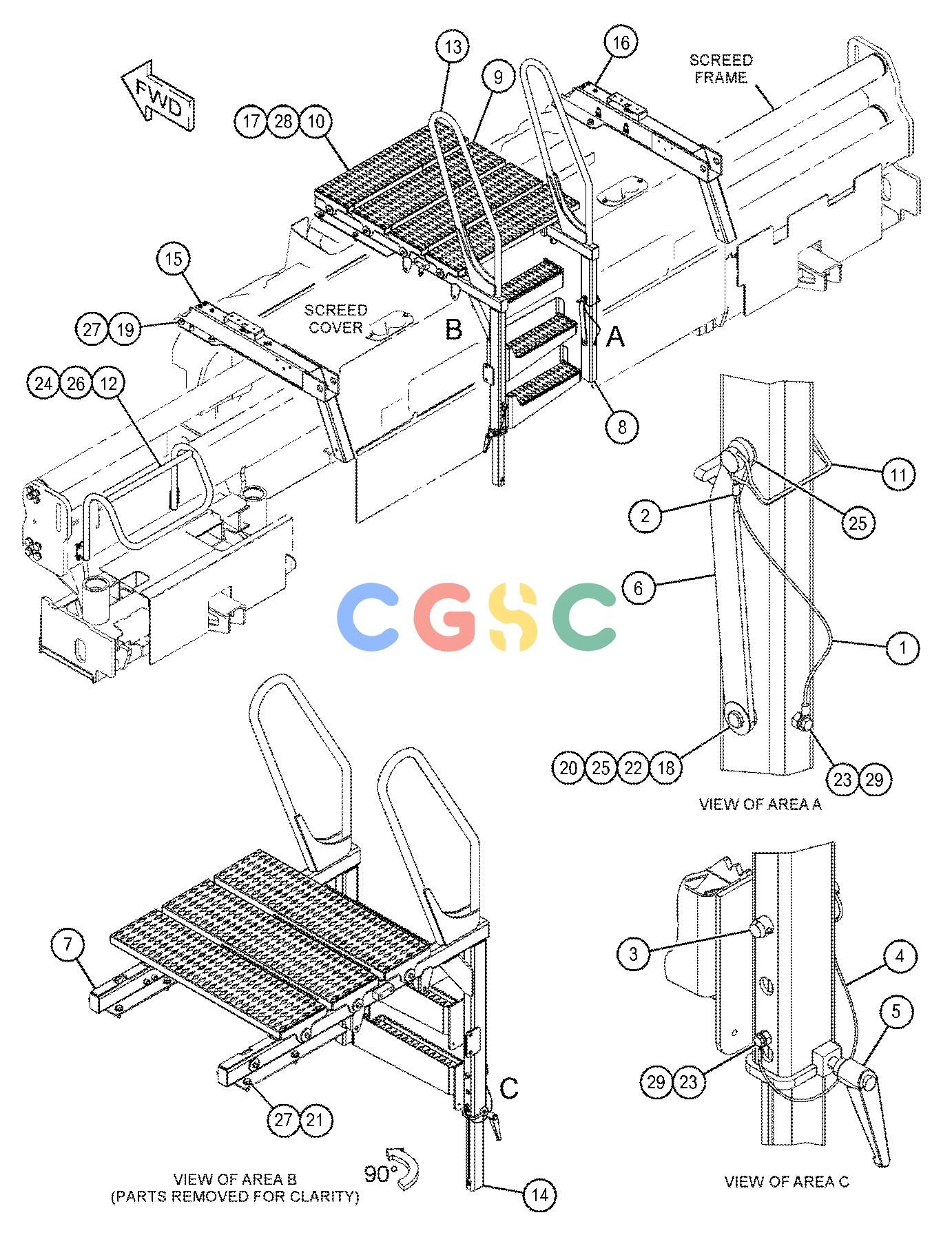

卡特零件查询（AP655F） 390-4775: PLATFORM GP-OPERATOR
广数供应链运营团队, 17 02月, 2025，浏览：
138 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 5P-7957 | [1] | LANYARD | |
| 2. | 5P-7958 | [1] | SLEEVE-CABLE SPLICE | |
| 3. | 054-8974 | [1] | PIN | |
| 4. | 252-5218 | [1] | LANYARD(371-MM) | |
| 5. | 320-2845 | [1] | LEVER | |
| 6. | 417-2492 | [1] | LINK | |
| 7. | 439-2753 | [8] | STRIP | |
| 8. | 441-6186 | [1] | SUPPORT AS(RH) | |
| | 7T-1099 | [3] | LINK | |
| | 8T-3490M | [2] | NUT-WELD(M10X1.5-THD) | |
| | 8T-3597M | [2] | NUT-WELD(M12X1.75-THD) | |
| | 6V-9632M | [1] | NUT-WELD(M6X1-THD) | |
| | 169-2554 | [1] | PLATE | |
| 9. | 441-6195 | [3] | WALKWAY AS | |
| 10. | 441-6198 | [1] | WALKWAY AS(FRONT) | |
| | 8T-3490M | [3] | NUT-WELD(M10X1.5-THD) | |
| | 441-6195 | [1] | WALKWAY AS | |
| 11. | 450-5809 | [1] | PIN | |
| 12. | 453-2444 | [1] | HANDRAIL AS | |
| 13. | 477-2956 | [1] | SUPPORT AS(LH) | |
| | 6V-9632M | [1] | NUT-WELD(M6X1-THD) | |
| | 7T-1099 | [3] | LINK | |
| | 8T-3490M | [2] | NUT-WELD(M10X1.5-THD) | |
| | 8T-3597M | [2] | NUT-WELD(M12X1.75-THD) | |
| | 169-2554 | [1] | PLATE | |
| | 8Y-3465M | [4] | BOSS(M10X1.5X12-MM) | |
| | 9C-7928M | [1] | BLOCK(M10X1.5-MM) | |
| 14. | 478-1900 | [1] | TUBE | |
| 15. | 481-5729 | [1] | SUPPORT AS(LH) | |
| | 7T-1099 | [1] | LINK | |
| | 8T-3490M | [5] | NUT-WELD(M10X1.5-THD) | |
| | 8T-3597M | [4] | NUT-WELD(M12X1.75-THD) | |
| | 9R-2613M | [1] | BOSS-WELD(M10X1.5X25-MM) | |
| | 130-5300 | [3] | CLIP | |
| 16. | 481-5730 | [1] | SUPPORT AS(RH) | |
| | 7T-1099 | [1] | LINK | |
| | 8T-3490M | [5] | NUT-WELD(M10X1.5-THD) | |
| | 8T-3597M | [4] | NUT-WELD(M12X1.75-THD) | |
| | 130-5300 | [3] | CLIP | |
| 17. | 115-6433 | [4] | WASHER(11X50X6-MM THK) | |
| 18. | 132-0338 | [1] | WASHER-PLASTIC(13X31.7X0.8-MM THK) | |
| 19. | 198-4778 | [8] | WASHER-HARD(13.5X30X12-MM THK) | |
| 20. | 3B-4615 | [1] | PIN-COTTER | |
| 21. | 5P-1076 | [8] | WASHER-HARD(13.5X30X4-MM THK) | |
| 22. | 6S-9277 | [1] | PIN | |
| 23. | 6V-7357M | [2] | BOLT(M6X1X25-MM) | |
| 24. | 7X-7729 | [4] | WASHER(11X25X3-MM THK) | |
| 25. | 8K-1433 | [4] | GROMMET | |
| 26. | 8T-4136M | [4] | BOLT(M10X1.5X25-MM) | |
| 27. | 8T-4183M | [16] | BOLT(M12X1.75X40-MM) | |
| 28. | 8T-4191M | [4] | BOLT(M10X1.5X16-MM) | |
| 29. | 8T-4205 | [2] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| | M | | METRIC PART |
