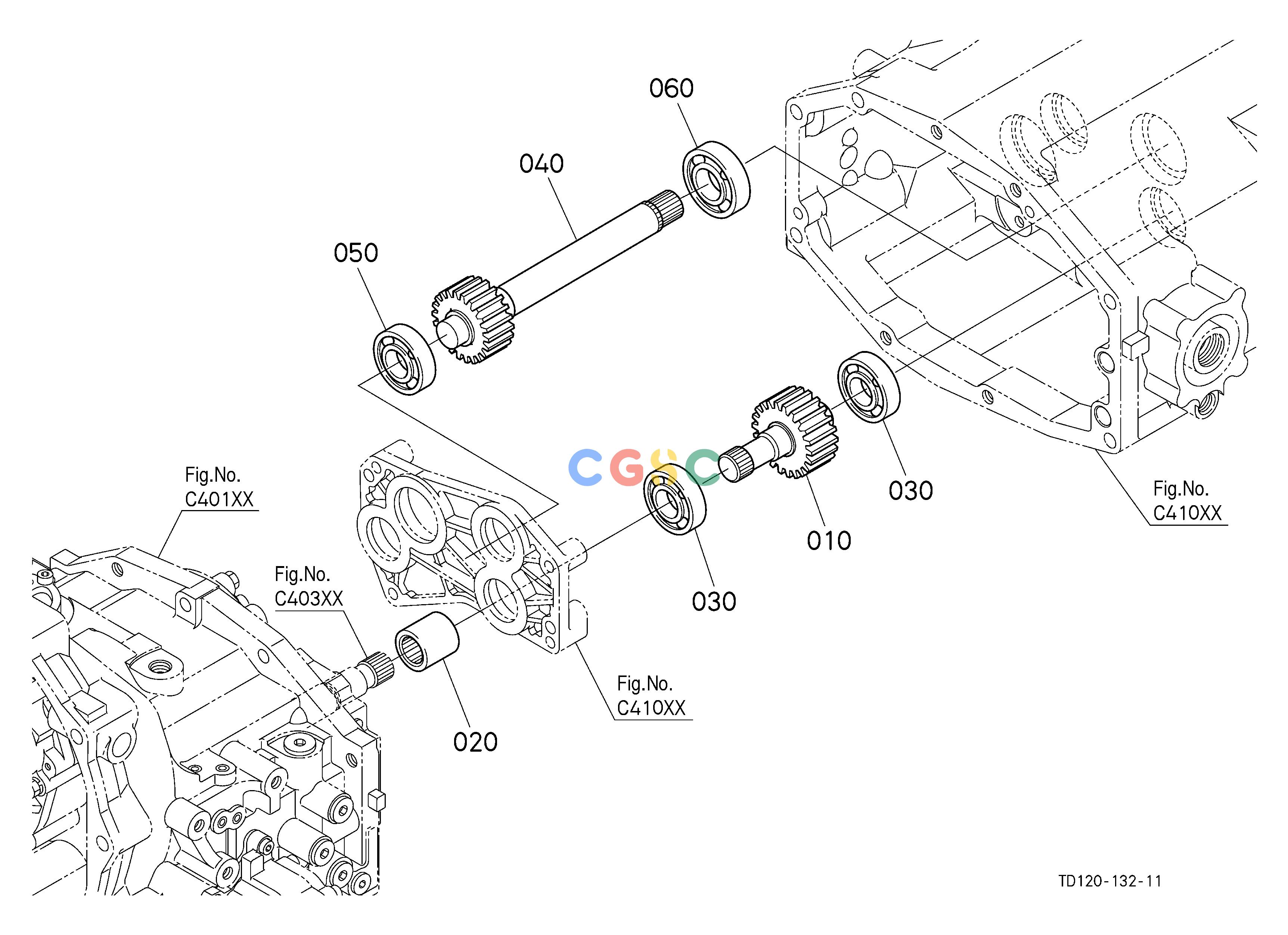

久保田零件查询D10503 COUNTERSHAFT [HST TYPE] CLUTCH/TRANSMISSIONEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
467 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TD15052400
|
[1] |
GEAR-SHAFT
|
2.4200(lbs); 1.100
|
| 010. |
TD25052400
|
[1] |
GEAR-SHAFT
|
2.4200(lbs); 1.100
|
| 020. |
3715021682
|
[1] |
COUPLING
|
0.5280(lbs); 0.240
|
| 030. |
3741057190
|
[2] |
BEARING,BALL
|
0.3080(lbs); 0.140
|
| 040. |
TD15052500
|
[1] |
GEAR-SHAFT
|
4.1360(lbs); 1.880
|
| 040. |
TD25052500
|
[1] |
GEAR-SHAFT
|
4.1360(lbs); 1.880
|
| 050. |
3741057190
|
[1] |
BEARING,BALL
|
0.3080(lbs); 0.140
|
| 060. |
0810106206
|
[1] |
BEARING,BALL
|
0.4290(lbs); 0.195
|
| 060. |
T205023450
|
[1] |
BEARING,BALL
|
0.4400(lbs); 0.200
|
