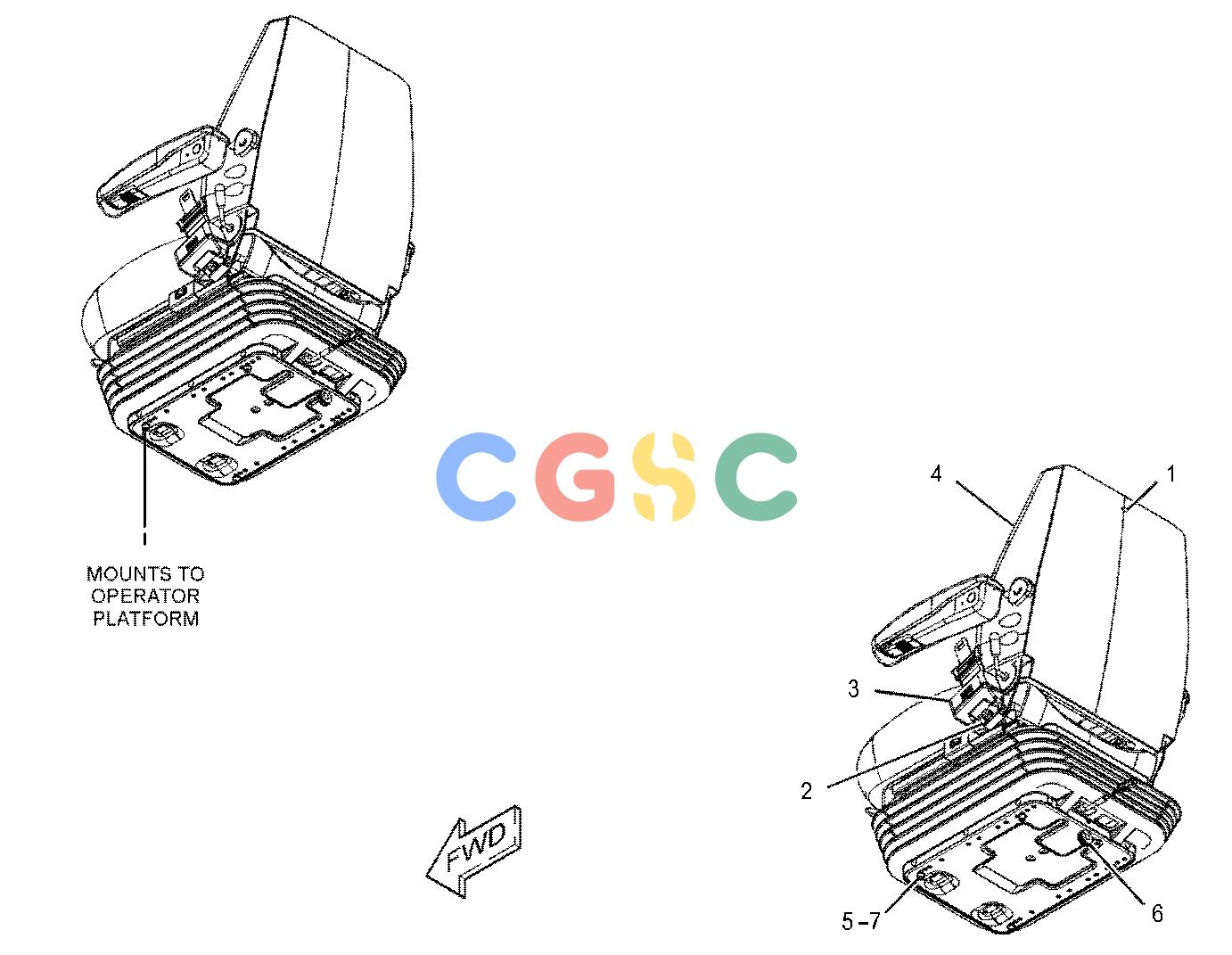

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 5P-7958 | [1] | SLEEVE-CABLE SPLICE | |
| 2. | 236-5056 | [2] | FASTENER GP-SEAT | |
| 3. | 230-6367C | [2] | SEAT BELT GP(RETRACTABLE, 76-MM) | |
| 4. | 417-8839Y | [2] | SEAT GP-SUSPENSION(VINYL, HEATED, AIR) | |
| 5. | 8T-4908CM | [8] | BOLT(M8X1.25X25-MM) | |
| 6. | 7G-7053 | [2] | GROMMET | |
| 7. | 8T-4224 | [8] | WASHER-HARD(8.8X16X2-MM THK) | |
| C | CHANGE FROM PREVIOUS TYPE | |||
| M | METRIC PART | |||
| Y | SEPARATE ILLUSTRATION | |||
