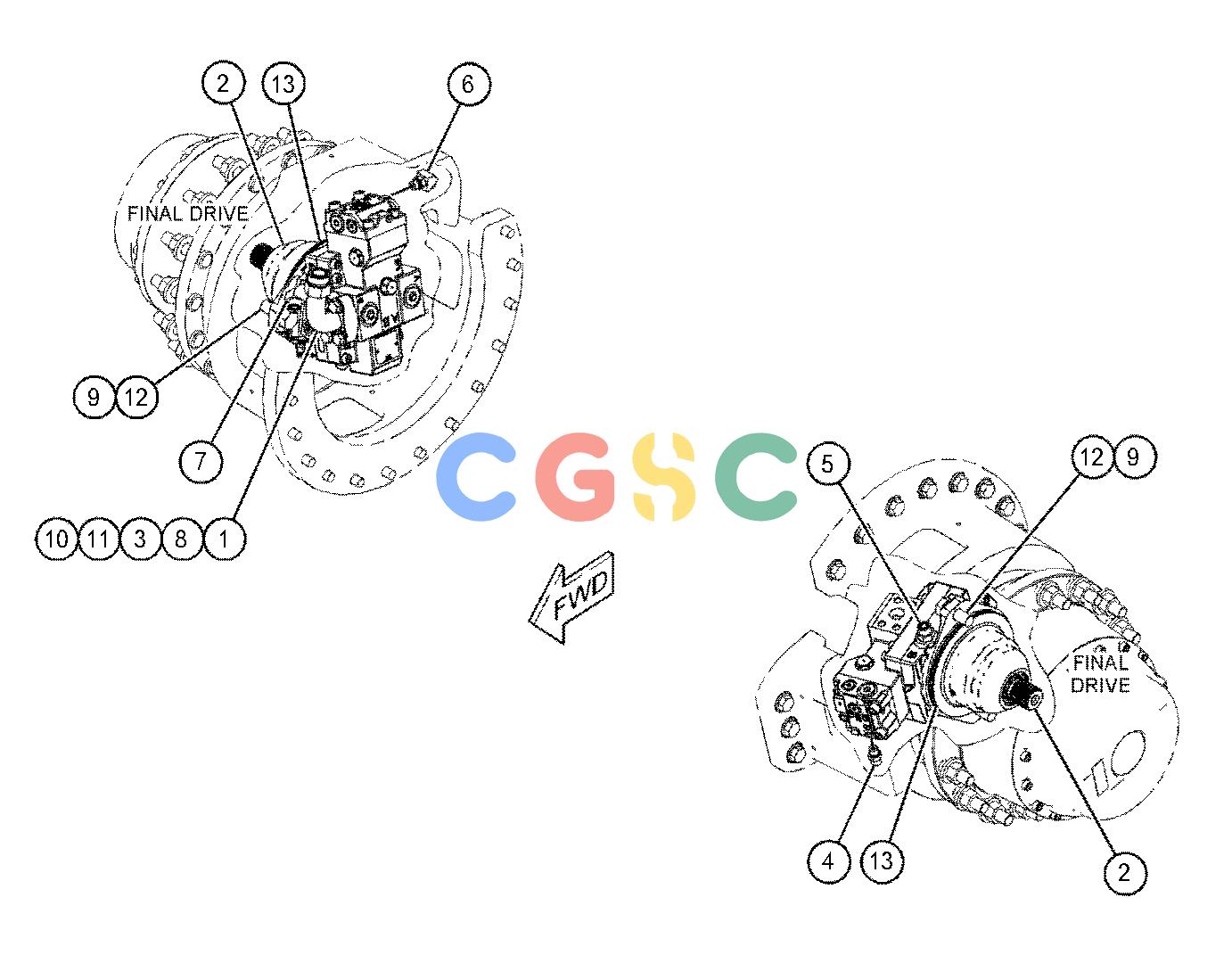

卡特零件查询（AP655F） 433-3530: MOTOR & MTG GP-PROPEL
广数供应链运营团队, 17 02月, 2025，浏览：
269 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 369-6823 | [1] | ELBOW AS | |
| | 5K-9090 | [1] | SEAL-O-RING | |
| | 369-6822 | [1] | ADAPTER-ELBOW | |
| 2. | 499-7348Y | [2] | MOTOR GP-PISTON | |
| 3. | 124-4288 | [2] | FLANGE-SPLIT | |
| 4. | 148-8336 | [1] | CONNECTOR AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8636 | [1] | CONNECTOR | |
| 5. | 148-8345 | [1] | CONNECTOR AS | |
| | 2M-9780 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-8638 | [1] | CONNECTOR | |
| 6. | 148-8353 | [1] | ELBOW AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-9001 | [1] | ELBOW | |
| 7. | 148-8358 | [1] | ELBOW AS | |
| | 2M-9780 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-8624 | [1] | ELBOW | |
| 8. | 4J-0520 | [1] | SEAL-O-RING | |
| 9. | 8T-4123 | [4] | WASHER(22X35X3.5-MM THK) | |
| 10. | 8T-4194M | [4] | BOLT(M12X1.75X50-MM) | |
| 11. | 8T-4223 | [4] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 12. | 8T-6430M | [4] | BOLT(M20X2.5X50-MM) | |
| 13. | 192-5168 | [2] | SEAL-O-RING | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
