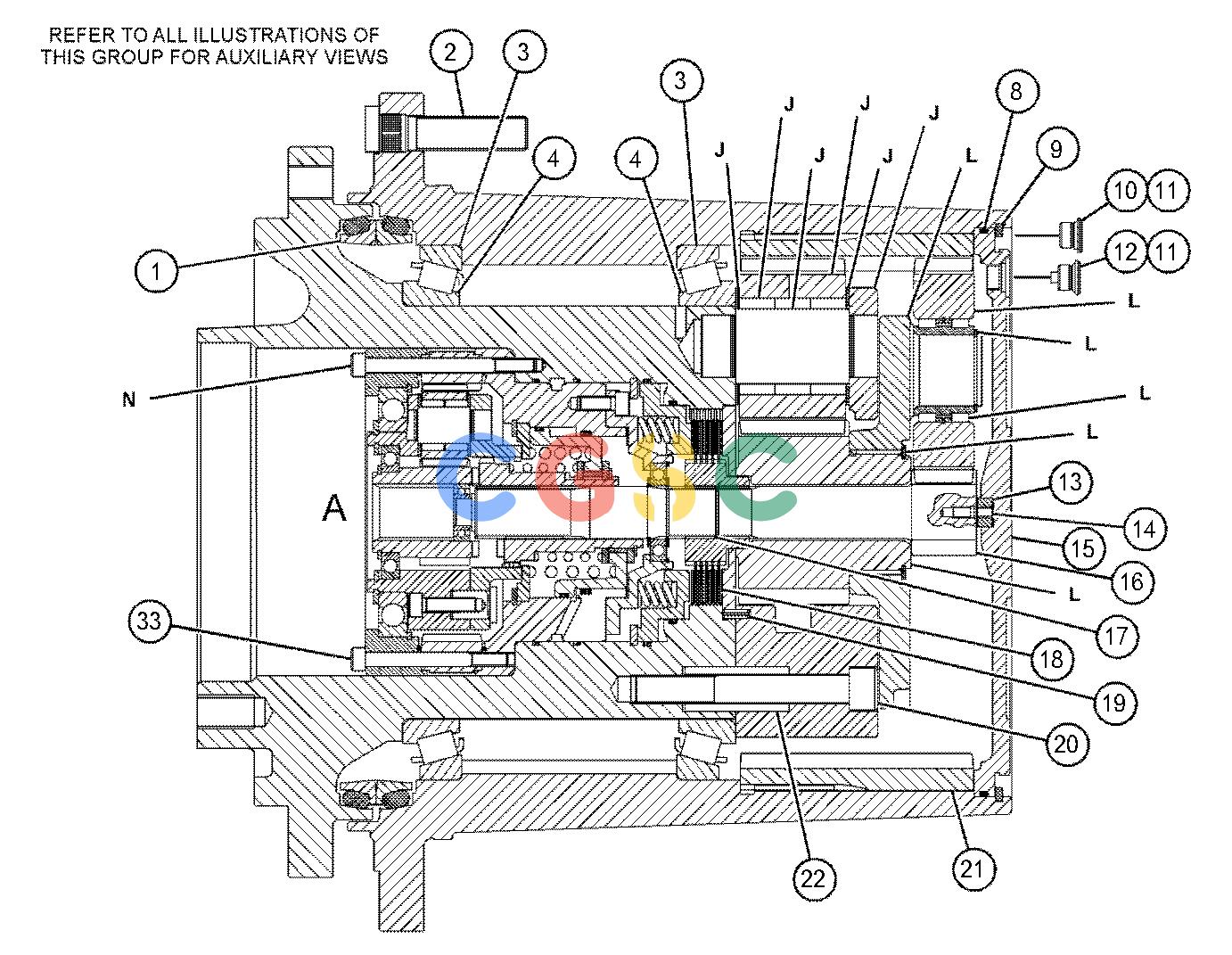

| 1. | 325-4691 | [1] | SEAL GP-DUO-CONE | |
| 2. | 240-9924 | [16] | STUD-WHEEL | |
| 3. | 151-3085 | [2] | CUP | |
| 4. | 151-3084 | [2] | CONE | |
| 5. | 280-9800 | [1] | PLATE-BRAKE | |
| 8. | 2D-6533 | [1] | SEAL-O-RING | |
| 9. | 241-0163 | [1] | RING-RETAINING | |
| 10. | 9S-8004 | [3] | PLUG(9/16-18-THD) | |
| 11. | 3J-1907 | [4] | SEAL-O-RING | |
| 12. | 235-3610 | [1] | PLUG-MAGNETIC | |
| 13. | 191-2287 | [1] | PAD | |
| 14. | 191-4441 | [1] | KIT-SHIM(INCLUDES 3-SHIMS) | |
| | | | (INCLUDES SHIMS) |
| 15. | 240-9112 | [1] | COVER | |
| 16. | 240-9113 | [1] | GEAR-SUN | |
| 17. | 8C-3312 | [1] | RING-RETAINING | |
| 18. | 251-9614 | [1] | KIT-SHIM(PARKING BRAKE) | |
| | | | (INCLUDES SHIMS) |
| 19. | 243-5389 | [4] | PIN-SPRING | |
| 20. | 095-0707M | [4] | BOLT(M16X2X120-MM) | |
| 21. | 243-0716 | [1] | GEAR-RING(69-TEETH) | |
| 22. | 327-8065 | [4] | BUSHING | |
| 29. | 136-8067 | [1] | PISTON-BRAKE | |
| 33. | 8T-4776M | [8] | BOLT-SOCKET HEAD(M8X1.25X100-MM) | |
| 37. | 207-2817 | [16] | SPRING | |
| 38. | 240-5321 | [1] | KIT-BRAKE DISC | |
| | | | (INCLUDES DISK BRAKES) |
| 39. | 485-0623 | [1] | COUPLING | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 268-8205J | [1] | KIT-PLANETARY CARRIER(STAGE 3) | |
| | | | (INCLUDES WASHERS, GEARS, CARRIER, BEARINGS & PARTS MARKED 'J" IN GRAPHIC) |
| | 240-5332L | [1] | KIT-PLANETARY CARRIER(STAGE 2) | |
| | | | (INCLUDES CARRIER, GHEARS, SNAP RINGS, SUN GEAR, NEEDLE BEARING & PARTS MARKED "L" IN GRAPHIC) |
| | 240-5323N | [1] | KIT-PLANETARY GEAR(PISTON HOUSING SHIFTER) | |
| | | | (INCLUDES RING, SHIFTER, PLATE, BUSHING, PISTON, SUPPORT FLANGE, WASHERS, COUPLING, SUN GEAR, SHAFT |
| | | | & PARTS MARKED "N" IN GRAPHIC) |
| | 240-5324NP | [1] | KIT-RETAINING RING(SHIFTER, BEARING) | |
| | | | (INCLUDES SNAP RINGS-INTERNAL, SNAP RINGS-EXTERNAL & PARTS MARKED "P" IN GRAPHIC) |
| | 434-1439S | [1] | KIT-SEAL | |
| | | | (INCLUDES BACKUP-RINGS, O-RING SEALS & PARTS MARKED "S" IN GRAPHIC) |
| | 240-5328NT | [1] | KIT-SHIM(SHIFTER) | |
| | | | (INCLUDES SHIM KITS & PARTS MARKED "T" IN GRAPHIC ) |
| | 240-5325NU | [1] | KIT-SEAL(SHIFTER) | |
| | | | (INCLUDES O-RING SEALS, RINGS & PARTS MARKED "U" IN GRAPHIC) |
| | 240-5326NV | [1] | KIT-BEARING(SHIFTER) | |
| | | | (INCLUDES BALL BEARINGS & PARTS MARKED "V" IN GRAPHIC) |
| | 240-5331NW | [1] | KIT-PLANETARY CARRIER(STAGE 1) | |
| | | | (INCLUDES THRUST WASHERS, GEARS, CARRIERS, DOWEL PINS, BOLTS, BEARINGS & PARTS MARKED "W" IN GRAPHIC) |
| | 240-5327NX | [1] | KIT-SPRING(SHIFTER) | |
| | | | (INCLUDES SHIFTER RINGS & PARTS MARKED "X" IN GRAPHIC) |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
| | L | | KIT MARKED L SERVICES PART(S) MARKED L |
| | M | | METRIC PART |
| | N | | KIT MARKED N SERVICES PART(S) MARKED N |
| | P | | KIT MARKED P SERVICES PART(S) MARKED P |
| | S | | KIT MARKED S SERVICES PART(S) MARKED S |
| | T | | KIT MARKED T SERVICES PART(S) MARKED T |
| | U | | KIT MARKED U SERVICES PART(S) MARKED U |
| | V | | KIT MARKED V SERVICES PART(S) MARKED V |
| | W | | KIT MARKED W SERVICES PART(S) MARKED W |
| | X | | KIT MARKED X SERVICES PART(S) MARKED X |
