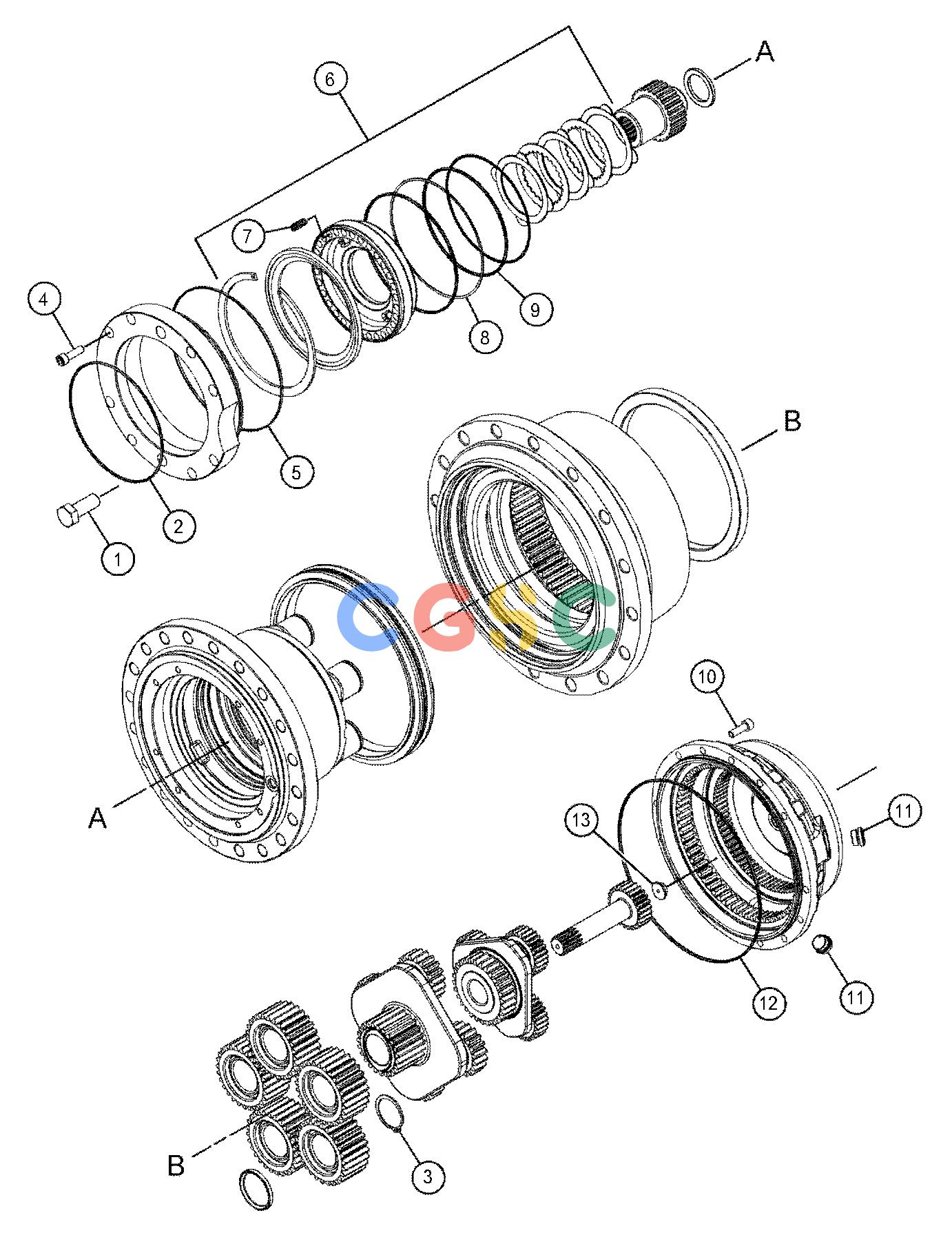

卡特零件查询（AP655F） 434-4006: PLANETARY GP-FINAL DRIVE
广数供应链运营团队, 17 02月, 2025，浏览：
465 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 7X-2562M | [2] | BOLT(M20X2.5X45-MM) | |
| 2. | 270-6871J | [1] | SEAL-O-RING | |
| 3. | 8T-4241 | [5] | RING-RETAINING | |
| 4. | 8T-0271M | [8] | BOLT-SOCKET HEAD(M10X1.5X35-MM) | |
| 5. | 4K-6804J | [1] | SEAL-O-RING | |
| 6. | 469-2339L | [1] | KIT-BRAKE | |
| | | | (INCLUDES DISCS, BACKUP-RINGS, BRAKE-PISTON, SPRING-PLATE & RING) |
| 7. | 418-4451L | [22] | SPRING | |
| 8. | 4H-6520L | [1] | SEAL-O-RING | |
| 9. | 6F-4718L | [1] | SEAL-O-RING | |
| 10. | 9X-6032M | [13] | BOLT-SOCKET HEAD(M10X1.5X30-MM) | |
| 11. | 469-2336J | [2] | PLUG-BREATHER | |
| 12. | 2R-0239J | [1] | SEAL-O-RING | |
| 13. | 264-7897 | [1] | DISC | |
| | | | |
| | | | PARTS SHOWN IN GRAPHIC(S) WITHOUT A REFERENCE NUMBER ARE NOT SERVICED SEPARATELY |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 469-2338J | [1] | KIT-SEAL | |
| | | | (INCLUDES SEAL) |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
| | L | | KIT MARKED L SERVICES PART(S) MARKED L |
| | M | | METRIC PART |
