卡特零件查询（AP655F） 452-5239: ARM GP-TOW
广数供应链运营团队, 17 02月, 2025，浏览：
609 次

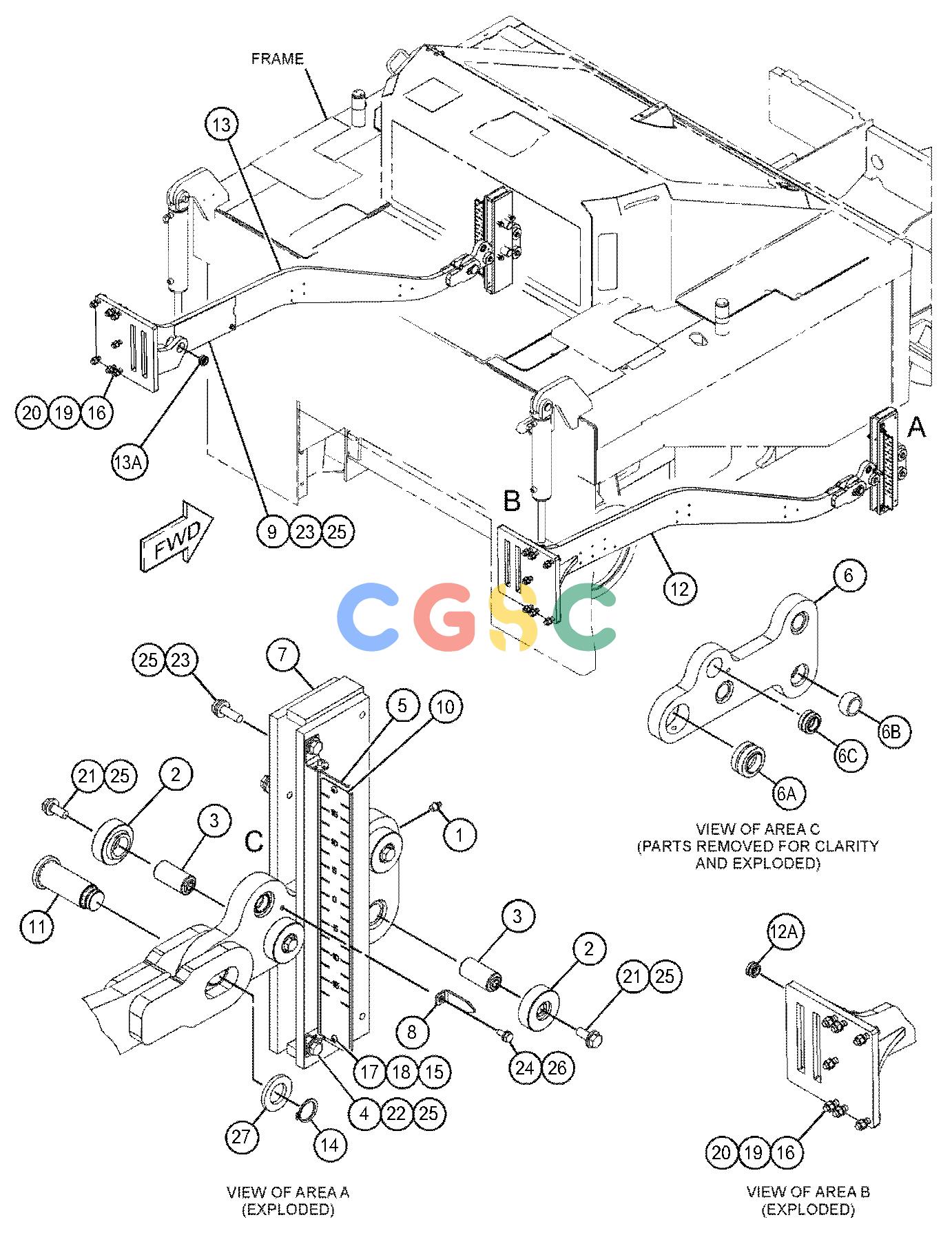

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3B-8489 | [8] | FITTING-GREASE(1/8-27 PTF) | |
| 2. | 194-4519 | [12] | ROLLER | |
| 3. | 194-4520 | [6] | SHAFT | |
| 4. | 194-8183 | [4] | PLATE | |
| 5. | 194-8186 | [2] | PLATE AS | |
| 6. | 376-7858 | [2] | ARM GP-TOW | |
| | | | (EACH INCLUDES) |
| 6A. | 4D-0298 | [1] | BEARING | |
| 6B. | 9W-2401 | [3] | BEARING-ALIGNING | |
| 6C. | 005-8639 | [1] | BEARING-ALIGNING | |
| 7. | 415-9198 | [2] | SUPPORT AS | |
| 8. | 424-7122 | [2] | PLATE | |
| 9. | 429-0558 | [2] | WEDGE | |
| 10. | 430-3918 | [2] | PLATE-SCALE | |
| 11. | 435-8571 | [2] | PIN | |
| 12. | 452-5328 | [1] | ARM GP-TOW | |
| 12A. | 2D-8652 | [1] | BEARING | |
| 13. | 452-5329 | [1] | ARM GP-TOW | |
| 13A. | 2D-8652 | [1] | BEARING | |
| 14. | 036-4453 | [2] | RING-RETAINING | |
| 15. | 5C-2874M | [4] | NUT(M5X0.8-THD) | |
| 16. | 7X-2564M | [14] | BOLT(M20X2.5X90-MM) | |
| 17. | 7Y-7388M | [4] | SCREW-BUTTON HEAD(M5X0.8X12-MM) | |
| 18. | 8T-0328 | [4] | WASHER-HARD(5.5X10X1-MM THK) | |
| 19. | 8T-4123 | [28] | WASHER(22X35X3.5-MM THK) | |
| 20. | 8T-4131M | [14] | NUT(M20X2.5-THD) | |
| 21. | 8T-4139M | [12] | BOLT(M12X1.75X30-MM) | |
| 22. | 8T-4179M | [4] | BOLT(M12X1.75X20-MM) | |
| 23. | 8T-4183M | [12] | BOLT(M12X1.75X40-MM) | |
| 24. | 8T-4200M | [2] | BOLT(M8X1.25X16-MM) | |
| 25. | 8T-4223 | [36] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 26. | 8T-4224 | [2] | WASHER-HARD(8.8X16X2-MM THK) | |
| 27. | 9X-8258 | [2] | WASHER(33X56X6-MM THK) | |
| | M | | METRIC PART |
