卡特零件查询（AP655F） 428-4898: DEFLECTOR GP
广数供应链运营团队, 17 02月, 2025，浏览：
670 次

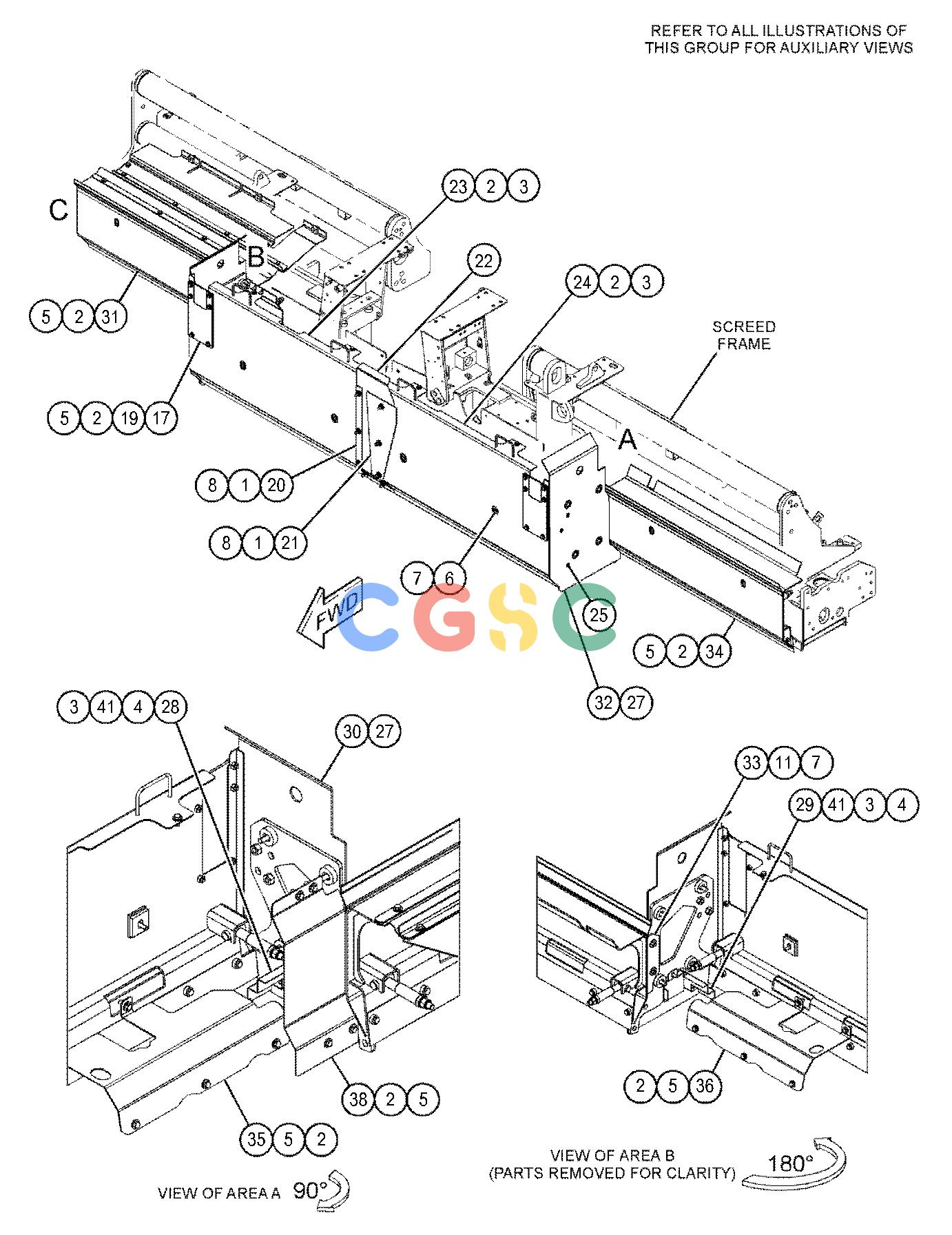

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 5P-1076 | [8] | WASHER-HARD(13.5X30X4-MM THK) | |
| 2. | 7X-7729C | [51] | WASHER(11X25X3-MM THK) | |
| 3. | 8T-4136CM | [19] | BOLT(M10X1.5X25-MM) | |
| 4. | 8T-4191M | [2] | BOLT(M10X1.5X16-MM) | |
| 5. | 8T-4195CM | [56] | BOLT(M10X1.5X30-MM) | |
| 6. | 8T-4196M | [4] | BOLT(M10X1.5X35-MM) | |
| 7. | 8T-4222C | [8] | WASHER-PLATED(11X32X2.5-MM THK) | |
| 8. | 129-3180M | [8] | LOCKNUT(M12X1.75-THD) | |
| 9. | 176-5311M | [8] | LOCKNUT(M16X2-THD) | |
| 10. | 198-4777 | [22] | WASHER-HARD(11X25X10-MM THK) | |
| 11. | 344-5675CM | [4] | NUT(M10X1.5-THD) | |
| 12. | 394-7240 | [8] | ROD AS-ADJUSTING | |
| 13. | 422-4637M | [8] | NUT(M30X2-THD) | |
| 14. | 436-0199 | [2] | BLADE(MAIN) | |
| 15. | 439-4411 | [1] | COVER-RUBBER | |
| 16. | 439-4412 | [1] | PLATE | |
| 17. | 446-5662 | [2] | PLATE-COVER | |
| 18. | 449-0303 | [1] | PLATE | |
| 19. | 474-4538 | [2] | COVER-RUBBER | |
| 20. | 476-5422 | [1] | PLATE | |
| 21. | 476-5423 | [1] | PLATE | |
| 22. | 476-5424 | [1] | COVER | |
| 23. | 477-8130 | [1] | DEFLECTOR AS(MAIN, RH) | |
| 24. | 477-8131 | [1] | DEFLECTOR AS(MAIN, LH) | |
| | | | (EACH DEFLECTOR INCLUDES) |
| | 8T-3490M | [11] | NUT-WELD(M10X1.5-THD) | |
| | 112-9073M | [4] | STUD-WELD(M12X1.75X21.1-MM) | |
| 25. | 479-6661M | [6] | SETSCREW(M16X2X30-MM) | |
| 26. | 500-3848 | [1] | COVER AS(EXTENDER, RH) | |
| | 8T-3490M | [4] | NUT-WELD(M10X1.5-THD) | |
| | 8X-5147M | [3] | BLOCK(M10X1.5-MM) | |
| 27. | 342-9917M | [8] | BOLT-FLANGE HEAD(M16X2X40-MM) | |
| 28. | 555-7085 | [1] | COVER AS(RH) | |
| 29. | 555-7084 | [1] | COVER AS(LH) | |
| 30. | 552-4559C | [1] | PLATE AS-SIDE(RH) | |
| | 8T-4967M | [2] | STUD-WELD(M10X1.5X23-MM) | |
| | 355-8941M | [3] | NUT-WELD(M16X2-THD) | |
| 31. | 552-4562C | [1] | DEFLECTOR AS(EXTENDER, RH) | |
| 32. | 552-4571C | [1] | PLATE AS-SIDE(LH) | |
| | 8T-4967M | [2] | STUD-WELD(M10X1.5X23-MM) | |
| | 355-8941M | [3] | NUT-WELD(M16X2-THD) | |
| 33. | 552-4573C | [2] | PLATE | |
| 34. | 552-4574C | [1] | DEFLECTOR AS(EXTENDER, LH) | |
| 35. | 552-4590C | [1] | COVER(RH) | |
| 36. | 552-4592C | [1] | COVER(LH) | |
| 37. | 553-0276C | [2] | BLADE(EXTENDER) | |
| 38. | 556-4465C | [1] | COVER AS(RH) | |
| 39. | 556-4467C | [1] | COVER AS(LH) | |
| 40. | 9X-8257 | [8] | WASHER(17.5X30X3.5-MM THK) | |
| 41. | 8T-4121 | [4] | WASHER-HARD(11X21X2.5-MM THK) | |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | M | | METRIC PART |
