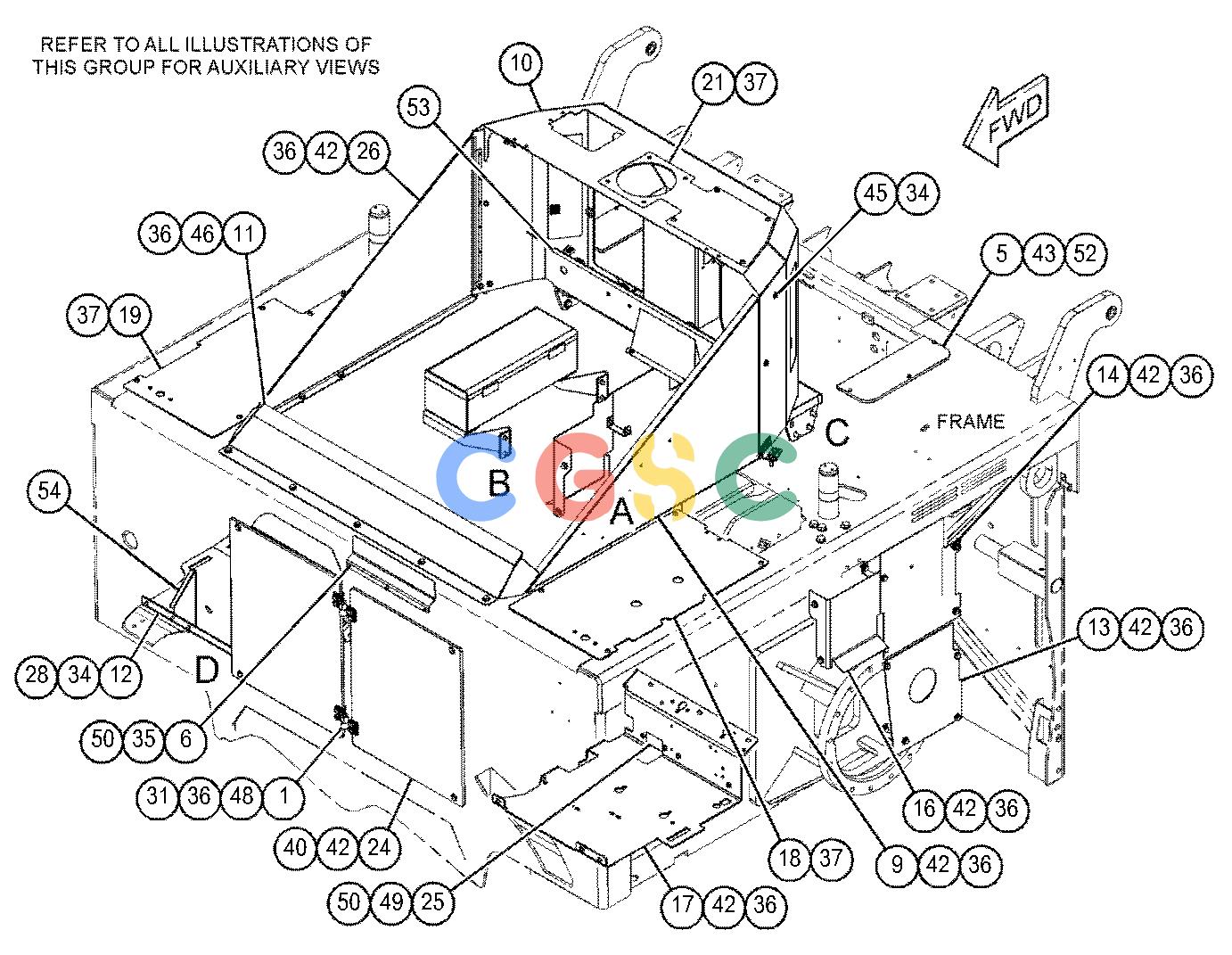

卡特零件查询（AP655F） 424-9140: COVER GP-PLATFORM
广数供应链运营团队, 17 02月, 2025，浏览：
948 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 7R-3630 | [4] | HINGE AS | |
| 2. | 8W-0791 | [1] | BOX AS-TOOL | |
| 3. | 270-4280 | [2] | BRACKET AS | |
| 4. | 280-7350 | [4] | PLATE AS | |
| 5. | 348-1785 | [2] | PLATE | |
| 6. | 359-1789 | [1] | PLATE | |
| 7. | 423-7151 | [2] | BRACKET | |
| 8. | 433-1369 | [1] | BRACKET AS | |
| | 8T-3490M | [1] | NUT-WELD(M10X1.5-THD) | |
| 9. | 433-5797 | [1] | COVER AS | |
| | 7T-1099 | [9] | LINK | |
| | 361-5420 | [1] | CLIP | |
| 10. | 433-8506 | [1] | PLATE AS | |
| 11. | 433-8515 | [1] | COVER AS | |
| 12. | 435-4125 | [1] | PLATE | |
| 13. | 437-2072 | [2] | PLATE | |
| 14. | 437-2762 | [2] | PLATE | |
| 15. | 437-2763 | [1] | COVER | |
| 16. | 437-2764 | [1] | COVER | |
| 17. | 437-8295 | [1] | BRACKET AS | |
| | 7T-1099 | [2] | LINK | |
| | 8T-3490M | [2] | NUT-WELD(M10X1.5-THD) | |
| | 8T-3612M | [9] | NUT-WELD(M8X1.25-THD) | |
| | 178-8510 | [1] | PLATE-WELD | |
| | 361-5420 | [1] | CLIP | |
| 18. | 438-1792 | [1] | COVER AS | |
| | 8T-3490M | [2] | NUT-WELD(M10X1.5-THD) | |
| | 361-5420 | [1] | CLIP | |
| 19. | 441-3723 | [1] | COVER AS | |
| | 8T-3490M | [2] | NUT-WELD(M10X1.5-THD) | |
| | 105-2797 | [4] | BOSS | |
| | 361-5420 | [1] | CLIP | |
| 20. | 441-3738 | [2] | BRACKET | |
| 21. | 441-9800 | [1] | PLATE | |
| 22. | 442-0158 | [1] | BAFFLE | |
| 23. | 442-5729 | [2] | PLATE | |
| 24. | 443-0982 | [2] | PLATE | |
| 25. | 446-3269 | [1] | PLATE | |
| 26. | 462-5434 | [1] | COVER | |
| 28. | 7Y-9099M | [3] | SCREW-TRUSS HEAD(M8X1.25X25-MM) | |
| 29. | 198-4777 | [2] | WASHER-HARD(11X25X10-MM THK) | |
| 30. | 281-2901M | [4] | SCREW-BUTTON HEAD(M10X1.5X40-MM) | |
| 31. | 344-5675M | [16] | NUT(M10X1.5-THD) | |
| 32. | 4B-4863 | [4] | WASHER(4.7X11X1.2-MM THK) | |
| 33. | 5P-1076 | [10] | WASHER-HARD(13.5X30X4-MM THK) | |
| 34. | 5P-4116 | [7] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 35. | 7X-2536M | [3] | BOLT(M8X1.25X14-MM) | |
| 36. | 7X-7729 | [83] | WASHER(11X25X3-MM THK) | |
| 37. | 8C-8585M | [20] | SCREW-BUTTON HEAD(M10X1.5X20-MM) | |
| 38. | 8R-9645 | [3] | WASHER(6.6X30X5-MM THK) | |
| 39. | 8T-3998M | [4] | BOLT(M4X0.7X12-MM) | |
| 40. | 8T-4121 | [4] | WASHER-HARD(11X21X2.5-MM THK) | |
| 41. | 8T-4136M | [8] | BOLT(M10X1.5X25-MM) | |
| 42. | 8T-4137M | [32] | BOLT(M10X1.5X20-MM) | |
| 43. | 8T-4138M | [9] | BOLT(M6X1X20-MM) | |
| 44. | 8T-4179M | [4] | BOLT(M12X1.75X20-MM) | |
| 45. | 8T-4189M | [4] | BOLT(M8X1.25X20-MM) | |
| 46. | 8T-4191M | [9] | BOLT(M10X1.5X16-MM) | |
| 47. | 8T-4195M | [2] | BOLT(M10X1.5X30-MM) | |
| 48. | 8T-4196M | [12] | BOLT(M10X1.5X35-MM) | |
| 49. | 8T-4200M | [2] | BOLT(M8X1.25X16-MM) | |
| 50. | 8T-4224 | [5] | WASHER-HARD(8.8X16X2-MM THK) | |
| 51. | 8T-4956M | [6] | BOLT(M12X1.75X35-MM) | |
| 52. | 9X-8256 | [6] | WASHER(6.6X12X2-MM THK) | |
| 53. | 5P-5930H | | SEAL(1-M) | |
| 54. | 467-5688 | [1] | BRACKET | |
| | H | | ORDER BY THE DECIMETER |
| | M | | METRIC PART |
