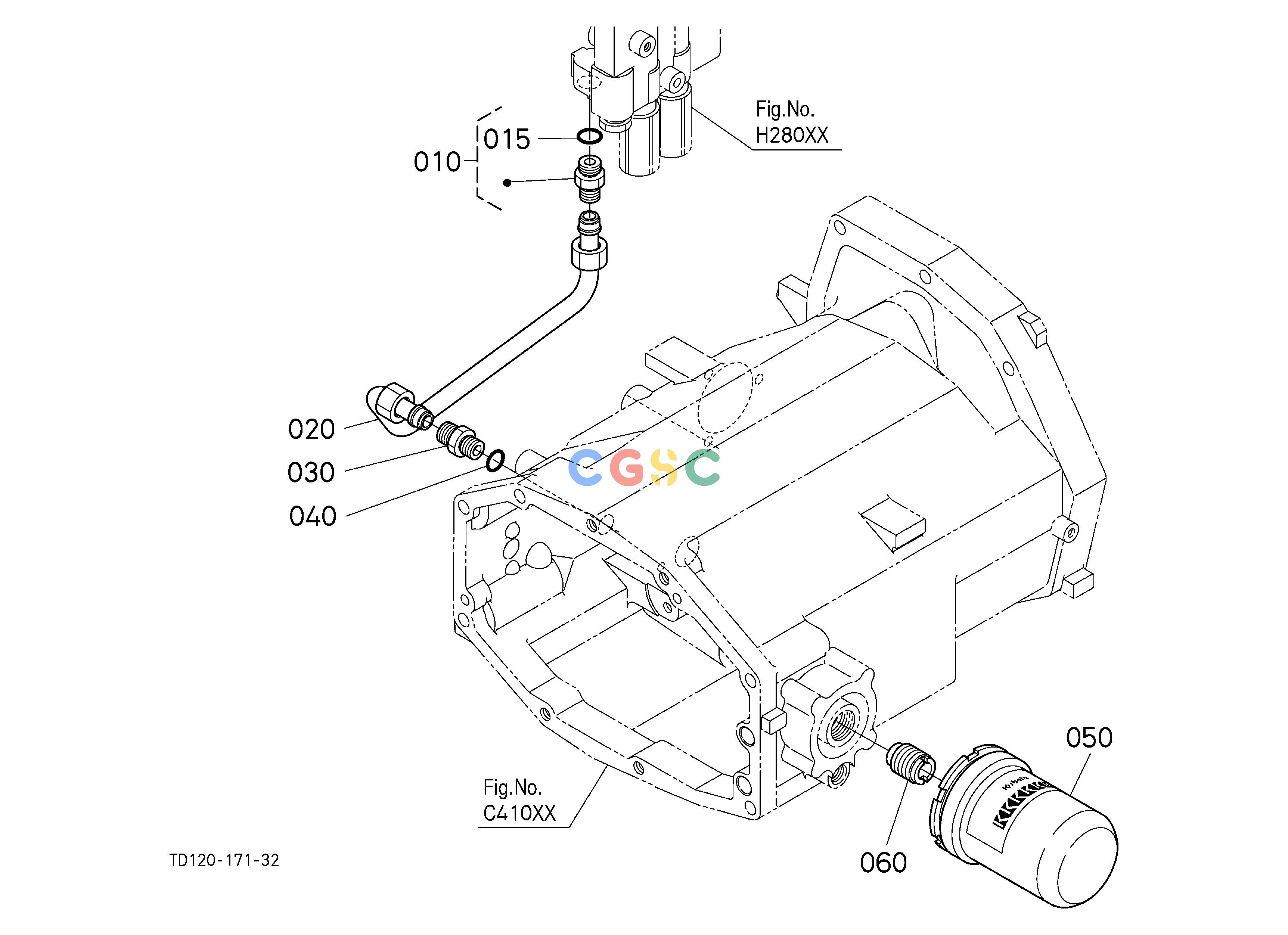

久保田零件查询H23302 HYDRAULIC OIL LINE (RETURN) [HST TYPE] HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
685 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TD17033470
|
[1] |
JOINT,PIPE
|
0.1980(lbs); 0.090
|
| 015. |
7554061820
|
[1] |
O-RING
|
0.0022(lbs); 0.001
|
| 020. |
TD17056460
|
[1] |
COMP.PIPE RETURN
|
0.7260(lbs); 0.330
|
| 020. |
TD17056462
|
[1] |
COMP.PIPE RETURN
|
0.7260(lbs); 0.330
|
| 030. |
0601251533
|
[1] |
JOINT,PIPE
|
0.1452(lbs); 0.066
|
| 040. |
0481700140
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 050. |
TA24059900
|
[1] |
FILTER,OIL
|
2.1010(lbs); 0.955
|
| 050. |
HHTA059900
|
[1] |
FILTER,OIL
|
2.0680(lbs); 0.940
|
| 060. |
5870011530
|
[1] |
ADAPTER
|
0.1386(lbs); 0.063
|
| 060. |
5870011532
|
[1] |
ADAPTER
|
0.1540(lbs); 0.070
|
