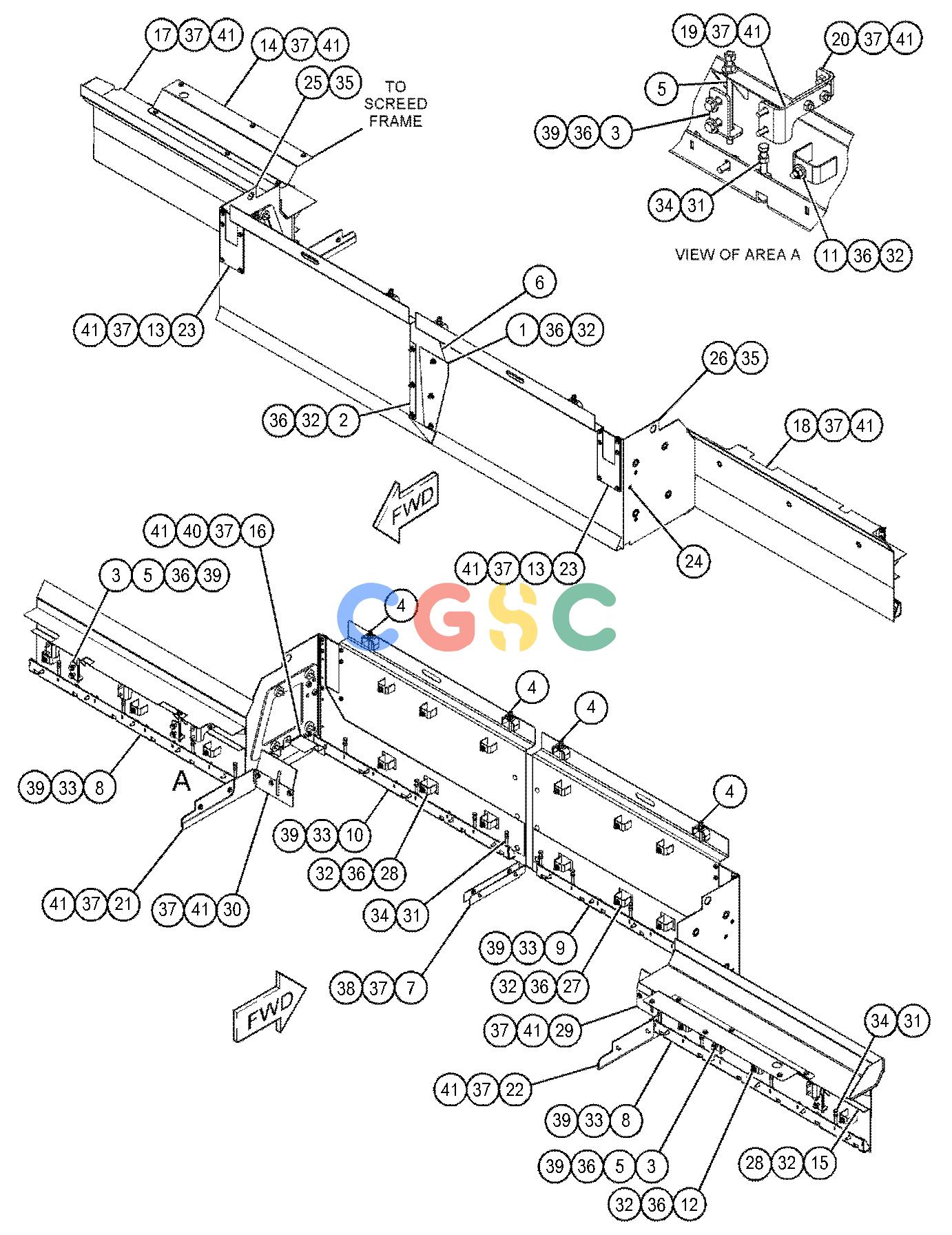

卡特零件查询（AP655F） 394-5372: DEFLECTOR GP
广数供应链运营团队, 17 02月, 2025，浏览：
529 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 415-8167 | [1] | PLATE | |
| 2. | 415-8168 | [1] | PLATE | |
| 3. | 416-8163 | [4] | BRACKET AS | |
| | | | (EACH INCLUDES) |
| | 8T-3597M | [3] | NUT-WELD(M12X1.75-THD) | |
| 4. | 416-8165 | [4] | ROD AS-ADJUSTING | |
| 5. | 416-8168 | [4] | ROD AS-ADJUSTING | |
| | | | (EACH ROD AS INCLUDES) |
| | 8T-4244M | [3] | NUT(M12X1.75-THD) | |
| | 156-4522 | [2] | WASHER-HARD(14X30X3-MM THK) | |
| 6. | 416-8177 | [1] | COVER | |
| 7. | 417-0618 | [2] | PLATE | |
| 8. | 492-9249 | [2] | BRACKET AS | |
| 9. | 492-9246 | [1] | BRACKET AS(MAIN, RH) | |
| 10. | 492-9245 | [1] | BRACKET AS(MAIN, LH) | |
| 11. | 447-1993 | [1] | DEFLECTOR AS(LH) | |
| 12. | 447-1994 | [1] | DEFLECTOR AS(RH) | |
| | | | (EACH DEFLECTOR AS INCLUDES) |
| | 112-9073M | [3] | STUD-WELD(M12X1.75X21.1-MM) | |
| 13. | 450-2501 | [2] | PLATE-COVER | |
| 14. | 450-9584 | [1] | COVER | |
| 15. | 451-1032 | [1] | COVER(RH) | |
| 16. | 451-1033 | [1] | COVER(LH) | |
| 17. | 459-9386 | [1] | COVER AS | |
| | 8T-3490M | [3] | NUT-WELD(M10X1.5-THD) | |
| 18. | 459-9388 | [1] | COVER AS | |
| 19. | 465-8916 | [6] | BRACKET AS | |
| | | | (EACH INCLUDES) |
| | 8T-3490M | [2] | NUT-WELD(M10X1.5-THD) | |
| 20. | 465-8917 | [6] | BRACKET AS | |
| | | | (EACH INCLUDES) |
| | 8T-3490M | [1] | NUT-WELD(M10X1.5-THD) | |
| 21. | 467-4790 | [1] | COVER AS(LEFT) | |
| 22. | 467-4791 | [1] | COVER AS(RIGHT) | |
| 23. | 474-1030 | [2] | COVER-RUBBER | |
| 24. | 479-6661M | [6] | SETSCREW(M16X2X30-MM) | |
| 25. | 482-2022 | [1] | PLATE AS(LH) | |
| 26. | 482-2023 | [1] | PLATE AS(RH) | |
| | | | (EACH PLATE AS INCLUDES) |
| | 355-8941M | [3] | NUT-WELD(M16X2-THD) | |
| 27. | 496-9963 | [1] | DEFLECTOR AS(MAIN, RH) | |
| 28. | 496-9964 | [1] | DEFLECTOR AS(MAIN, LH) | |
| | | | (EACH DEFLECTOR AS INCLUDES) |
| | 8T-3490M | [6] | NUT-WELD(M10X1.5-THD) | |
| | 112-9073M | [9] | STUD-WELD(M12X1.75X21.1-MM) | |
| 29. | 486-8488 | [1] | COVER(RH) | |
| 30. | 486-8489 | [1] | COVER(LH) | |
| 31. | 7Y-7992M | [16] | BOLT(M12X1.75X75-MM) | |
| 32. | 129-3180M | [24] | LOCKNUT(M12X1.75-THD) | |
| 33. | 198-4778 | [20] | WASHER-HARD(13.5X30X12-MM THK) | |
| 34. | 329-3356M | [16] | NUT(M12X1.75-THD) | |
| 35. | 342-9917M | [8] | BOLT-FLANGE HEAD(M16X2X40-MM) | |
| 36. | 5P-1076 | [32] | WASHER-HARD(13.5X30X4-MM THK) | |
| 37. | 7X-7729 | [66] | WASHER(11X25X3-MM THK) | |
| 38. | 8T-4137M | [4] | BOLT(M10X1.5X20-MM) | |
| 39. | 8T-4183M | [28] | BOLT(M12X1.75X40-MM) | |
| 40. | 8T-4191M | [2] | BOLT(M10X1.5X16-MM) | |
| 41. | 8T-4195M | [60] | BOLT(M10X1.5X30-MM) | |
| | M | | METRIC PART |
