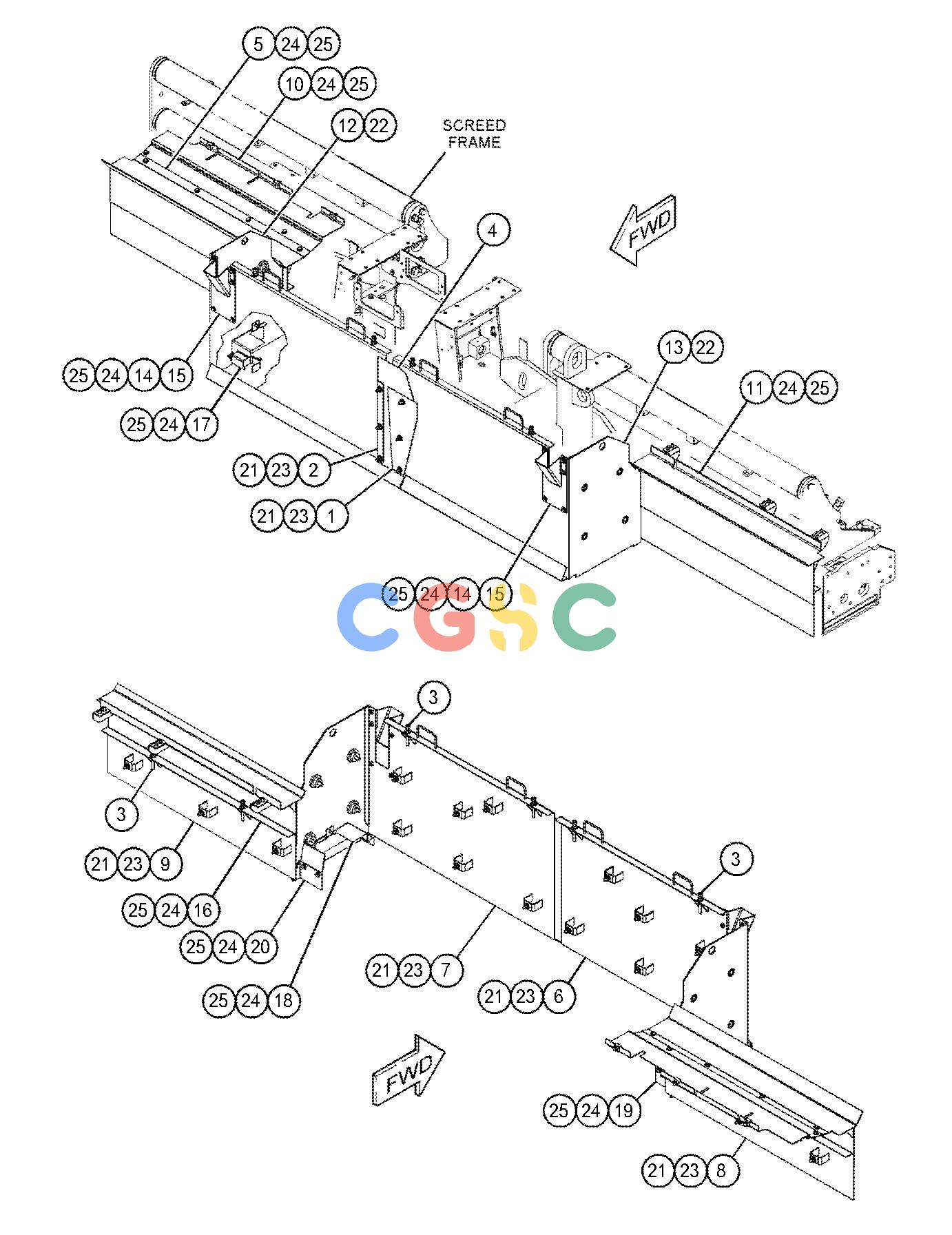

卡特零件查询（AP655F） 428-4881: DEFLECTOR GP
广数供应链运营团队, 17 02月, 2025，浏览：
684 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 415-8167 | [1] | PLATE | |
| 2. | 415-8168 | [1] | PLATE | |
| 3. | 416-8165 | [8] | ROD AS-ADJUSTING | |
| | | | (EACH INCLUDES) |
| | 8T-4244M | [3] | NUT(M12X1.75-THD) | |
| | 156-4522 | [2] | WASHER-HARD(14X30X3-MM THK) | |
| 4. | 416-8177 | [1] | COVER | |
| 5. | 436-0180 | [1] | COVER AS | |
| 6. | 439-2744 | [1] | DEFLECTOR AS | |
| 7. | 439-2745 | [1] | DEFLECTOR AS | |
| | | | (EACH DEFLECTOR AS INCLUDES) |
| | 8T-3490M | [6] | NUT-WELD(M10X1.5-THD) | |
| | 112-9073M | [9] | STUD-WELD(M12X1.75X21.1-MM) | |
| 8. | 439-2746 | [1] | DEFLECTOR AS | |
| 9. | 439-2747 | [1] | DEFLECTOR AS | |
| | | | (EACH DEFLECTOR AS INCLUDES) |
| | 112-9073M | [3] | STUD-WELD(M12X1.75X21.1-MM) | |
| 10. | 439-2748 | [1] | COVER AS | |
| | 8T-3490M | [4] | NUT-WELD(M10X1.5-THD) | |
| | 8X-5147M | [3] | BLOCK(M10X1.5-MM) | |
| 11. | 439-2749 | [1] | COVER AS | |
| 12. | 439-2750 | [1] | PLATE AS(RH) | |
| 13. | 439-2751 | [1] | PLATE AS(LH) | |
| 14. | 447-6140 | [2] | COVER | |
| 15. | 450-2501 | [2] | PLATE-COVER | |
| 16. | 452-0320 | [3] | BRACKET AS | |
| | | | (EACH INCLUDES) |
| | 8T-3490M | [1] | NUT-WELD(M10X1.5-THD) | |
| 17. | 452-3381 | [1] | COVER(RH) | |
| 18. | 452-3382 | [1] | COVER(LH) | |
| 19. | 452-3383 | [1] | COVER(RH) | |
| 20. | 452-3384 | [1] | COVER(LH) | |
| 21. | 129-3180M | [24] | LOCKNUT(M12X1.75-THD) | |
| 22. | 342-9917M | [8] | BOLT-FLANGE HEAD(M16X2X40-MM) | |
| 23. | 5P-1076 | [24] | WASHER-HARD(13.5X30X4-MM THK) | |
| 24. | 7X-7729 | [38] | WASHER(11X25X3-MM THK) | |
| 25. | 8T-4136M | [38] | BOLT(M10X1.5X25-MM) | |
| | M | | METRIC PART |
