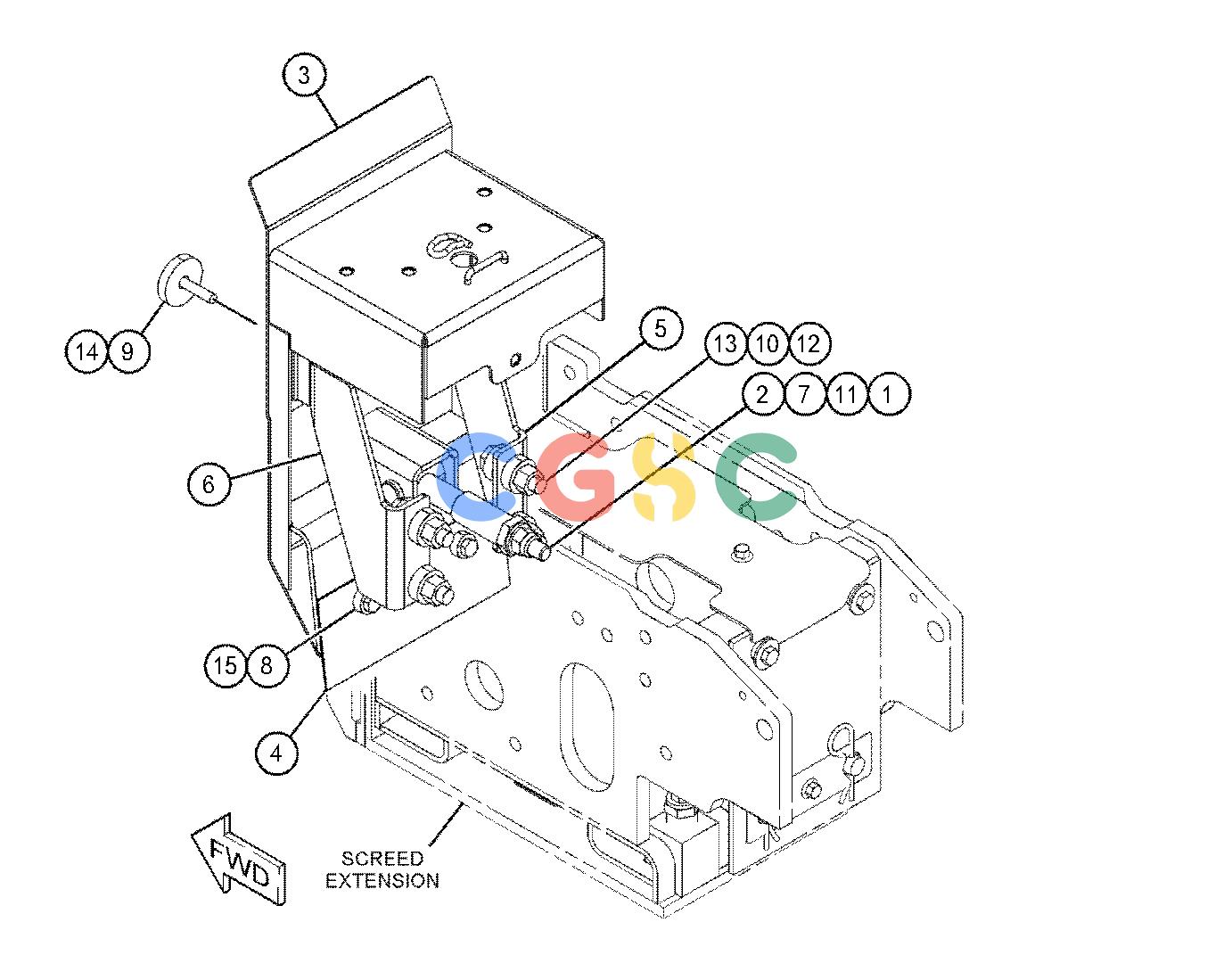

卡特零件查询（AP655F） 464-2746: DEFLECTOR GP
广数供应链运营团队, 17 02月, 2025，浏览：
248 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 422-4637M | [1] | NUT(M30X2-THD) | |
| 2. | 370-3808 | [1] | ROD AS-PULL | |
| 3. | | [1] | DEFLECTOR AS |
| | 8T-3490M | [7] | NUT-WELD(M10X1.5-THD) | |
| 4. | | [1] | BLADE |
| 5. | 464-7438 | [1] | PLATE AS | |
| 6. | 464-7439 | [1] | PLATE AS | |
| | | | (EACH PLATE AS INCLUDES) |
| | 8T-3490M | [1] | NUT-WELD(M10X1.5-THD) | |
| 7. | 176-5311M | [1] | LOCKNUT(M16X2-THD) | |
| 8. | 198-4777 | [2] | WASHER-HARD(11X25X10-MM THK) | |
| 9. | 1B-1067 | [2] | WASHER(13.5X50.8X11.1-MM THK) | |
| 10. | 267-8821 | [8] | WASHER(17X36X12-MM THK) | |
| 11. | 8T-4122 | [1] | WASHER-HARD(17X32X3.5-MM THK) | |
| 12. | 8T-4132M | [4] | NUT(M16X2-THD) | |
| 13. | 8T-4140M | [4] | BOLT(M16X2X60-MM) | |
| 14. | 8T-4185M | [2] | BOLT(M10X1.5X50-MM) | |
| 15. | 8T-4195M | [2] | BOLT(M10X1.5X30-MM) | |
| | M | | METRIC PART |
