卡特零件查询（AP655F） 439-3455: GATE GP-END
广数供应链运营团队, 17 02月, 2025，浏览：
202 次

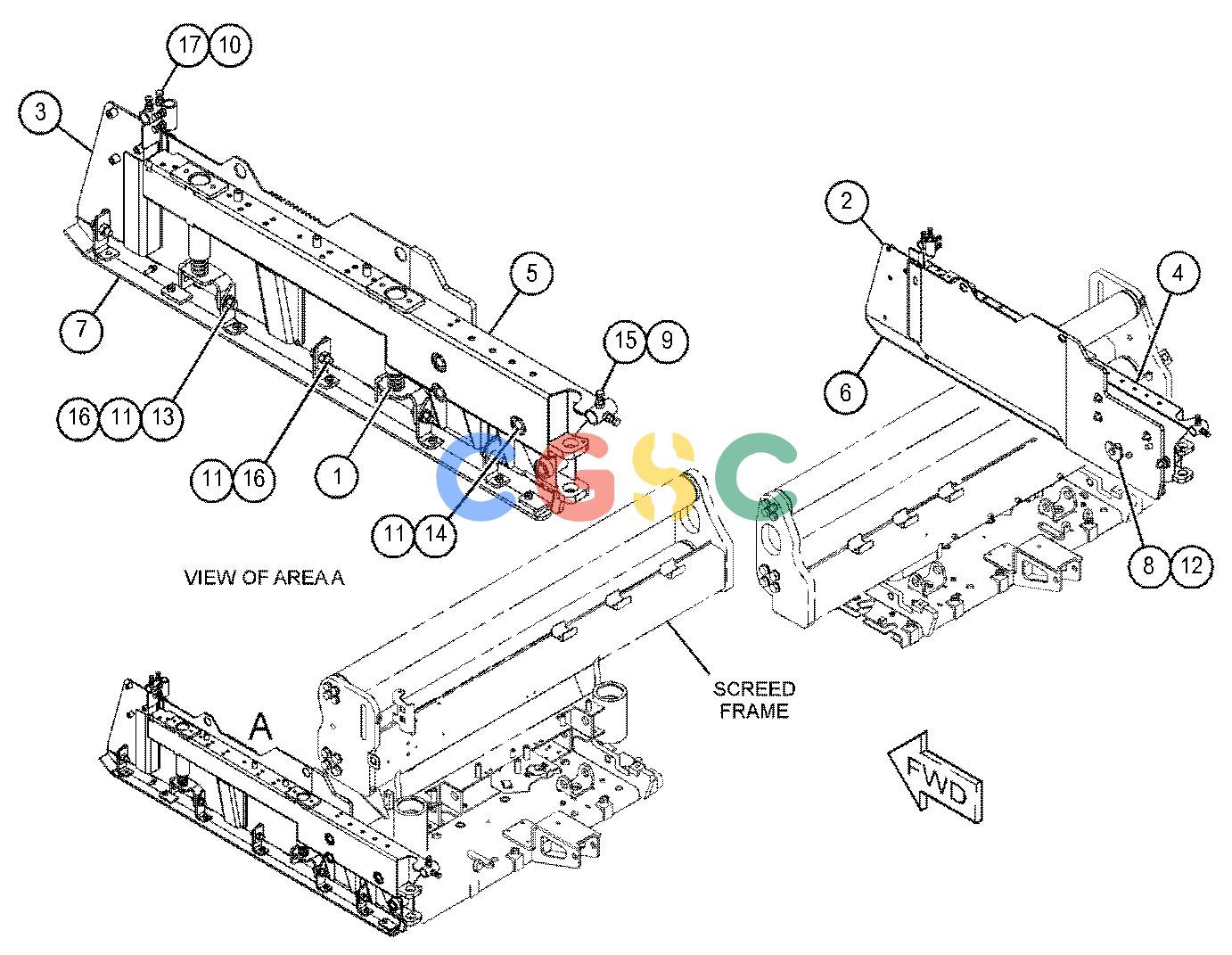

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 258-0735 | [4] | SPRING | |
| 2. | 433-1494 | [1] | GATE AS(RH) | |
| 3. | 433-1495 | [1] | GATE AS(LH) | |
| | | | (EACH GATE AS INCLUDES) |
| | 9R-2613M | [3] | BOSS-WELD(M10X1.5X25-MM) | |
| | 355-8941M | [3] | NUT-WELD(M16X2-THD) | |
| 4. | 479-8145 | [1] | ARM AS(RH) | |
| 5. | 479-8146 | [1] | ARM AS(LH) | |
| | | | (EACH ARM AS INCLUDES) |
| | 7T-1099 | [1] | LINK | |
| | 8T-3490M | [13] | NUT-WELD(M10X1.5-THD) | |
| | 8T-3597M | [6] | NUT-WELD(M12X1.75-THD) | |
| | 8T-3612M | [6] | NUT-WELD(M8X1.25-THD) | |
| | 9R-2613M | [3] | BOSS-WELD(M10X1.5X25-MM) | |
| | 178-8505 | [1] | PLATE-WELD | |
| | 110-2023M | [1] | STUD-WELD(M10X1.5X25-MM) | |
| 6. | 469-5596 | [1] | SHOE AS(RH) | |
| 7. | 469-5597 | [1] | SHOE AS(LH) | |
| | | | (EACH SHOE AS INCLUDES) |
| | 8T-3490M | [6] | NUT-WELD(M10X1.5-THD) | |
| 8. | 473-4002 | [2] | PLATE | |
| 9. | 329-3356M | [4] | NUT(M12X1.75-THD) | |
| 10. | 344-5675M | [8] | NUT(M10X1.5-THD) | |
| 11. | 7X-0515 | [22] | WASHER-HARD(17X35X5-MM THK) | |
| 12. | 7X-2553M | [2] | BOLT(M16X2X40-MM) | |
| 13. | 8T-4132M | [4] | NUT(M16X2-THD) | |
| 14. | 8T-4173M | [8] | BOLT(M16X2X110-MM) | |
| 15. | 8T-4183M | [4] | BOLT(M12X1.75X40-MM) | |
| 16. | 8T-4193M | [10] | BOLT(M16X2X50-MM) | |
| 17. | 8T-4196M | [8] | BOLT(M10X1.5X35-MM) | |
| | M | | METRIC PART |
