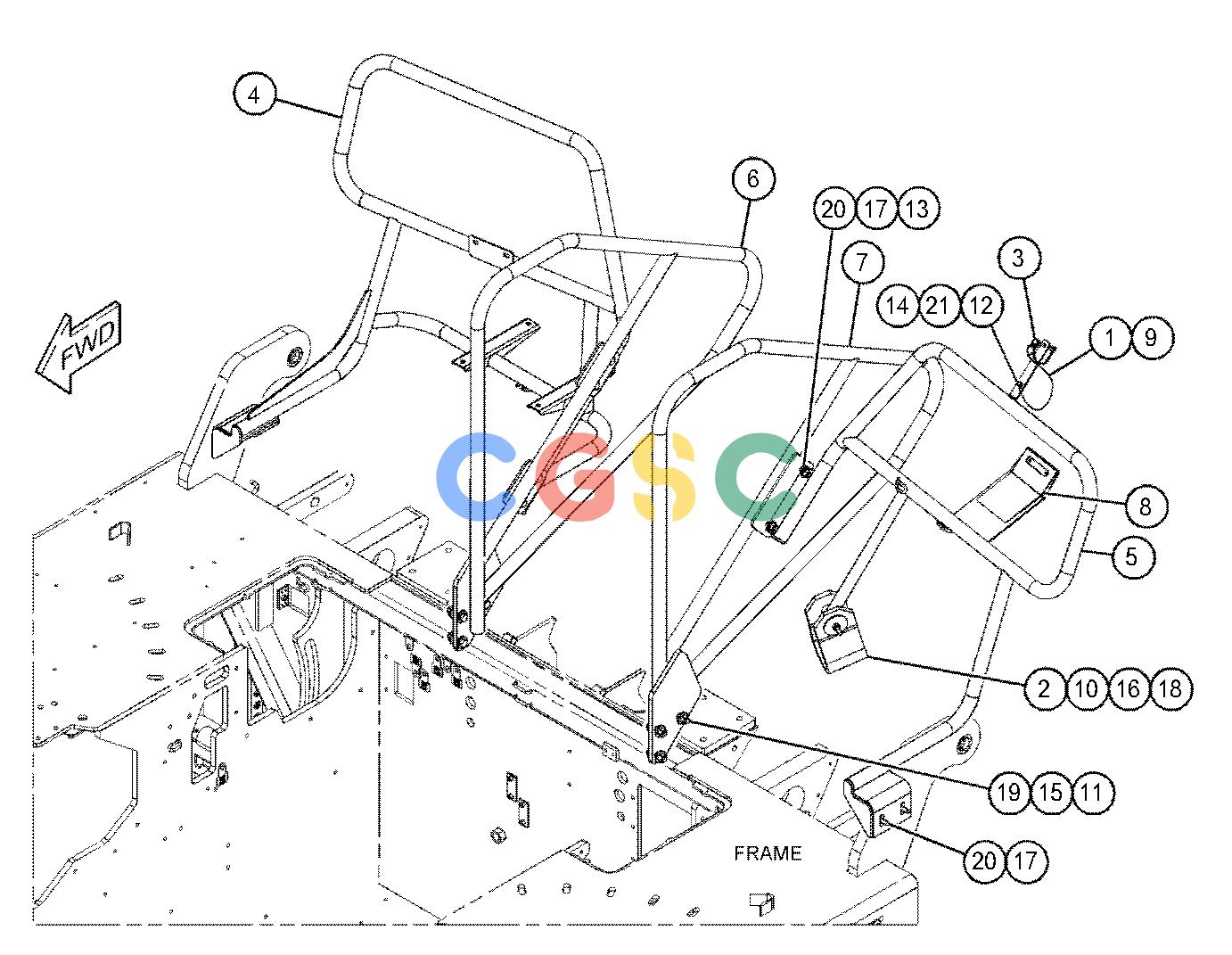

卡特零件查询（AP655F） 424-9177: HANDRAIL GP
广数供应链运营团队, 17 02月, 2025，浏览：
689 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 5P-7958 | [1] | SLEEVE-CABLE SPLICE | |
| 2. | 217-7699 | [1] | STRIP-RUBBER | |
| 3. | 232-4810 | [1] | PIN | |
| 4. | 434-0032 | [1] | HANDRAIL AS | |
| | 7T-1099 | [1] | LINK | |
| 5. | 434-0035 | [1] | HANDRAIL AS | |
| | 7T-1099 | [3] | LINK | |
| 6. | 441-9352 | [1] | HANDRAIL AS | |
| 7. | 441-9353 | [1] | HANDRAIL AS | |
| 8. | 448-1116 | [1] | MAT-RUBBER | |
| 9. | 5P-7957 | [1] | LANYARD | |
| 10. | 2G-8767 | [2] | WASHER(10.5X60X3-MM THK) | |
| 11. | 329-3356M | [6] | NUT(M12X1.75-THD) | |
| 12. | 344-5673M | [1] | NUT(M6X1-THD) | |
| 13. | 344-5675M | [6] | NUT(M10X1.5-THD) | |
| 14. | 5C-9553M | [1] | BOLT(M6X1X16-MM) | |
| 15. | 5P-1076 | [12] | WASHER-HARD(13.5X30X4-MM THK) | |
| 16. | 8T-4198M | [1] | BOLT(M10X1.5X100-MM) | |
| 17. | 7X-7729 | [16] | WASHER(11X25X3-MM THK) | |
| 18. | 8T-0389M | [1] | LOCKNUT(M10X1.5-THD) | |
| 19. | 8T-4184M | [6] | BOLT(M12X1.75X45-MM) | |
| 20. | 8T-4195M | [10] | BOLT(M10X1.5X30-MM) | |
| 21. | 9X-8256 | [2] | WASHER(6.6X12X2-MM THK) | |
| | M | | METRIC PART |
