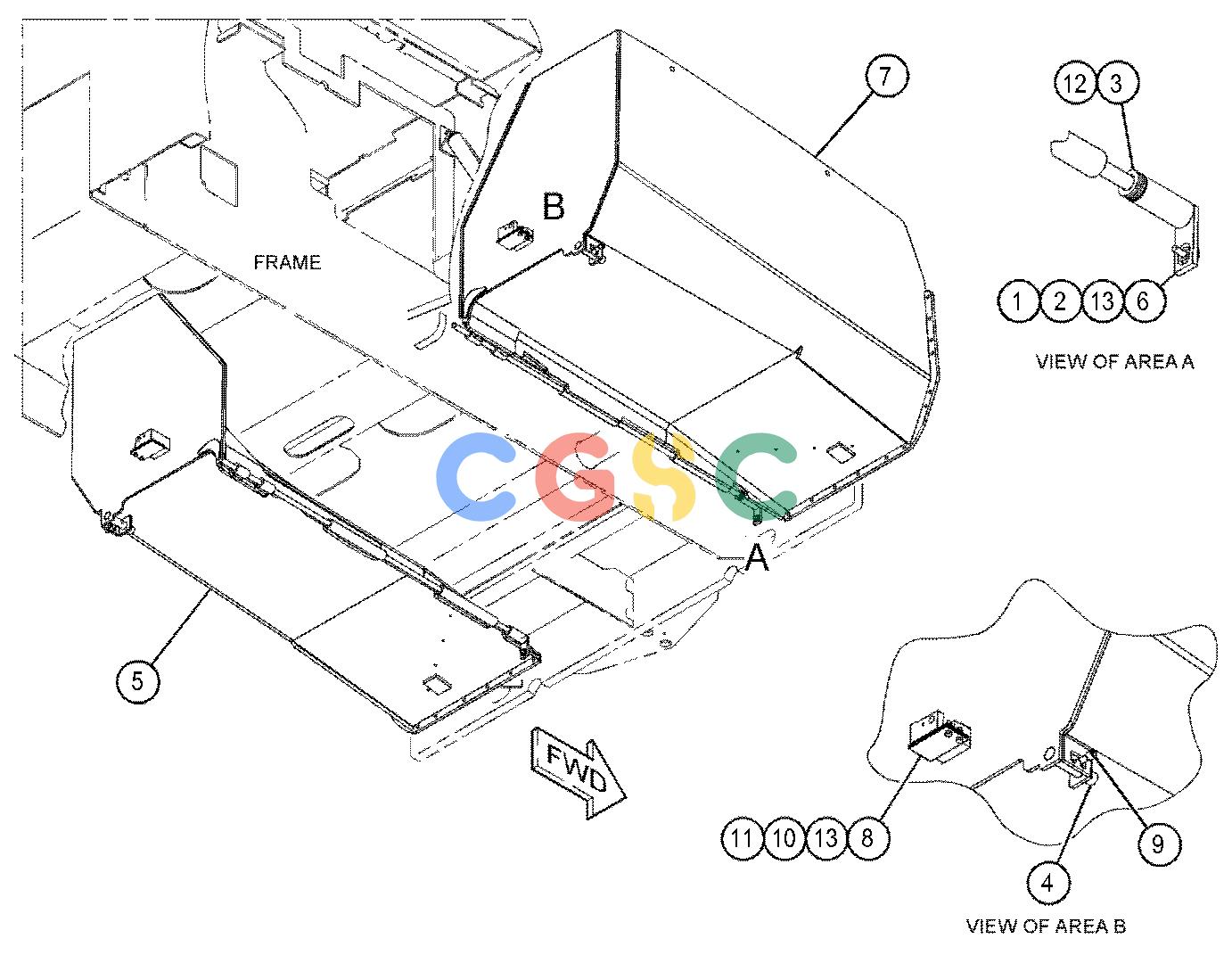

卡特零件查询（AP655F） 396-9809: HOPPER GP
广数供应链运营团队, 17 02月, 2025，浏览：
640 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 7W-9738 | [2] | WASHER(10.5X38X1.6-MM THK) | |
| 2. | 106-1242 | [2] | SPACER(13.8X23.75X12.7-MM THK) | |
| 3. | 185-4025B | [2] | SHIM(1.2-MM THK) | |
| 4. | 270-3645 | [2] | BAR | |
| 5. | 380-9688 | [1] | HOPPER AS(LH) | |
| | 166-8787 | [2] | TUBE | |
| | | [1] | BAR(LH) |
| 6. | 380-9693 | [2] | PIN AS | |
| 7. | 380-9703 | [1] | HOPPER AS(RH) | |
| | 166-8787 | [2] | TUBE | |
| | 380-9671 | [1] | BAR(RH) | |
| 8. | 423-0245 | [8] | PLATE | |
| 9. | 8T-2393M | [2] | BOLT-SOCKET HEAD(M16X2X60-MM) | |
| 10. | 8T-4121 | [4] | WASHER-HARD(11X21X2.5-MM THK) | |
| 11. | 8T-4133M | [4] | NUT(M10X1.5-THD) | |
| 12. | 8T-4167 | [4] | WASHER-HARD(26X44X4-MM THK) | |
| 13. | 8T-4196M | [6] | BOLT(M10X1.5X35-MM) | |
| | B | | USE AS REQUIRED |
| | M | | METRIC PART |
