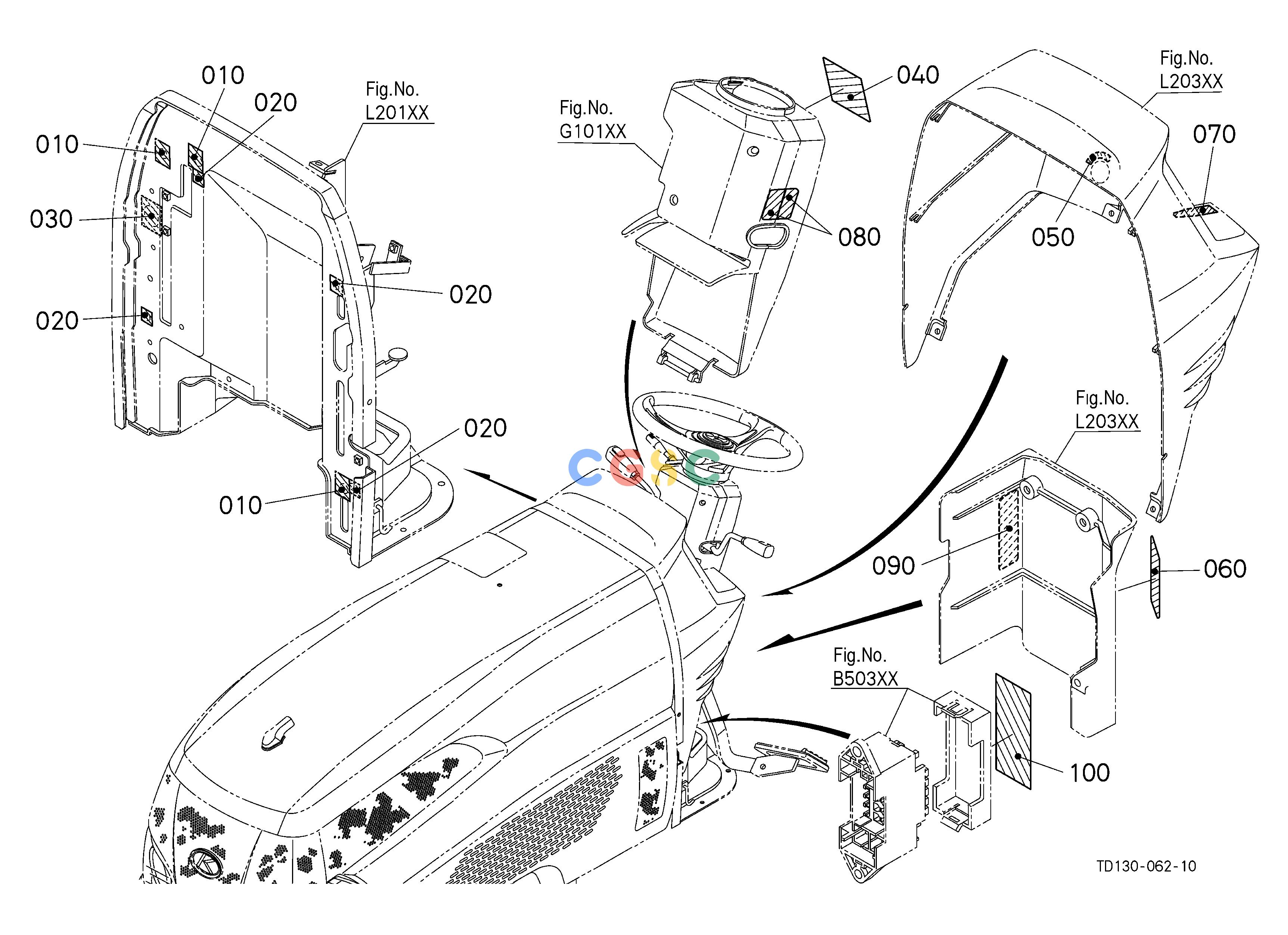

久保田零件查询R11001 LABEL 2 (PANEL) [EXCEPT HST TYPE] LABELSEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
878 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3455075420
|
[3] |
LABEL,FENDER HOLE
|
0.0022(lbs); 0.001
|
| 020. |
3455075410
|
[4] |
LABEL,HOLE
|
0.0022(lbs); 0.001
|
| 030. |
TD06043270
|
[1] |
LABEL,PANEL FRAME
|
0.0022(lbs); 0.001
|
| 040. |
TA04049390
|
[1] |
LABEL,SHUTTLE
|
0.0022(lbs); 0.001
|
| 050. |
TD06049360
|
[1] |
MARK,MAIN SWITCH
|
0.0022(lbs); 0.001
|
| 060. |
TD06049450
|
[1] |
MARK,TILT
|
0.0022(lbs); 0.001
|
| 070. |
T106049290
|
[1] |
MARK,SHUTTLE
|
0.0022(lbs); 0.001
|
| 080. |
TA04049540
|
[1] |
MARK,NEUTRAL
|
0.0022(lbs); 0.001
|
| 090. |
TA04049460
|
[1] |
LABEL,PARKING
|
0.0022(lbs); 0.001
|
| 100. |
TD14330430
|
[1] |
LABEL,FUSE
|
0.0000(lbs); 0.000
|
| 100. |
TD17353970
|
[1] |
LABEL,FUSE
|
0.0022(lbs); 0.001
|
