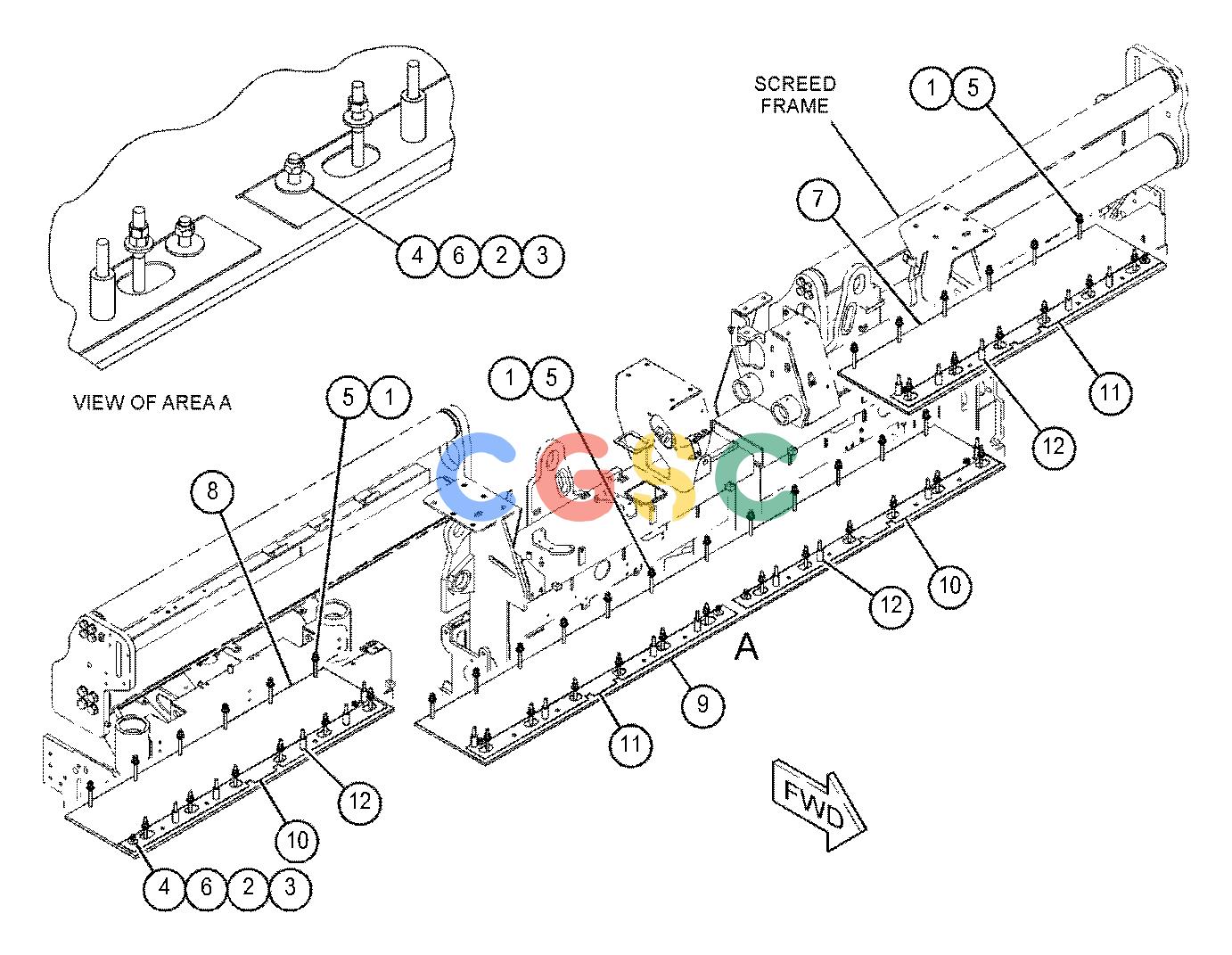

卡特零件查询（AP655F） 489-7483: PLATE GP-SCREED
广数供应链运营团队, 17 02月, 2025，浏览：
756 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 5P-1076 | [48] | WASHER-HARD(13.5X30X4-MM THK) | |
| 2. | 6V-7687M | [4] | LOCKNUT(M12X1.75-THD) | |
| 3. | 7X-0582 | [4] | WASHER-HARD(20X44.5X6-MM THK) | |
| 4. | 8T-4821 | [4] | WASHER(13.5X40X3-MM THK) | |
| 5. | 329-3356M | [96] | NUT(M12X1.75-THD) | |
| 6. | 468-7390 | [4] | SPRING | |
| 7. | 513-8959 | [1] | PLATE AS(LH) | |
| 8. | 513-8961 | [1] | PLATE AS(RH) | |
| 9. | 513-8962 | [1] | PLATE AS-MAIN | |
| | | | (EACH PLATE AS INCLUDES) |
| | 098-5747M | [1] | NUT(M16X2-THD) | |
| 10. | 553-0224 | [2] | PLATE-CLAMP | |
| 11. | 553-0229 | [2] | PLATE-CLAMP | |
| 12. | 553-1180 | [18] | TUBE | |
| | M | | METRIC PART |
