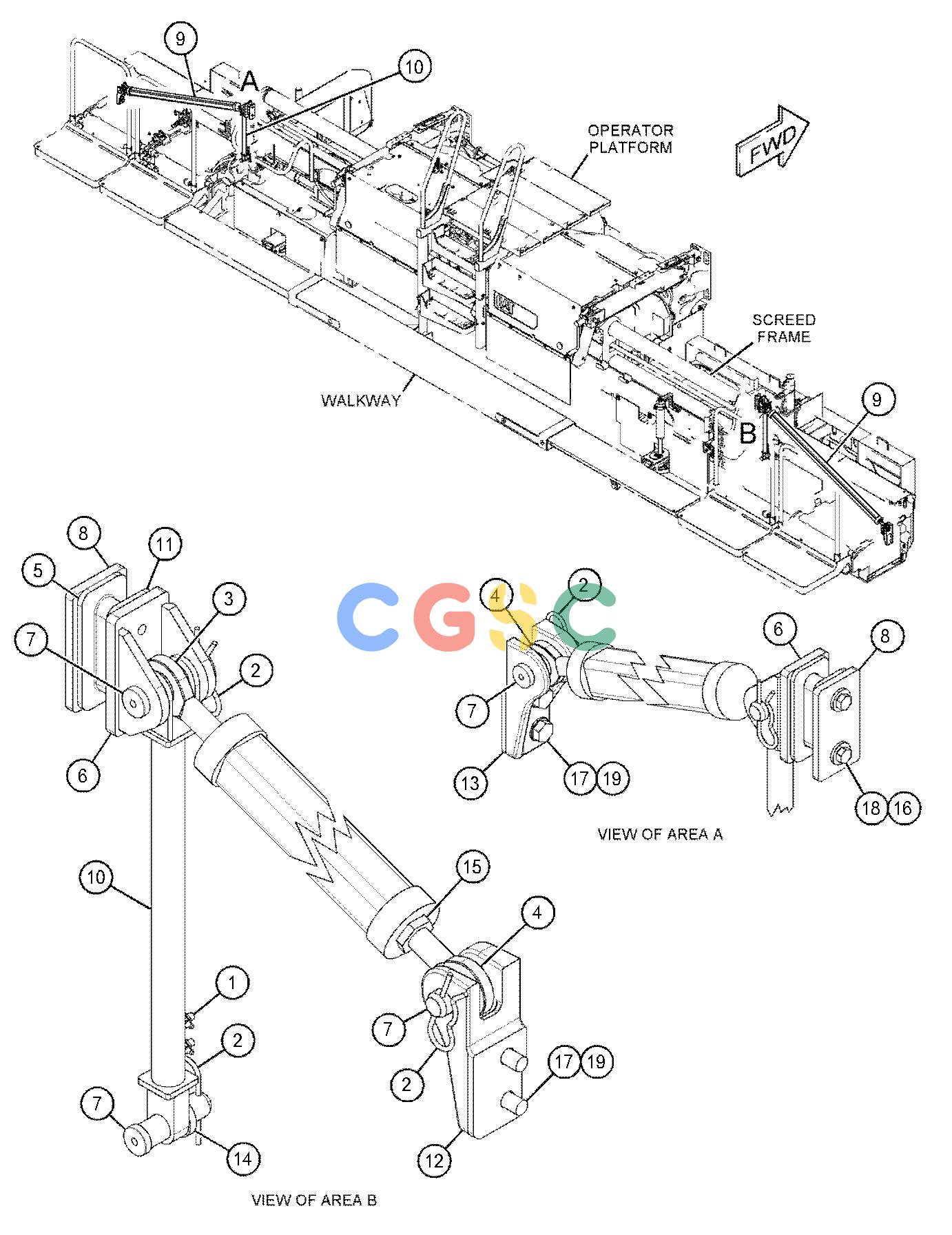

卡特零件查询（AP655F） 417-0676: SUPPORT GP-FRAME
广数供应链运营团队, 17 02月, 2025，浏览：
225 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3B-8488 | [4] | FITTING-GREASE(1/8-27 PTF) | |
| 2. | 5P-8837 | [6] | LOCK PIN | |
| 3. | 393-0624 | [2] | BALL JOINT(LH) | |
| 4. | 393-0625 | [2] | BALL JOINT(RH) | |
| 5. | 393-0626 | [2] | BLOCK | |
| 6. | 396-4277 | [2] | BRACKET AS | |
| 7. | 398-9707 | [6] | PIN | |
| 8. | 399-7209 | [2] | PLATE | |
| 9. | 417-0677 | [2] | TUBE AS | |
| 10. | 425-4570 | [2] | SUPPORT AS | |
| 11. | 425-4577 | [2] | PAD-WEAR | |
| 12. | 426-0060 | [1] | BRACKET | |
| 13. | 426-0061 | [1] | BRACKET | |
| 14. | 126-8928 | [2] | WASHER-HARD(26X40X8-MM THK) | |
| 15. | 287-2499M | [2] | NUT(M24X2-THD) | |
| 16. | 5P-1076 | [4] | WASHER-HARD(13.5X30X4-MM THK) | |
| 17. | 7X-2553M | [4] | BOLT(M16X2X40-MM) | |
| 18. | 8T-4648M | [4] | BOLT(M12X1.75X70-MM) | |
| 19. | 9X-8257 | [4] | WASHER(17.5X30X3.5-MM THK) | |
| | M | | METRIC PART |
