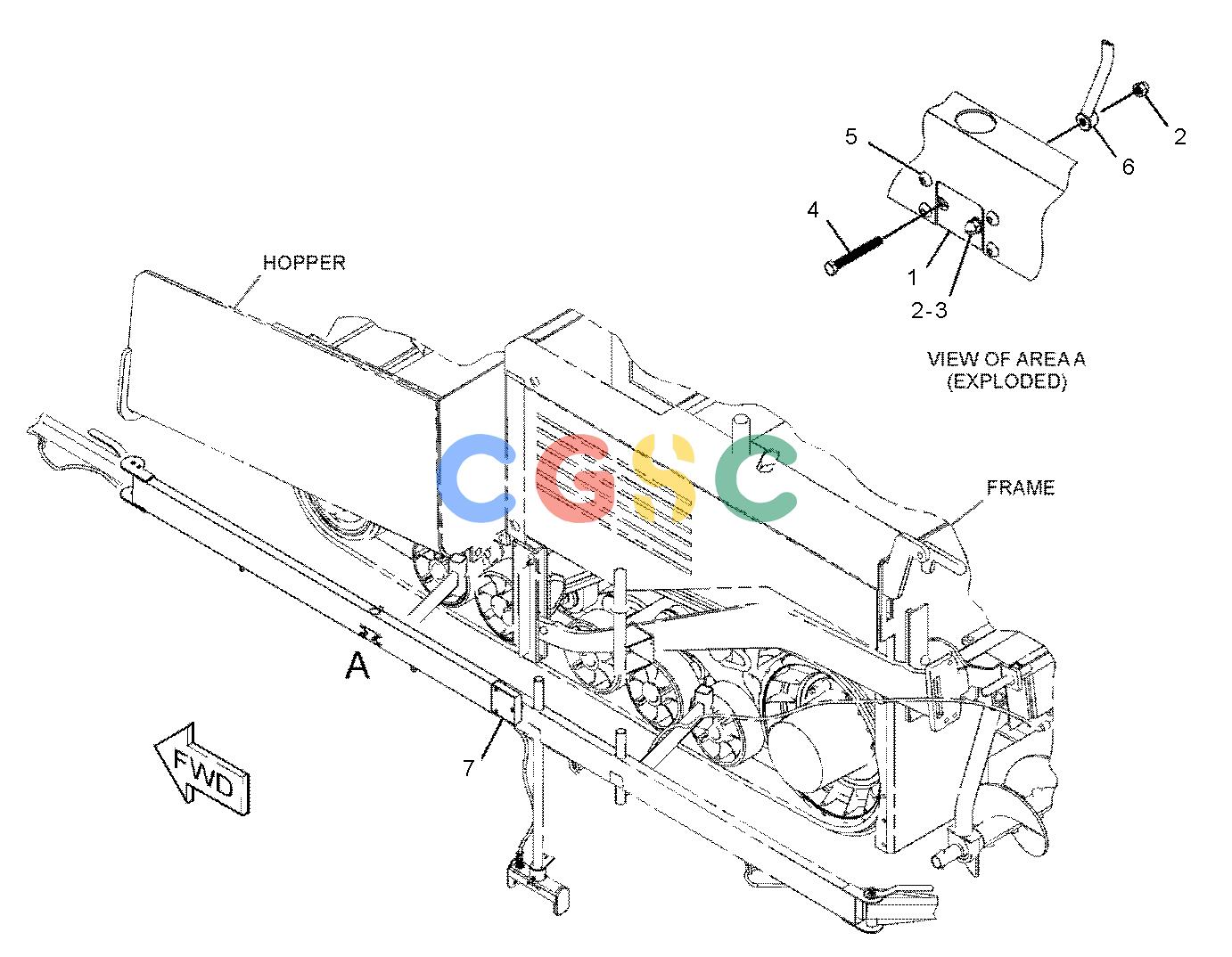

卡特零件查询（AP655F） 489-9256: TAMPER GP-SCREED
广数供应链运营团队, 17 02月, 2025，浏览：
1000 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 473-9115Y | [2] | HARNESS AS-WIRING(EXTENSION) | |
| | 477-1928Y | [2] | HARNESS AS-WIRING(EXTENSION) | |
| | 471-7065Y | [4] | HOUSING GP-ECCENTRIC WEIGHT | |
| | 479-2085Y | [2] | LINES GP-EXTENSION(SCREED) | |
| | 482-7002Y | [2] | LINES GP-EXTENSION(HYDRAULIC) | |
| | 471-2032Y | [2] | TAMPER GP-SCREED | |
| | 471-7832Y | [2] | TAMPER GP-SCREED | |
| | 8T-4137M | [32] | BOLT(M10X1.5X20-MM) | |
| | 8T-5001M | [16] | BOLT(M12X1.75X130-MM) | |
| | 342-9914M | [20] | BOLT-FLANGE HEAD(M10X1.5X25-MM) | |
| | 470-6460 | [8] | BRACKET AS | |
| | | | (EACH INCLUDES) |
| | 8T-3490M | [2] | NUT-WELD(M10X1.5-THD) | |
| | 473-6463 | [2] | COVER | |
| | 487-5622 | [2] | COVER | |
| | 472-4080 | [2] | COVER AS-PLATFORM | |
| | 474-3127 | [2] | COVER AS-PLATFORM | |
| | 470-6459 | [2] | DEFLECTOR AS | |
| | | | (EACH INCLUDES) |
| | 7T-1099 | [4] | LINK | |
| | 8T-3490M | [13] | NUT-WELD(M10X1.5-THD) | |
| | 471-6426 | [2] | DEFLECTOR AS | |
| | | | (EACH INCLUDES) |
| | 7T-1099 | [3] | LINK | |
| | 8T-3490M | [9] | NUT-WELD(M10X1.5-THD) | |
| | 242-5054 | [4] | FILM-WARNING(NO STEP) | |
| | 242-5055 | [4] | FILM-WARNING(NO STEP) | |
| | 473-9116 | [2] | HARNESS AS-SCREED | |
| | | | (EACH INCLUDES) |
| | 474-7561 | [2] | RECEPTACLE AS-CONNECTOR(28-PIN) | |
| | 474-7565 | [1] | CAP AS-CONNECTOR | |
| | 475-0301 | [2] | HARNESS AS-SCREED | |
| | | | (EACH INCLUDES) |
| | 474-7564 | [2] | RECEPTACLE AS-CONNECTOR(28-PIN) | |
| | 474-7566 | [1] | CAP AS-CONNECTOR | |
| | 475-6346 | [2] | HARNESS AS-SCREED | |
| | | | (EACH INCLUDES) |
| | 329-3734B | | TAPE-ELECTRICAL | |
| | 474-7563 | [2] | PLUG AS-CONNECTOR | |
| | 474-7566 | [1] | CAP AS-CONNECTOR | |
| | 475-6347 | [2] | HARNESS AS-SCREED | |
| | | | (EACH INCLUDES) |
| | 329-3734B | | TAPE-ELECTRICAL | |
| | 474-7564 | [2] | RECEPTACLE AS-CONNECTOR(28-PIN) | |
| | 474-7566 | [1] | CAP AS-CONNECTOR | |
| | 475-6348 | [2] | HARNESS AS-SCREED | |
| | | | (EACH INCLUDES) |
| | 474-7563 | [2] | PLUG AS-CONNECTOR | |
| | 474-7566 | [1] | CAP AS-CONNECTOR | |
| | 477-1929 | [2] | HARNESS AS-SCREED | |
| | | | (EACH INCLUDES) |
| | 474-7561 | [2] | RECEPTACLE AS-CONNECTOR(28-PIN) | |
| | 474-7565 | [1] | CAP AS-CONNECTOR | |
| | 9B-1117 | [64] | LOCKWASHER | |
| | 442-7954 | [16] | NUT-RING | |
| | 9X-6257 | [64] | SCREW-MACHINE(6-32X0.625-IN) | |
| | 474-5725 | [4] | SHAFT | |
| | 482-1339 | [2] | SHAFT | |
| | 484-1024 | [2] | SHAFT | |
| | 364-4568 | [2] | STRAP | |
| | 3S-2093 | [8] | STRAP-CABLE | |
| | 7K-1181 | [18] | STRAP-CABLE | |
| | 7X-7877E | | STRIP-EDGE(384-CM) | |
| | 7X-7729 | [32] | WASHER(11X25X3-MM THK) | |
| | 8T-4223 | [16] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| | B | | USE AS REQUIRED |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
