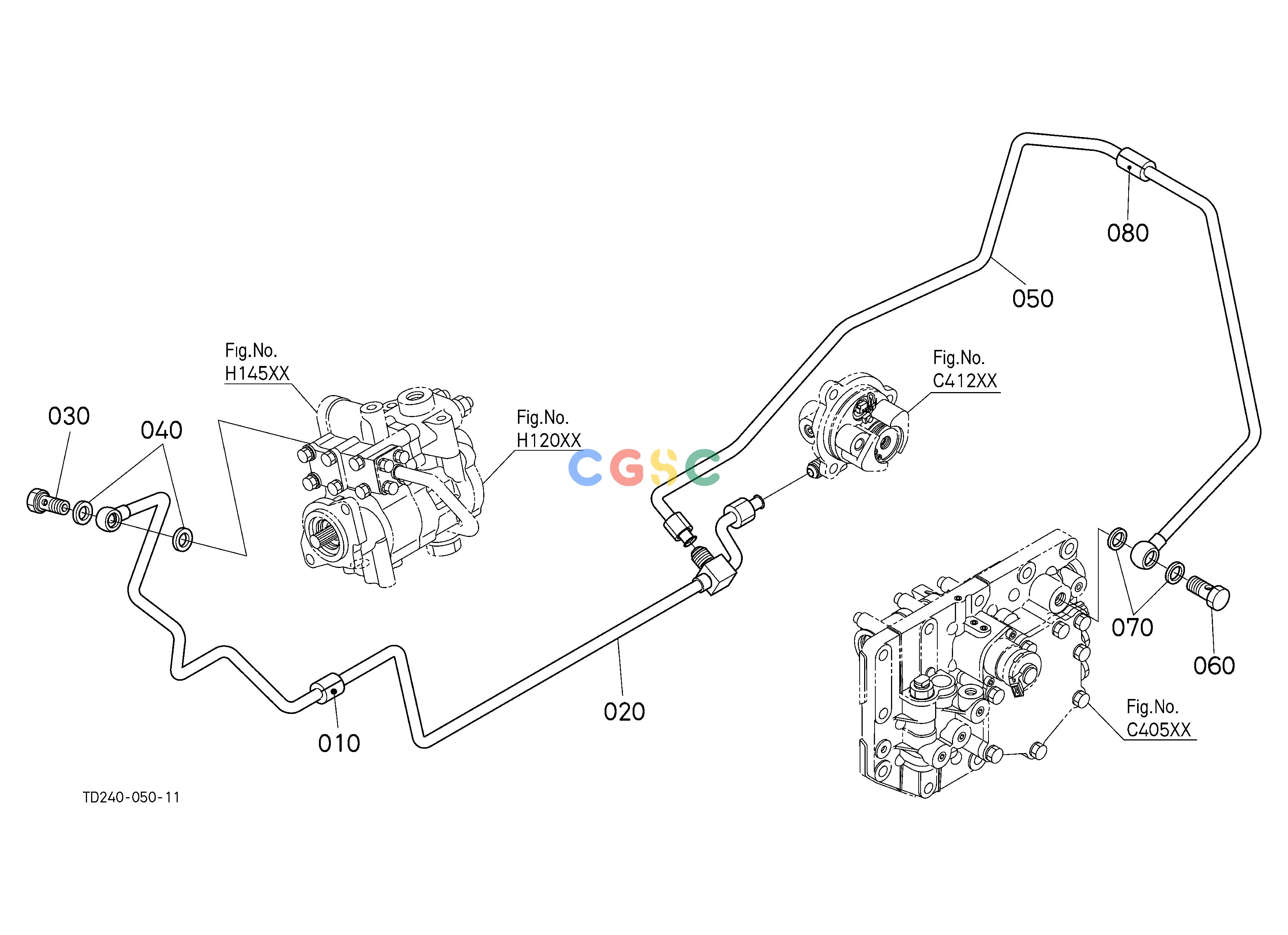

久保田零件查询H23002 PTO HYDRAULIC OIL LINE HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
201 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TD17066720
|
[1] |
TUBE,GST PIPE
|
0.0132(lbs); 0.006
|
| 020. |
TD26069952
|
[1] |
COMP.PIPE,I-PTO
|
0.5940(lbs); 0.270
|
| 030. |
3407666590
|
[1] |
BOLT,JOINT
|
0.1100(lbs); 0.050
|
| 040. |
0471400200
|
[2] |
PACKING
|
0.0044(lbs); 0.002
|
| 050. |
TD26066572
|
[1] |
COMP.PIPE,GST
|
0.6160(lbs); 0.280
|
| 060. |
3407666590
|
[1] |
BOLT,JOINT
|
0.1100(lbs); 0.050
|
| 070. |
0471400200
|
[2] |
PACKING
|
0.0044(lbs); 0.002
|
| 080. |
TD06066710
|
[1] |
TUBE,GST PIPE
|
0.0176(lbs); 0.008
|
