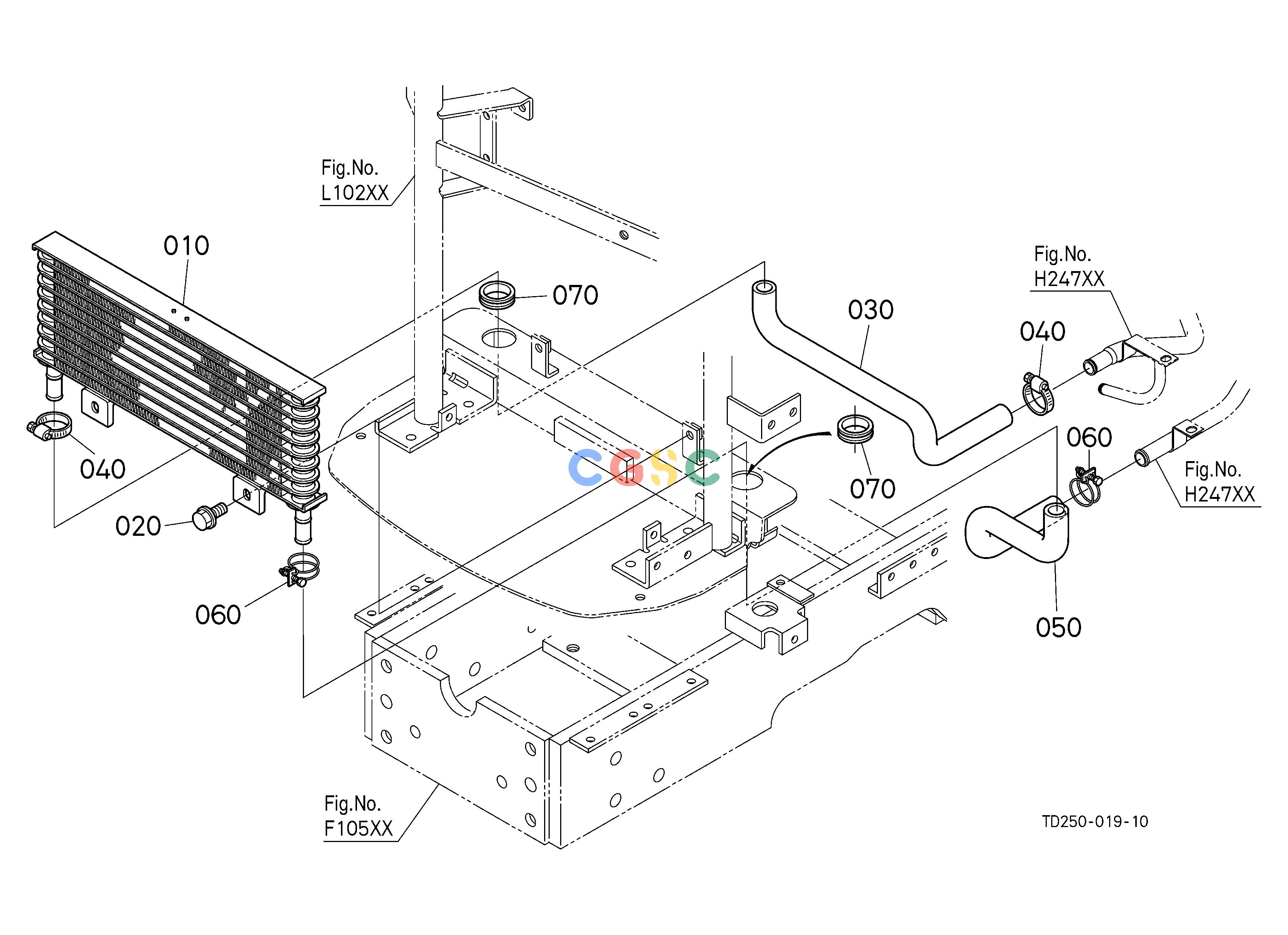

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 010. | TD14055370 | [1] | COOLER,OIL | 2.3540(lbs); 1.070 |
| 020. | 0175450816 | [2] | BOLT,FLANGE | 0.0242(lbs); 0.011 |
| 030. | TD24056170 | [1] | HOSE,O/C OUTLET | 0.2420(lbs); 0.110 |
| 040. | K756133470 | [2] | BAND,PIPE 23 | 0.0352(lbs); 0.016 |
| 050. | TD24056150 | [1] | HOSE,O/C INLET | 0.1760(lbs); 0.080 |
| 060. | 0931889024 | [2] | CLAMP,HOSE | 0.0440(lbs); 0.020 |
| 070. | EG92367680 | [2] | GROMMET | 0.0088(lbs); 0.004 |
