卡特零件查询（AP655F） 478-4972: EXTENSION GP-SCREED
广数供应链运营团队, 17 02月, 2025，浏览：
548 次

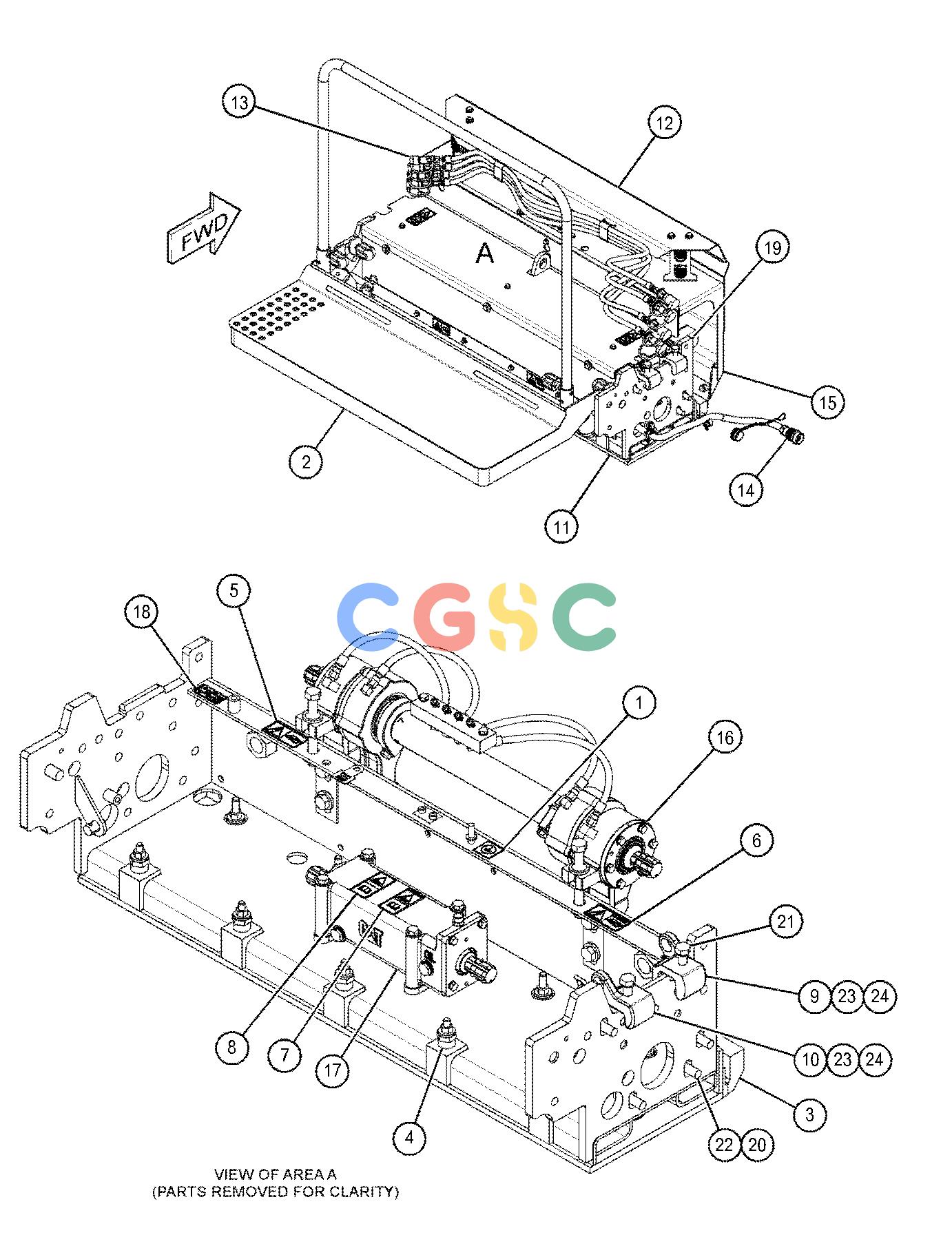

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 228-4798 | [1] | FILM-IDENTIFICATION(GROUND) | |
| 2. | 393-0646 | [1] | HOOK | |
| 3. | 422-4637M | [2] | NUT(M30X2-THD) | |
| 4. | 424-6098 | [1] | FILM-WARNING(ELECTROCUTION HAZARD, READ OMM) | |
| 5. | 424-6102 | [1] | FILM-WARNING(ELECTROCUTION HAZARD, READ OMM) | |
| 6. | 464-2742 | [1] | BAR GP-TAMPER | |
| | 8T-4189M | [2] | BOLT(M8X1.25X20-MM) | |
| | 8T-5089 | [2] | PIN-SPRING | |
| | 464-4869 | [1] | BAR-TAMPER | |
| | 464-4870 | [1] | PLATE-WEAR | |
| 7. | 464-6632 | [1] | BAR-CONNECTOR | |
| 8. | 473-9612Y | [1] | LINES GP-EXTENSION | |
| 9. | 474-4246Y | [1] | DEFLECTOR GP | |
| 10. | 477-1926Y | [1] | WIRING GP-SCREED | |
| 11. | 478-4973Y | [1] | PLATE GP-SCREED | |
| 12. | 478-4975Y | [1] | COVER GP-SCREED | |
| 13. | 479-6788 | [1] | FRAME AS | |
| 14. | 198-4781 | [5] | WASHER-HARD(22X40X10-MM THK) | |
| 15. | 7X-2554M | [4] | BOLT(M16X2X70-MM) | |
| 16. | 8T-4122 | [4] | WASHER-HARD(17X32X3.5-MM THK) | |
| 17. | 8T-4140M | [2] | BOLT(M16X2X60-MM) | |
| 18. | 8T-4193M | [5] | BOLT(M16X2X50-MM) | |
| 19. | 8T-4779M | [4] | BOLT(M16X2X35-MM) | |
| 20. | 9X-8257 | [4] | WASHER(17.5X30X3.5-MM THK) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
