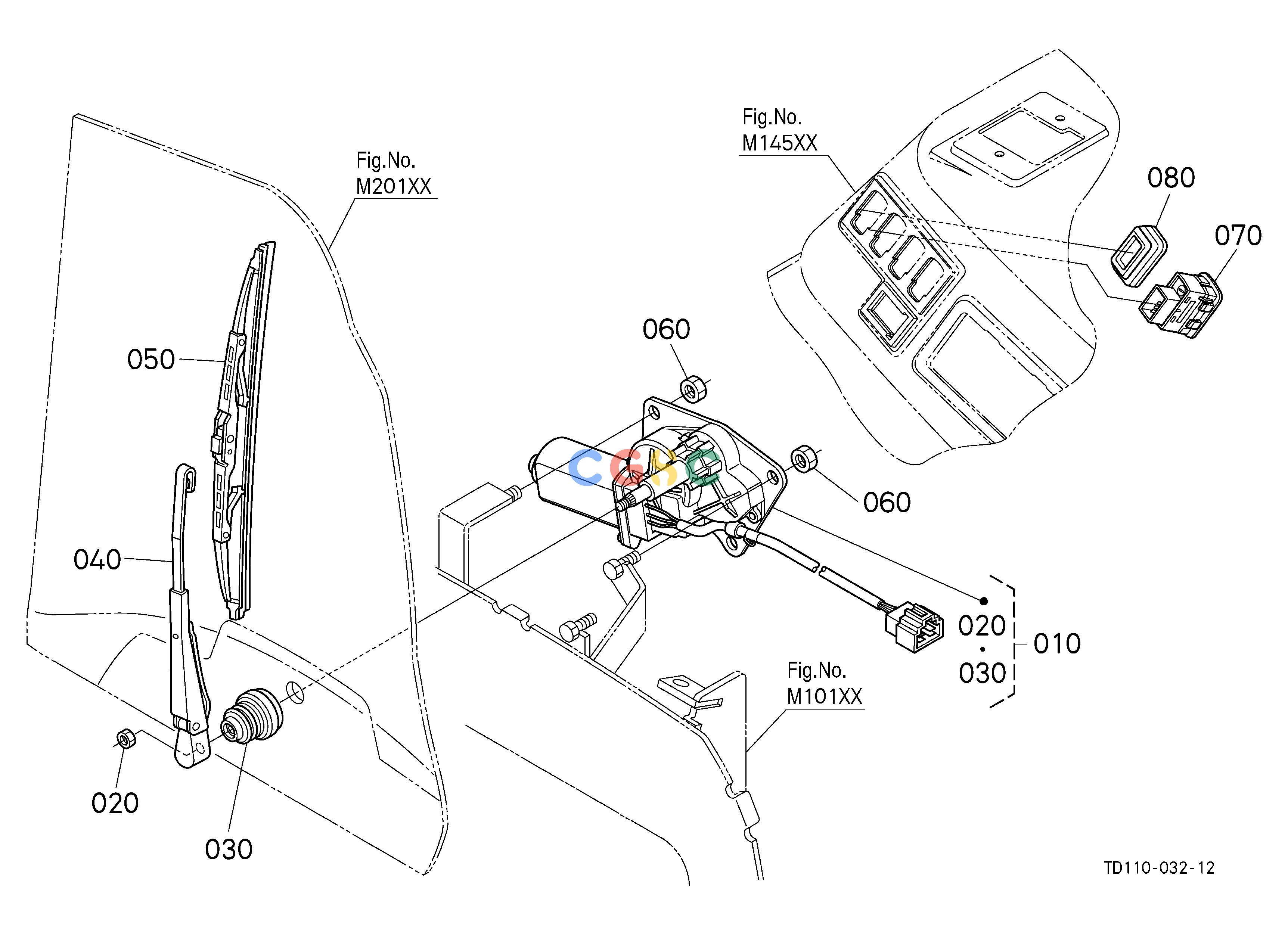

久保田零件查询B43001 WIPER [A] ELECTRICAL SYSTEMEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
665 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
T127571110
|
[1] |
MOTOR,FRONT WIPER
|
1.8810(lbs); 0.855
|
| 020. |
0201450060
|
[1] |
NUT
|
0.0044(lbs); 0.002
|
| 030. |
T127571120
|
[1] |
GASKET,MOTOR
|
0.0220(lbs); 0.010
|
| 040. |
T106571120
|
[1] |
ASSY ARM,WIPER
|
0.3080(lbs); 0.140
|
| 050. |
T115571130
|
[1] |
ASSY BLADE,WIPER
|
0.2420(lbs); 0.110
|
| 060. |
0211450080
|
[3] |
NUT
|
0.0110(lbs); 0.005
|
| 070. |
T106575380
|
[1] |
SWITCH,WIPER FRONT
|
0.0462(lbs); 0.021
|
| 080. |
TA04071380
|
[1] |
COVER,SWITCH
|
0.0198(lbs); 0.009
|
