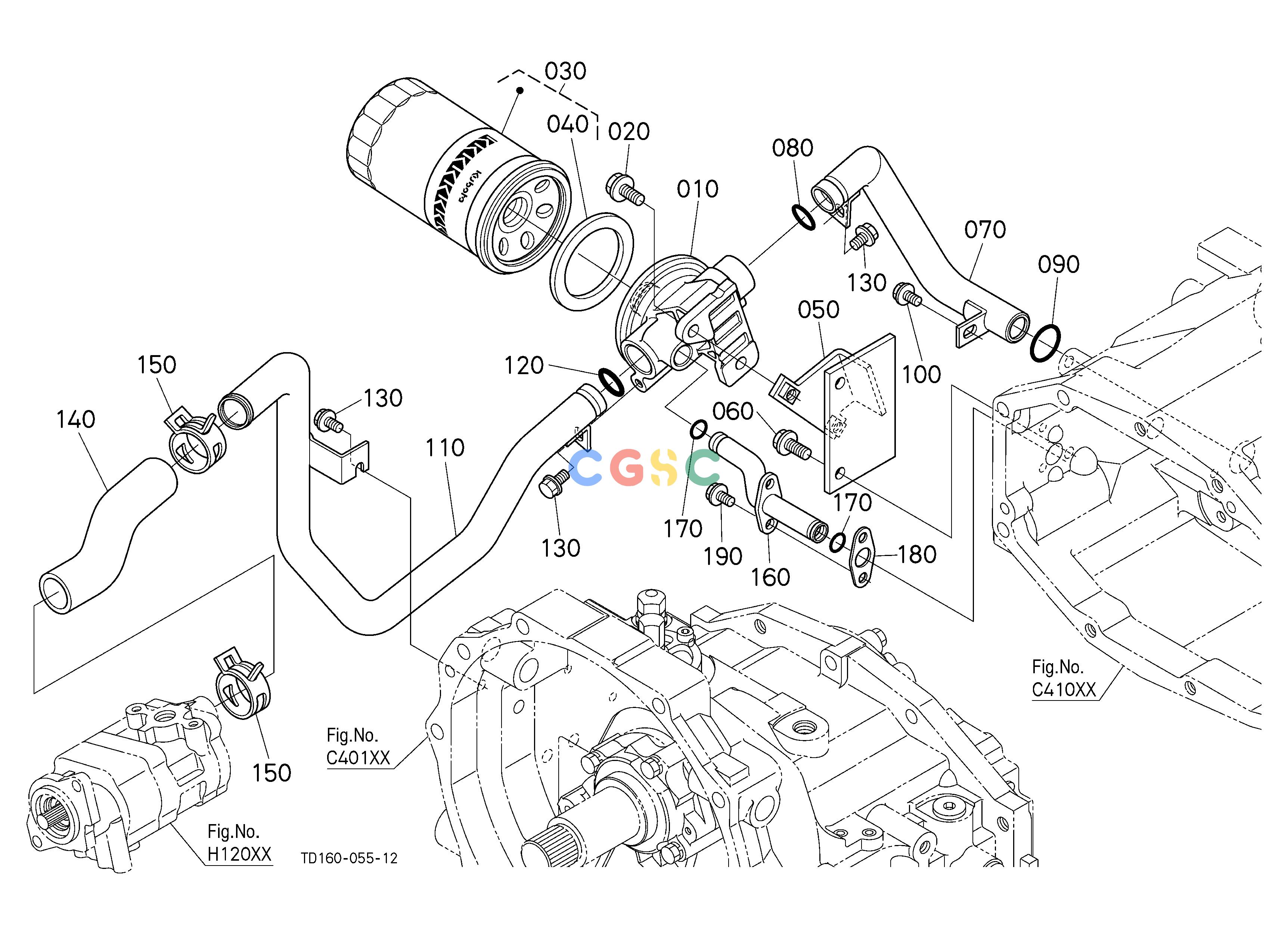

久保田零件查询H20500 HYDRAULIC OIL LINE(INLET) HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
809 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TD17033210
|
[1] |
BRACKET,FILTER
|
1.2760(lbs); 0.580
|
| 020. |
0177461020
|
[2] |
BOLT,FLANGE
|
0.0484(lbs); 0.022
|
| 030. |
TA04037710
|
[1] |
CARTRIDGE,OIL FILTE.
|
1.6060(lbs); 0.730
|
| 030. |
HHTA037710
|
[1] |
CARTRIDGE,OIL FILTE.
|
1.6060(lbs); 0.730
|
| 040. |
T007037720
|
[1] |
MAGNET,OIL FILTER
|
0.0880(lbs); 0.040
|
| 050. |
TD17056350
|
[1] |
STAY,FILTER BRACKET
|
1.1220(lbs); 0.510
|
| 060. |
0177461020
|
[2] |
BOLT,FLANGE
|
0.0484(lbs); 0.022
|
| 070. |
TD17056312
|
[1] |
PIPE,INLET
|
0.5280(lbs); 0.240
|
| 080. |
0481607230
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 090. |
0481600290
|
[1] |
O RING
|
0.0066(lbs); 0.003
|
| 100. |
0175450812
|
[1] |
BOLT,FLANGE
|
0.0220(lbs); 0.010
|
| 110. |
TD17056320
|
[1] |
PIPE,INLET
|
1.3860(lbs); 0.630
|
| 120. |
0481707230
|
[1] |
O RING
|
0.0110(lbs); 0.005
|
| 130. |
0175450816
|
[3] |
BOLT,FLANGE
|
0.0242(lbs); 0.011
|
| 140. |
TD17033340
|
[1] |
HOSE,INLET
|
0.2310(lbs); 0.105
|
| 140. |
TD17033343
|
[1] |
HOSE,INLET
|
0.2310(lbs); 0.105
|
| 150. |
1624172970
|
[2] |
BAND,PIPE
|
0.0330(lbs); 0.015
|
| 160. |
TD17056330
|
[1] |
PIPE,SUCTION HST
|
0.2530(lbs); 0.115
|
| 170. |
0481600140
|
[2] |
O RING
|
0.0044(lbs); 0.002
|
| 180. |
TD17056342
|
[1] |
GASKET,PIPE
|
0.0022(lbs); 0.001
|
| 190. |
0175450812
|
[2] |
BOLT,FLANGE
|
0.0220(lbs); 0.010
|
