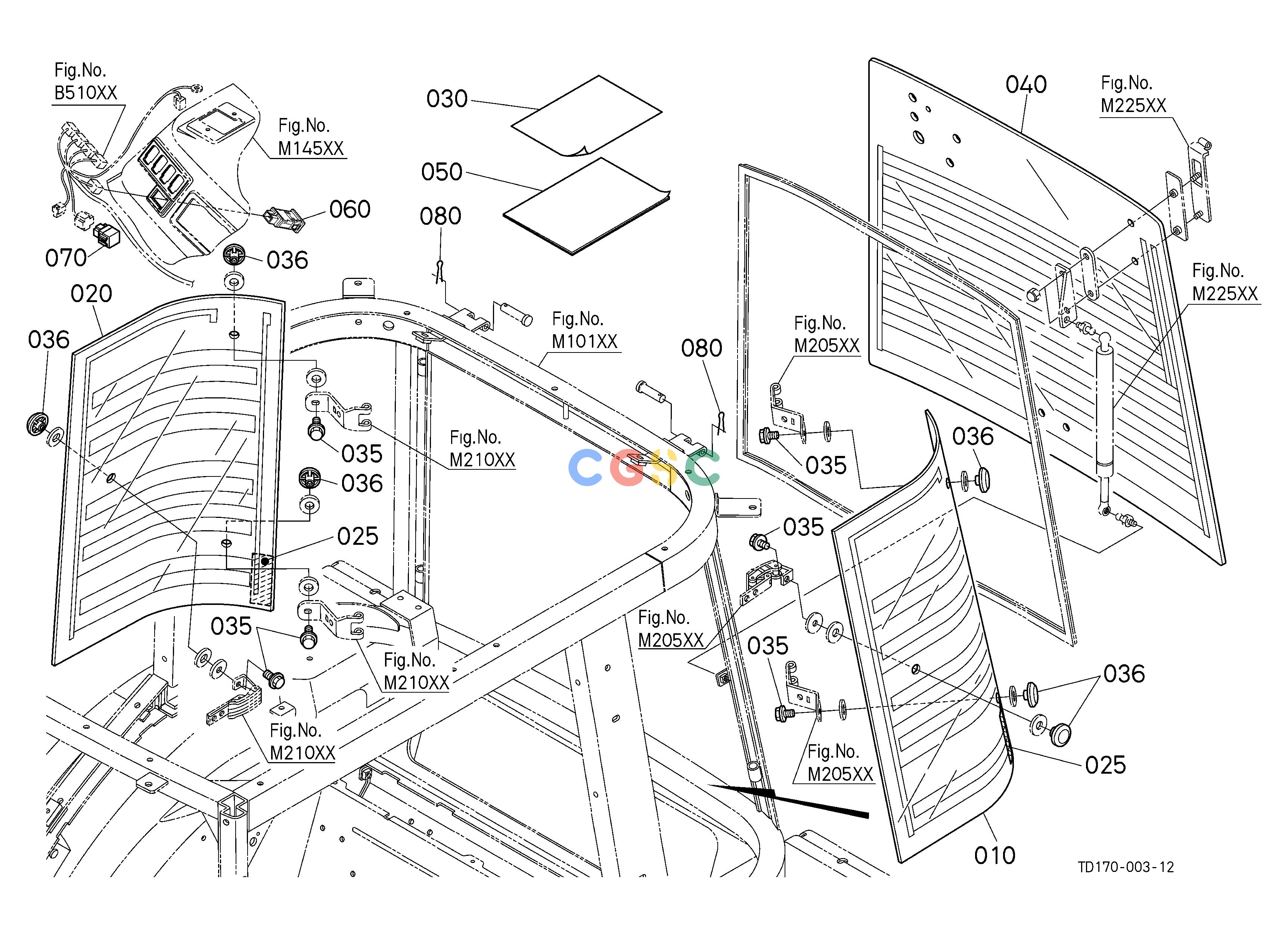

久保田零件查询T11300 DEFOGGER GLASS [A] [OPTION] OPTIONEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
659 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TA14070532
|
[1] |
GLASS,LH
|
7.9200(lbs); 3.600
|
| 020. |
TA14070542
|
[1] |
GLASS,RH
|
7.9200(lbs); 3.600
|
| 025. |
TA14054990
|
[2] |
REFLECTOR,LABEL
|
0.0044(lbs); 0.002
|
| 030. |
9999999999
|
[1] |
MANUAL ASSEMBLY
|
0.0000(lbs); 0.000
|
| 035. |
3040019060
|
[6] |
BOLT,FLANGE
|
0.0132(lbs); 0.006
|
| 036. |
T027061890
|
[6] |
HOLDER
|
0.0242(lbs); 0.011
|
| 040. |
TD17071010
|
[1] |
GLASS,HATCH BACK
|
9.9000(lbs); 4.500
|
| 050. |
9999999999
|
[1] |
MANUAL,INSTRUCTION
|
0.0000(lbs); 0.000
|
| 060. |
3A75275100
|
[1] |
SWITCH,DEFOGGER
|
0.0660(lbs); 0.030
|
| 070. |
3F74075030
|
[1] |
RELAY
|
0.0880(lbs); 0.040
|
| 080. |
0551150212
|
[2] |
PIN,SPLIT
|
0.0022(lbs); 0.001
|
