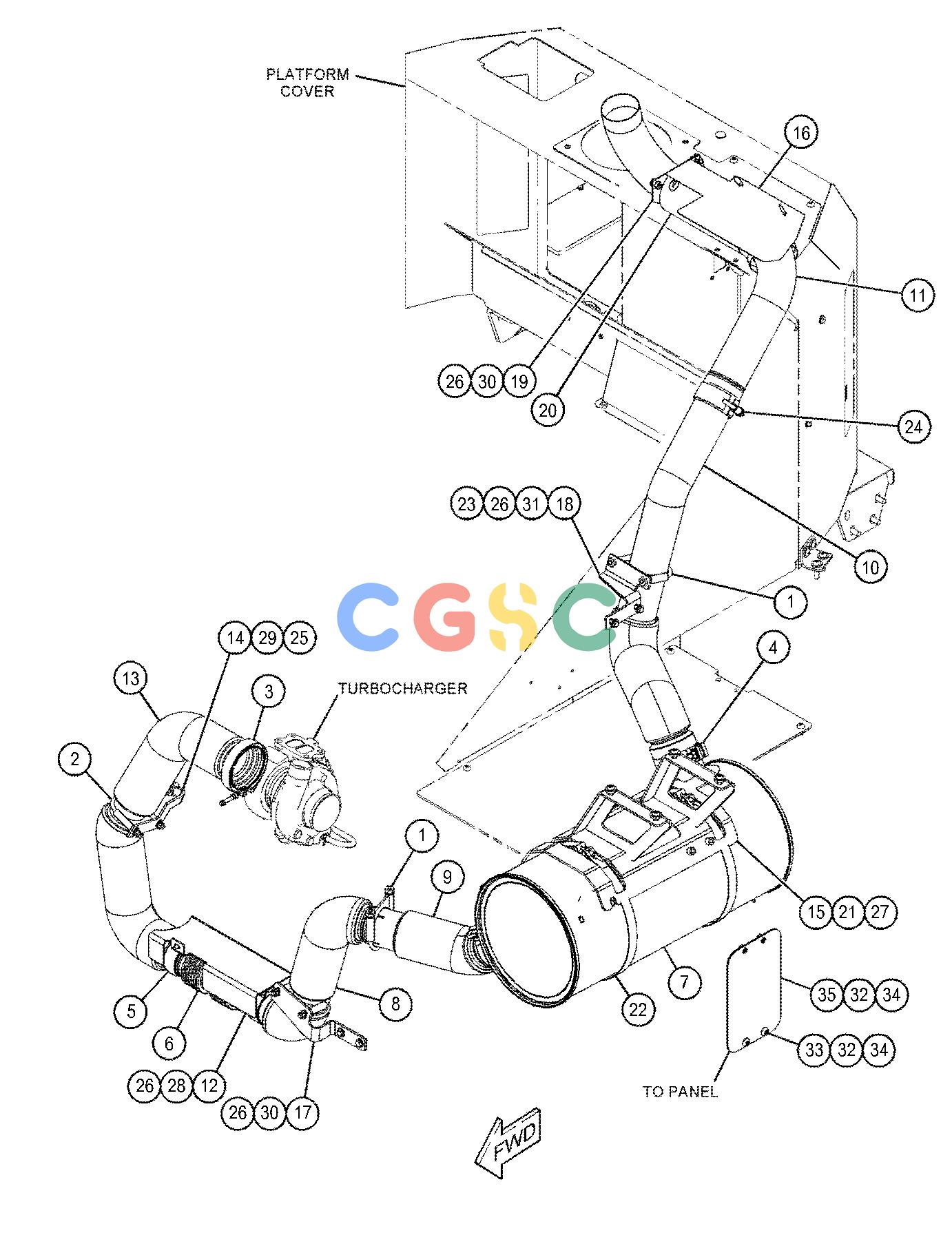

卡特零件查询（AP655F） 424-9214: EXHAUST GP-FLEXIBLE
广数供应链运营团队, 17 02月, 2025，浏览：
892 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4W-5119 | [2] | CLAMP AS | |
| 2. | 9Y-0176 | [2] | CLAMP AS | |
| 3. | 277-9463 | [1] | CLAMP | |
| 4. | 337-7325 | [2] | CLAMP-BAND | |
| 5. | 359-5885 | [1] | CLAMP AS | |
| 6. | 362-9401 | [1] | BELLOWS AS | |
| | 034-1432 | [2] | STRAP-CABLE | |
| | 337-7304 | [1] | CLAMP-BAND | |
| 7. | 396-4928 | [1] | MUFFLER AS | |
| 8. | 441-0566 | [1] | TUBE-EXHAUST | |
| 9. | 441-0567 | [1] | TUBE-EXHAUST | |
| 10. | 441-0568 | [1] | TUBE-EXHAUST | |
| 11. | 441-0569 | [1] | TUBE-EXHAUST | |
| 12. | 441-0570 | [1] | SHIELD | |
| 13. | 441-0571 | [1] | TUBE-EXHAUST | |
| 14. | 441-0574 | [1] | BRACKET | |
| 15. | 441-0575 | [1] | PLATE AS | |
| | 8R-3857M | [4] | BOSS(M8X1.25X12-MM) | |
| | 8T-3612M | [4] | NUT-WELD(M8X1.25-THD) | |
| 16. | 442-0617 | [1] | INSULATION | |
| 17. | 442-0620 | [1] | BRACKET | |
| 18. | 442-0621 | [1] | BRACKET | |
| 19. | 444-5233 | [1] | PLATE AS | |
| | 8T-3612M | [3] | NUT-WELD(M8X1.25-THD) | |
| 20. | 463-4117 | [1] | INSULATION | |
| 21. | 216-7352M | [4] | SCREW-TRUSS HEAD(M8X1.25X30-MM) | |
| 22. | 289-4164 | [2] | STRAP AS | |
| 23. | 344-5674M | [2] | NUT(M8X1.25-THD) | |
| 24. | 388-7010 | [1] | CLAMP-BENT BOLT | |
| 25. | 5P-1076 | [2] | WASHER-HARD(13.5X30X4-MM THK) | |
| 26. | 5P-4116 | [12] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 27. | 7X-0613 | [4] | WASHER-HARD(8.8X25.5X5-MM THK) | |
| 28. | 7X-2536M | [3] | BOLT(M8X1.25X14-MM) | |
| 29. | 8T-4139M | [2] | BOLT(M12X1.75X30-MM) | |
| 30. | 8T-4189M | [5] | BOLT(M8X1.25X20-MM) | |
| 31. | 8T-7547M | [2] | BOLT(M8X1.25X30-MM) | |
| 32. | 8T-4121 | [3] | WASHER-HARD(11X21X2.5-MM THK) | |
| 33. | 9X-2041M | [1] | SCREW-TRUSS HEAD(M10X1.5X20-MM) | |
| 34. | 344-5675M | [3] | NUT(M10X1.5-THD) | |
| 35. | 464-4783 | [1] | PLATE | |
| | M | | METRIC PART |
