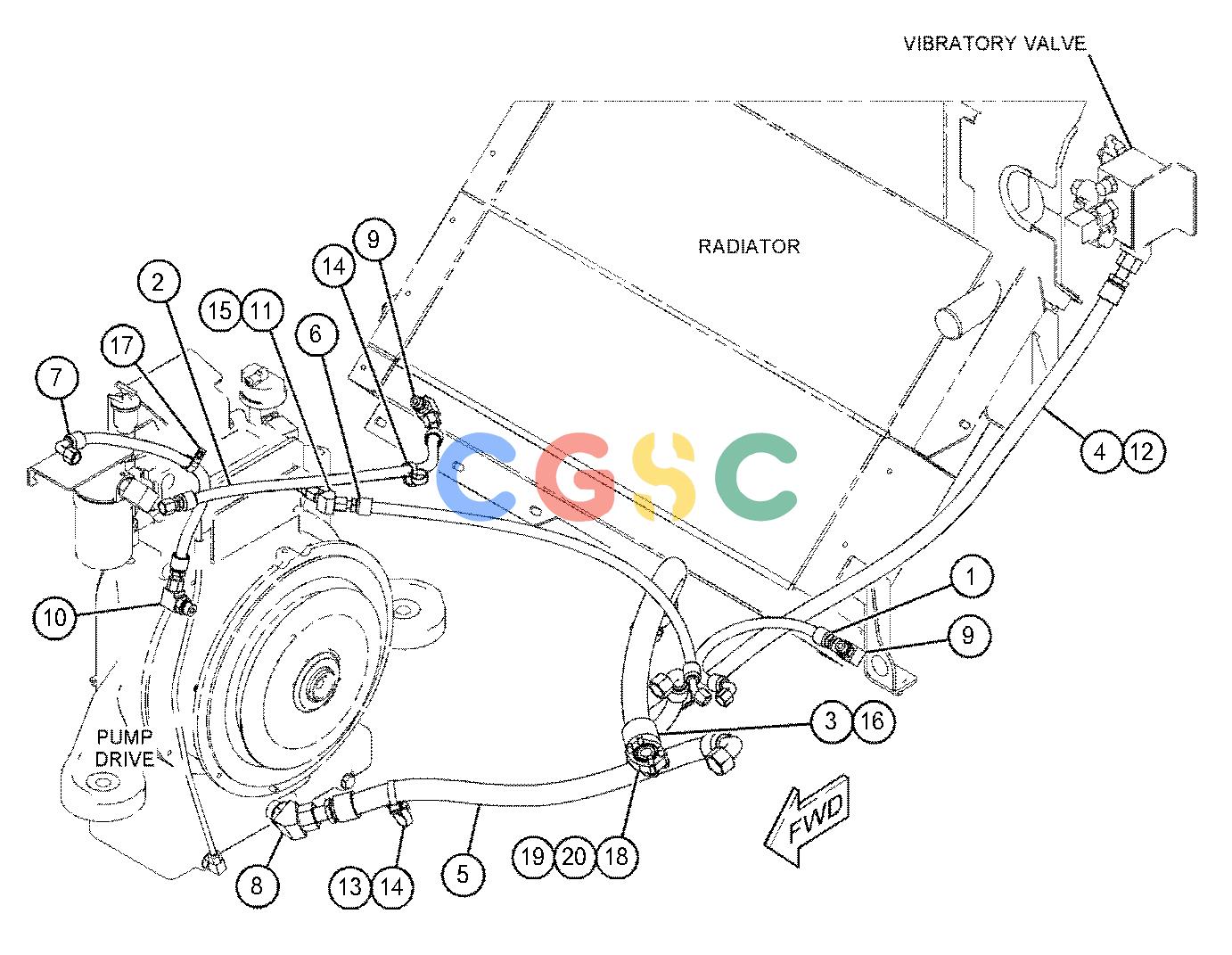

卡特零件查询（AP655F） 433-6601: LINES GP-GENERATOR

广数供应链运营团队, 17 02月, 2025，浏览： 400 次

Pos.	Part No	Qty	Parts name
1.	389-8003I	[1]	HOSE AS
2.	447-9906I	[1]	HOSE AS
3.	447-9910I	[1]	HOSE AS
4.	447-9912I	[1]	HOSE AS
5.	447-9913I	[1]	HOSE AS
6.	447-9914I	[1]	HOSE AS
7.	461-0729I	[1]	HOSE AS
8.	148-8355	[1]	ELBOW AS
	5K-9090	[1]	SEAL-O-RING
	6V-9005	[1]	ELBOW
	7M-8485	[1]	SEAL-O-RING
9.	148-8364	[2]	ELBOW AS
			(EACH INCLUDES)
	3K-0360	[1]	SEAL-O-RING
	6V-8398	[1]	SEAL-O-RING
	6V-8625	[1]	ELBOW
10.	148-8372	[1]	ELBOW AS
	2M-9780	[1]	SEAL-O-RING
	6V-8398	[1]	SEAL-O-RING
	6V-8721	[1]	ELBOW
11.	153-6241	[1]	ELBOW AS
	6V-8398	[1]	SEAL-O-RING
	8C-8989	[1]	ELBOW
12.	177-2215	[1]	STRAP-DUAL CLAMP
13.	200-6345	[1]	SADDLE-MOUNTING(DUAL SWIVEL)
14.	204-2281	[4]	STRAP-CABLE
15.	385-9391	[1]	VALVE GP-CHECK
	3K-0360	[1]	SEAL-O-RING
	6V-8398	[1]	SEAL-O-RING
16.	4J-0520	[1]	SEAL-O-RING
17.	6D-4246	[1]	CLIP(LOOP)
18.	8C-3206	[2]	FLANGE-HALF
19.	8T-4121	[4]	WASHER-HARD(11X21X2.5-MM THK)
20.	8T-4196M	[4]	BOLT(M10X1.5X35-MM)
	I		REFER TO HYDRAULIC INFORMATION SYSTEM
	M		METRIC PART
