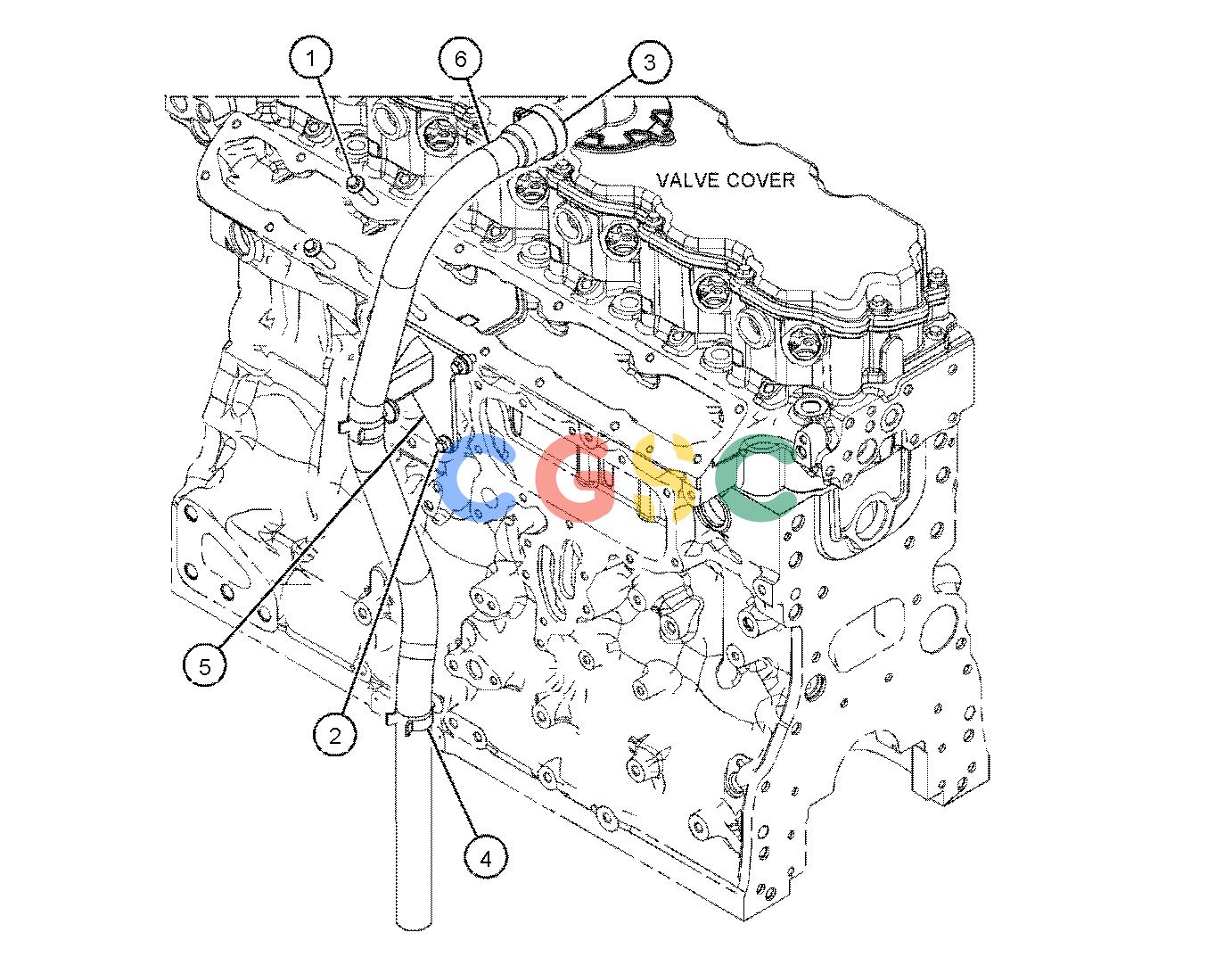

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 105-2740M | [3] | BOLT(M8X1.25X40-MM) | |
| 2. | 124-3815M | [3] | BOLT(M8X1.25X16-MM) | |
| 3. | 363-5813 | [1] | CLAMP-HOSE | |
| 4. | 378-5311 | [2] | CLIP-PIPE | |
| 5. | 389-1995 | [1] | BRACKET AS | |
| 6. | 392-4097 | [1] | HOSE | |
| M | METRIC PART | |||
广数供应链运营团队, 17 02月, 2025，浏览： 280 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 105-2740M | [3] | BOLT(M8X1.25X40-MM) | |
| 2. | 124-3815M | [3] | BOLT(M8X1.25X16-MM) | |
| 3. | 363-5813 | [1] | CLAMP-HOSE | |
| 4. | 378-5311 | [2] | CLIP-PIPE | |
| 5. | 389-1995 | [1] | BRACKET AS | |
| 6. | 392-4097 | [1] | HOSE | |
| M | METRIC PART | |||
