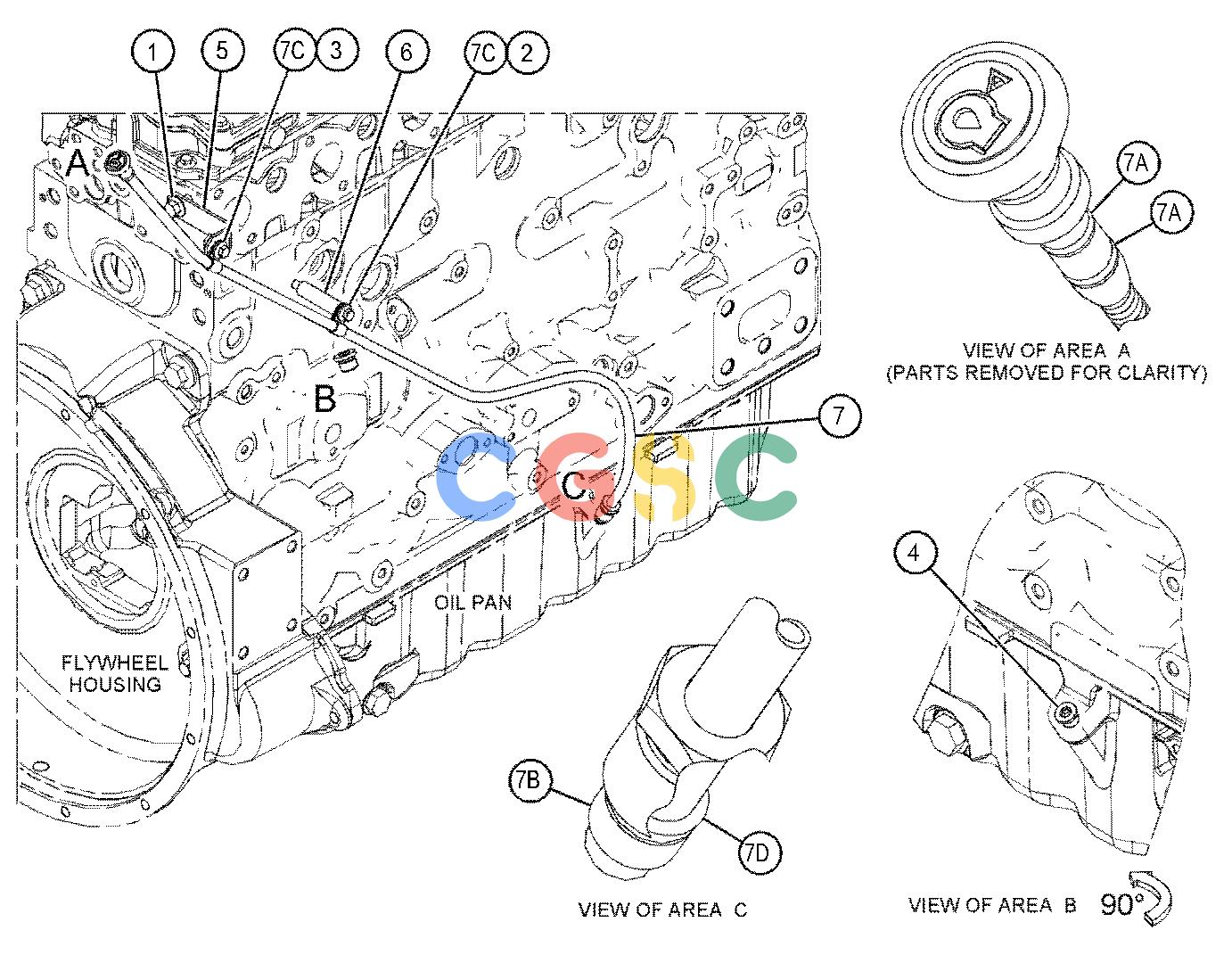

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 6I-4200M | [1] | BOLT(M10X1.5X16-MM) | |
| 2. | 100-3751M | [1] | BOLT(M8X1.25X65-MM) | |
| 3. | 124-3815M | [1] | BOLT(M8X1.25X16-MM) | |
| 4. | 6I-0289 | [1] | PLUG | |
| 5. | 423-0792 | [1] | BRACKET AS | |
| 6. | 423-0793 | [1] | BRACKET-TUBE | |
| 7. | 462-8594 | [1] | GAUGE GP-OIL LEVEL (DIPSTICK)(ENGINE) | |
| 7A. | 275-9891 | [2] | SEAL-O-RING | |
| 7B. | 6I-1497 | [1] | SEAL | |
| 7C. | 187-0555 | [2] | CLIP | |
| 7D. | 228-7089 | [1] | SEAL-O-RING | |
| M | METRIC PART | |||
