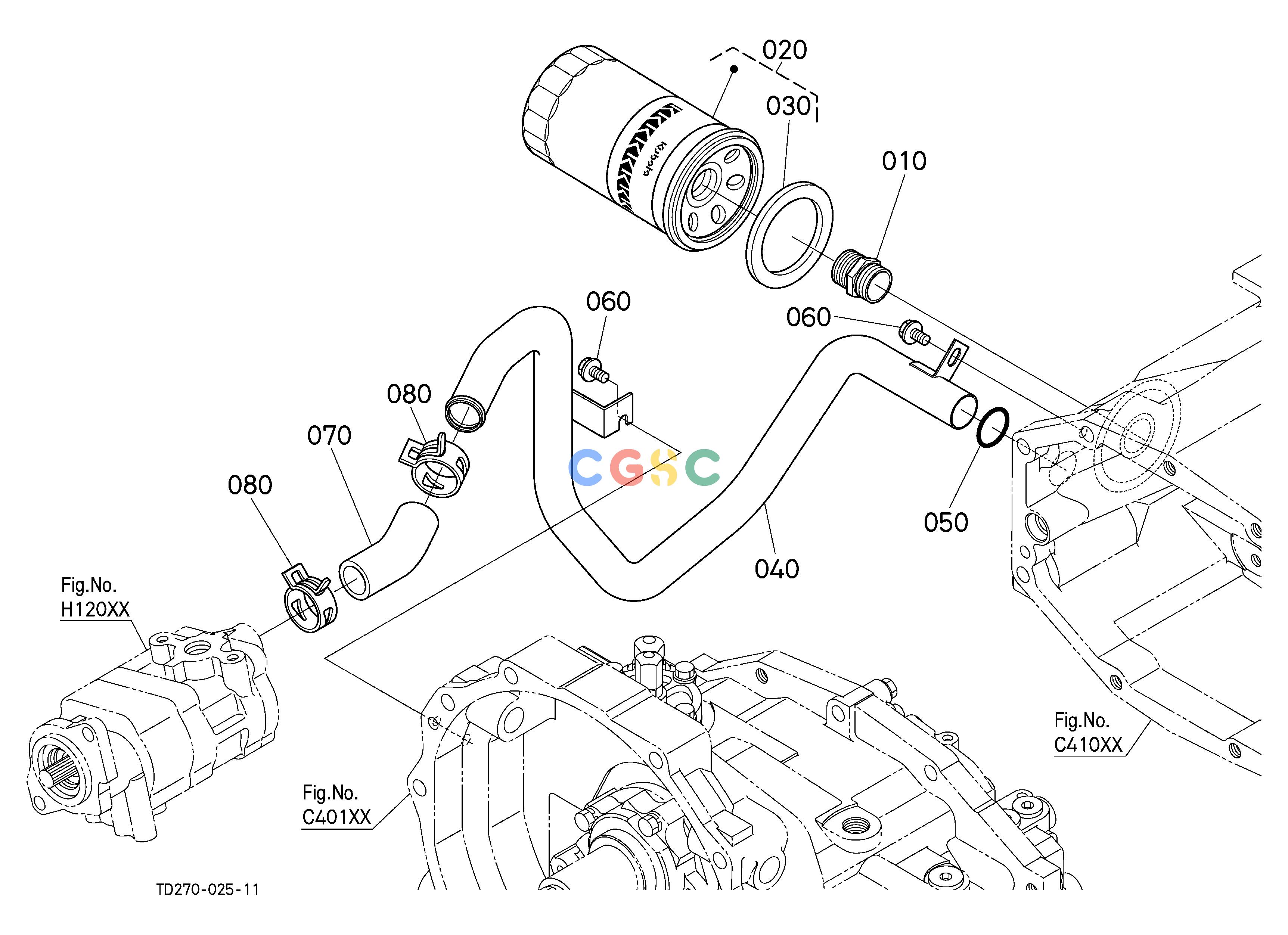

久保田零件查询H20500 HYDRAULIC OIL LINE (INLET) ## NOTE:ORDER BY REF.No.040 and 070 NEW PARTS. HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
413 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3259038330
|
[1] |
JOINT,SCREW
|
0.1100(lbs); 0.050
|
| 020. |
HHTA037710
|
[1] |
FILTER(CARTRIDGE,OIL)
|
1.6060(lbs); 0.730
|
| 030. |
T007037720
|
[1] |
MAGNET,OIL FILTER
|
0.0880(lbs); 0.040
|
| 040. |
TD27056322
|
[1] |
PIPE,INLET
|
0.0000(lbs); 0.000
|
| 040. |
TD27056323
|
[1] |
PIPE,INLET
|
1.6500(lbs); 0.750
|
| 050. |
0481600290
|
[1] |
O RING
|
0.0066(lbs); 0.003
|
| 060. |
0175450816
|
[2] |
BOLT,FLANGE
|
0.0242(lbs); 0.011
|
| 070. |
TD17033343
|
[1] |
HOSE(INLET)
|
0.2310(lbs); 0.105
|
| 070. |
TD17033344
|
[1] |
HOSE,INLET
|
0.2310(lbs); 0.105
|
| 080. |
1624172970
|
[2] |
BAND,PIPE
|
0.0330(lbs); 0.015
|
