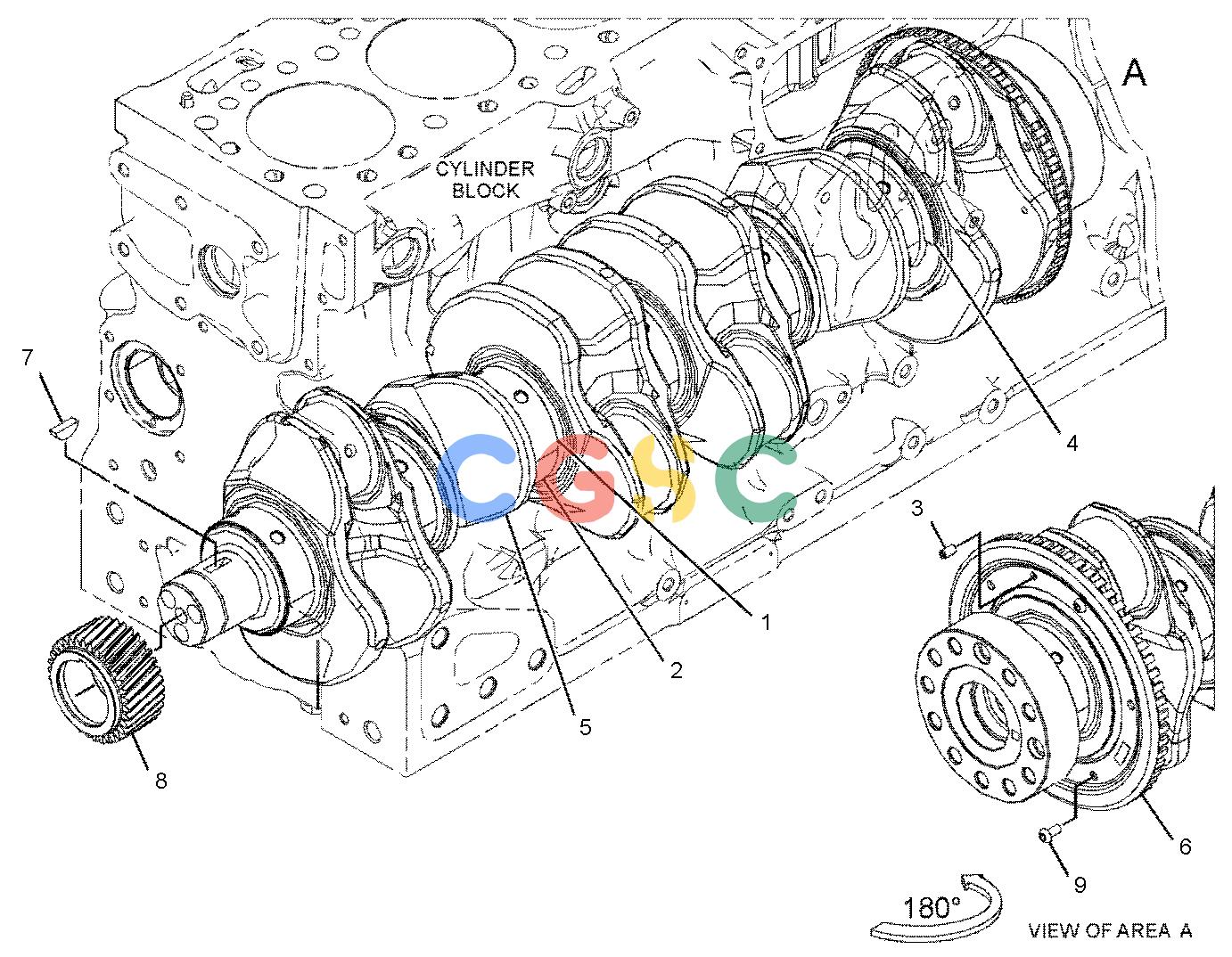

卡特零件查询（AP655F） 374-6300: CRANKSHAFT GP
广数供应链运营团队, 17 02月, 2025，浏览：
600 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 317-5485P | [7] | BEARING | |
| 2. | 317-5486P | [7] | BEARING | |
| 3. | 339-8780 | [1] | DOWEL | |
| 4. | 363-0559J | [2] | WASHER-THRUST | |
| 5. | 376-4074 | [1] | CRANKSHAFT | |
| 6. | 376-4078 | [1] | DISC-TIMING | |
| 7. | 067-6135 | [1] | KEY-WOODRUFF | |
| 8. | 276-7391 | [1] | GEAR(34-TEETH) | |
| 9. | 276-7394M | [3] | SCREW(M6X1XX12-MM) | |
| | | | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 360-1978P | [1] | KIT-BEARING(STANDARD)(CRANKSHAFT) | |
| | | | (INCLUDES BEARINGS) |
| | 364-5145J | [1] | KIT-WASHER(STANDARD) | |
| | | | (INCLUDES WASHERS) |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
| | M | | METRIC PART |
| | P | | KIT MARKED P SERVICES PART(S) MARKED P |
