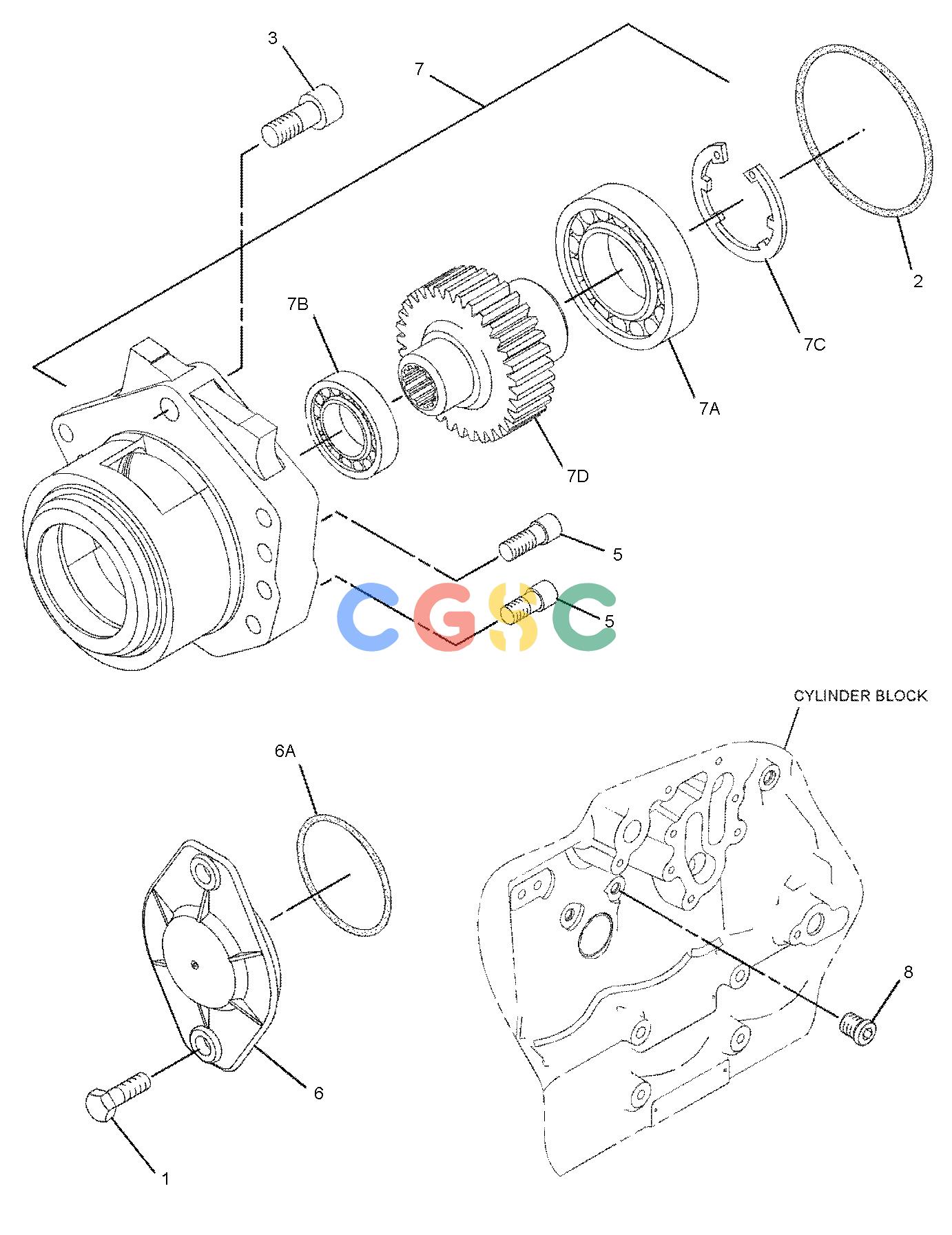

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 100-4830M | [2] | BOLT(M10X1.5X20-MM) | |
| 2. | 102-2073 | [1] | SEAL-O-RING | |
| 3. | 102-2078M | [1] | BOLT(M10X1.5X25-MM) | |
| 5. | 126-3212M | [5] | BOLT(M8X1.25X25-MM) | |
| 6. | 198-8262 | [1] | COVER AS | |
| 6A. | 198-8263 | [1] | SEAL-O-RING | |
| 7. | 235-1063 | [1] | ADAPTER AS | |
| 7A. | 6H-3957 | [1] | BALL BEARING | |
| 7B. | 102-2075 | [1] | BEARING | |
| 7C. | 102-2076 | [1] | CLIP | |
| 7D. | 235-1061 | [1] | GEAR(33-TEETH) | |
| 8. | 277-4223 | [1] | PLUG | |
| M | METRIC PART | |||
