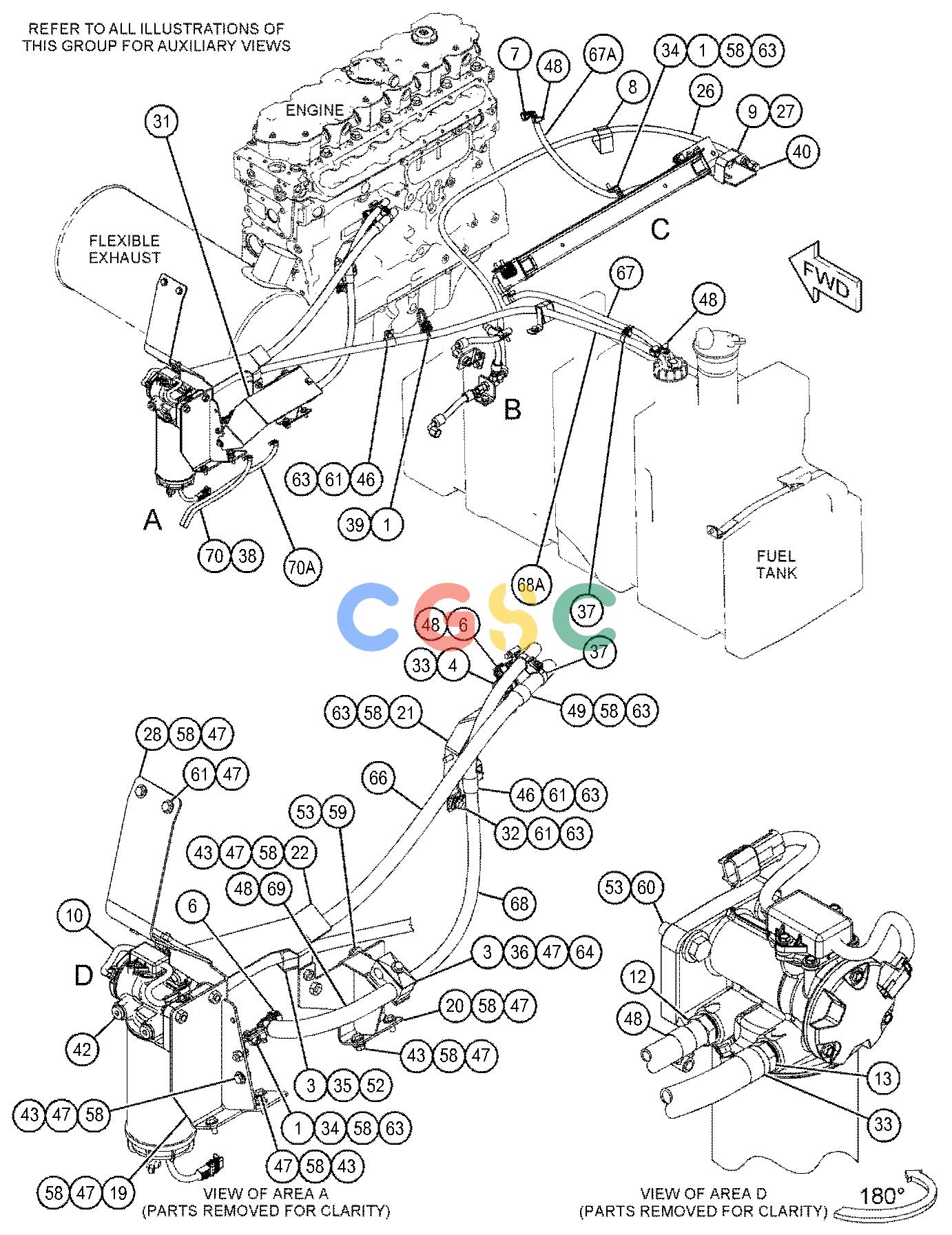

卡特零件查询（AP655F） 424-9210: LINES GP-FUEL
广数供应链运营团队, 17 02月, 2025，浏览：
354 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 7K-1181 | [4] | STRAP-CABLE | |
| 2. | 7V-5628 | [1] | PLATE(TOP) | |
| 3. | 102-8705 | [2] | PLATE(TOP) | |
| 4. | 264-3518 | [1] | CONNECTOR-RECEPTACLE | |
| 5. | 334-3325 | [1] | CORE AS-FUEL COOLER(FUEL TANK) | |
| 6. | 354-0817 | [2] | CONNECTOR-HOSE | |
| 7. | 355-0632 | [1] | CONNECTOR-SPECIAL | |
| 8. | 364-4568 | [1] | STRAP | |
| 9. | 364-4569 | [1] | STRAP | |
| 10. | 391-3762Y | [1] | FILTER GP-WATER SEP & FUEL | |
| 11. | 392-0777 | [1] | CONNECTOR AS | |
| | 6V-8994 | [1] | UNION(STRAIGHT) | |
| | 228-7089 | [2] | SEAL-O-RING | |
| 12. | 426-4125 | [1] | ADAPTER AS | |
| | 228-7102 | [1] | SEAL-O-RING | |
| | 426-4124 | [1] | ADAPTER | |
| 13. | 439-1861 | [1] | ADAPTER AS | |
| | 228-7102 | [1] | SEAL-O-RING | |
| | 439-1816 | [1] | ADAPTER | |
| 14. | 439-1871 | [1] | ADAPTER AS | |
| | 142-4881 | [1] | CONNECTOR | |
| | 238-5081 | [1] | SEAL-O-RING | |
| 15. | 439-1887 | [1] | ELBOW AS | |
| | 184-9114 | [1] | ELBOW | |
| | 238-5081 | [1] | SEAL-O-RING | |
| 16. | 439-1889 | [1] | ELBOW AS | |
| | 129-2327 | [1] | ELBOW | |
| | 238-5081 | [1] | SEAL-O-RING | |
| 17. | 439-1891 | [1] | ADAPTER AS | |
| | 7X-0820 | [1] | TEE | |
| | 228-7089 | [3] | SEAL-O-RING | |
| 18. | 441-0556 | [1] | BRACKET AS | |
| | 178-8505 | [1] | PLATE-WELD | |
| 19. | 441-0557 | [1] | BRACKET AS | |
| | 8T-3490M | [2] | NUT-WELD(M10X1.5-THD) | |
| | 8T-3612M | [3] | NUT-WELD(M8X1.25-THD) | |
| 20. | 441-0558 | [1] | BRACKET AS | |
| | 6V-9632M | [1] | NUT-WELD(M6X1-THD) | |
| | 8T-3490M | [2] | NUT-WELD(M10X1.5-THD) | |
| | 8T-3612M | [2] | NUT-WELD(M8X1.25-THD) | |
| | 102-8706 | [1] | PLATE AS | |
| 21. | 441-0559 | [1] | PLATE AS | |
| | 8T-3612M | [3] | NUT-WELD(M8X1.25-THD) | |
| 22. | 441-0560 | [1] | SHIELD AS | |
| | 102-8706 | [1] | PLATE AS | |
| 23. | 442-0622 | [2] | BRACKET | |
| 24. | 442-0623 | [1] | HOSE AS | |
| 25. | 442-0625 | [1] | HOSE AS | |
| 26. | 444-4945 | [1] | HOSE AS | |
| 27. | 445-2694 | [1] | MAT-RUBBER | |
| 28. | 454-0117 | [1] | BRACKET | |
| 29. | 466-3301 | [1] | PLATE AS | |
| | 8T-3490M | [1] | NUT-WELD(M10X1.5-THD) | |
| 30. | 466-3302 | [1] | PLATE AS | |
| | 8T-3612M | [2] | NUT-WELD(M8X1.25-THD) | |
| 31. | 476-1972 | [1] | PLATE | |
| 32. | 067-2551 | [1] | CLIP | |
| 33. | 124-6257 | [2] | CLAMP-HOSE | |
| 34. | 132-5789 | [2] | CLIP(LADDER) | |
| 35. | 143-9157 | [2] | CLAMP-DOUBLE | |
| 36. | 4V-0611 | [2] | CLAMP | |
| 37. | 177-2215 | [2] | STRAP-DUAL CLAMP | |
| 38. | 1P-4278 | [2] | CLAMP-HOSE | |
| 39. | 200-6345 | [1] | SADDLE-MOUNTING(DUAL SWIVEL) | |
| 40. | 321-8612 | [1] | PLUG AS | |
| | 6V-9508 | [1] | PLUG(11/16-16-THD) | |
| | 228-7089 | [1] | SEAL-O-RING | |
| 41. | 329-3356M | [1] | NUT(M12X1.75-THD) | |
| 42. | 330-9724 | [2] | PLUG AS-CONNECTOR | |
| | | | (EACH INCLUDES) |
| | 228-7102 | [1] | SEAL-O-RING | |
| | 241-6158 | [1] | PLUG | |
| 43. | 344-5674M | [4] | NUT(M8X1.25-THD) | |
| 44. | 344-5675M | [1] | NUT(M10X1.5-THD) | |
| 45. | 372-7169 | [1] | SPACER(13X16.5X7-MM THK) | |
| 46. | 3S-8664 | [2] | CLIP(LOOP) | |
| 47. | 5P-4116 | [22] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 48. | 5P-4961 | [8] | CLAMP-HOSE | |
| 49. | 6D-4244 | [1] | CLIP(LOOP) | |
| 50. | 6V-9168 | [2] | NUT(11/16-16-THD) | |
| 51. | 7V-5626 | [2] | CLAMP | |
| 52. | 7X-0818M | [1] | BOLT(M8X1.25X45-MM) | |
| 53. | 7X-7729 | [6] | WASHER(11X25X3-MM THK) | |
| 54. | 8C-8451M | [2] | BOLT(M6X1X40-MM) | |
| 55. | 8T-4121 | [4] | WASHER-HARD(11X21X2.5-MM THK) | |
| 56. | 8T-4137M | [4] | BOLT(M10X1.5X20-MM) | |
| 57. | 8T-4139M | [1] | BOLT(M12X1.75X30-MM) | |
| 58. | 8T-4189M | [21] | BOLT(M8X1.25X20-MM) | |
| 59. | 8T-4195M | [3] | BOLT(M10X1.5X30-MM) | |
| 60. | 8T-4196M | [2] | BOLT(M10X1.5X35-MM) | |
| 61. | 8T-4200M | [6] | BOLT(M8X1.25X16-MM) | |
| 62. | 8T-4223 | [2] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 63. | 8T-4224 | [10] | WASHER-HARD(8.8X16X2-MM THK) | |
| 64. | 8T-6912M | [1] | BOLT(M8X1.25X50-MM) | |
| 65. | 9M-8406 | [2] | CLIP(LOOP) | |
| 66. | 347-8647E | | HOSE(106-CM) | |
| 67. | 347-8645E | | HOSE(54-CM) | |
| 67A. | 347-8645E | | HOSE(79.5-CM) | |
| 68. | 347-8646E | | HOSE(109-5-CM) | |
| 68A. | 347-8646E | | HOSE(166-CM) | |
| 69. | 160-2243G | | SLEEVE-ABRASION(8.7-IN) | |
| 70. | 8C-3681E | | HOSE(32.5-CM) | |
| 70A. | 8C-3681E | | HOSE(43-CM) | |
| | E | | ORDER BY THE CENTIMETER |
| | G | | ORDER BY THE INCH |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
