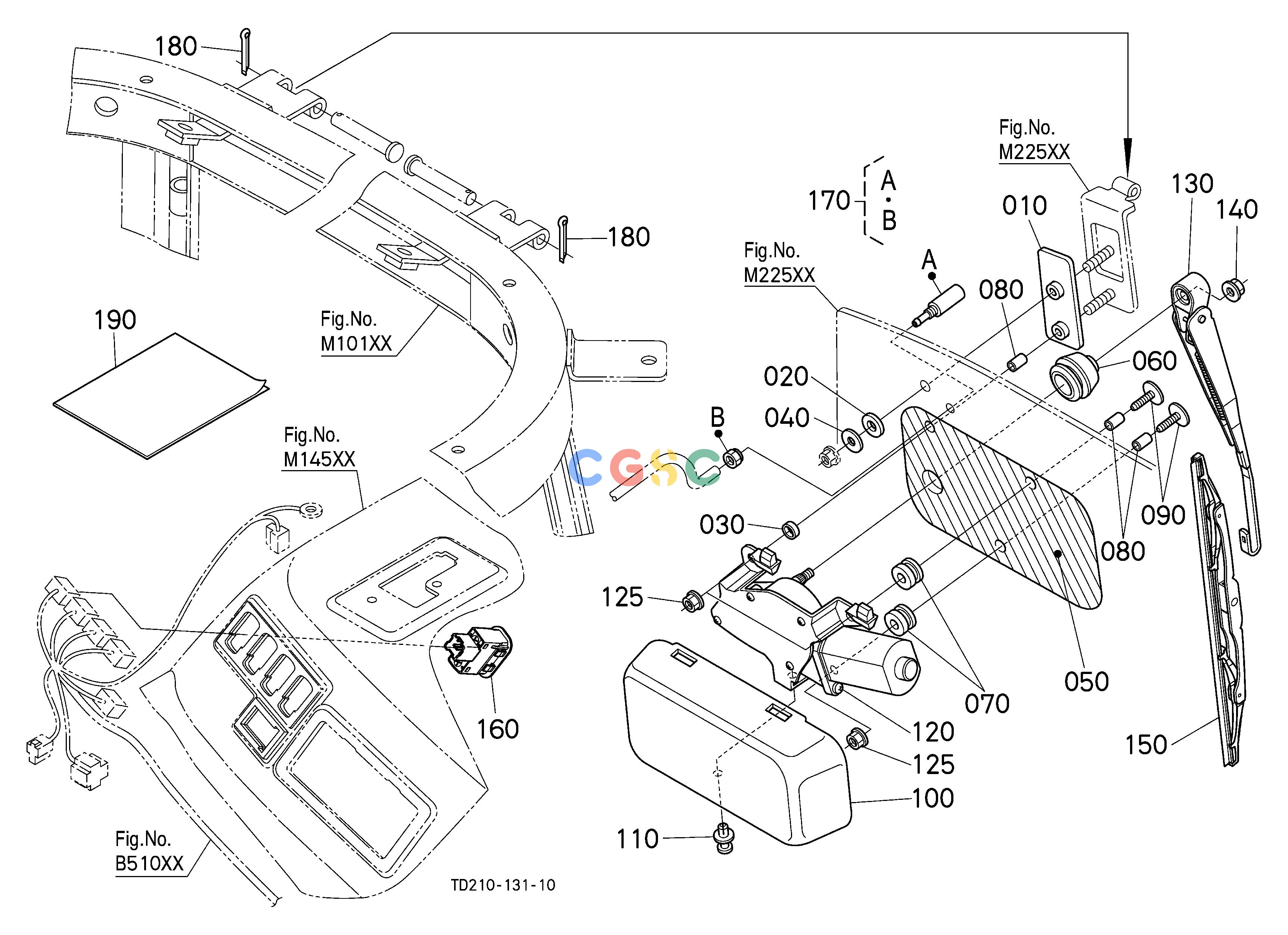

久保田零件查询V25000 REAR WIPER KIT (W/G No.L8334) [A] [OPTION] OPTIONEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
393 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
T127561790
|
[1] |
GASKET
|
0.0330(lbs); 0.015
|
| 020. |
T027061980
|
[1] |
GASKET
|
0.0066(lbs); 0.003
|
| 030. |
T127561990
|
[1] |
GASKET
|
0.0044(lbs); 0.002
|
| 040. |
T027061970
|
[1] |
PLATE
|
0.0220(lbs); 0.010
|
| 050. |
T127571030
|
[1] |
LABEL,HATCH BACK
|
0.0176(lbs); 0.008
|
| 060. |
T127572680
|
[1] |
PACKING
|
0.0308(lbs); 0.014
|
| 070. |
T127572690
|
[2] |
PACKING
|
0.0110(lbs); 0.005
|
| 080. |
T127572710
|
[3] |
COLLAR(REAR WIPER)
|
0.0044(lbs); 0.002
|
| 090. |
T127572720
|
[2] |
BOLT(REAR WIPER)
|
0.0176(lbs); 0.008
|
| 100. |
T127572730
|
[1] |
COVER(REAR WIPER)
|
0.1540(lbs); 0.070
|
| 110. |
T127572740
|
[1] |
RIVET(PUSH)
|
0.0022(lbs); 0.001
|
| 120. |
T127572750
|
[1] |
MOTOR(REAR WIPER)
|
1.7820(lbs); 0.810
|
| 125. |
T027086220
|
[3] |
NUT
|
0.0088(lbs); 0.004
|
| 130. |
T127583430
|
[1] |
ASSY ARM,REAR WIPER
|
0.3080(lbs); 0.140
|
| 140. |
0275150060
|
[1] |
NUT,FLANGE
|
0.0110(lbs); 0.005
|
| 150. |
T127583450
|
[1] |
ASSY BLADE,R.WIPER
|
0.1100(lbs); 0.050
|
| 160. |
T106575393
|
[1] |
SWITCH(WIPER REAR)
|
0.0484(lbs); 0.022
|
| 170. |
3F76054180
|
[1] |
NOZZLE,WASHER
|
0.0176(lbs); 0.008
|
| 180. |
0551150212
|
[2] |
PIN,SPLIT
|
0.0022(lbs); 0.001
|
| 190. |
99999-99999
|
[1] |
MANUAL,INSTRUCTION
|
0.0000(lbs); 0.000
|
