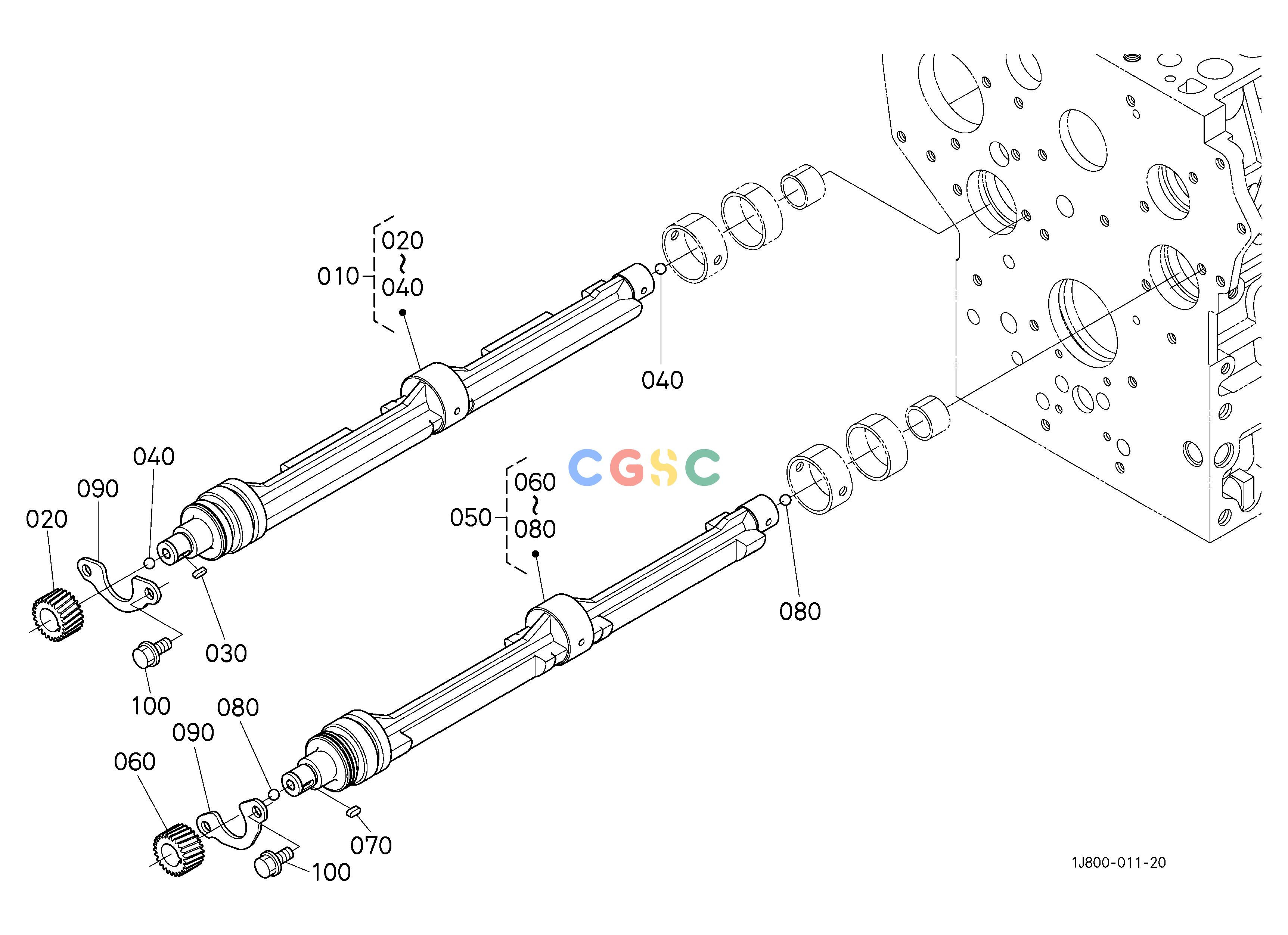

久保田零件查询513000 BALANCER ENGINEEPC Kubota online
广数供应链运营团队, 17 02月, 2025，浏览：
862 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
1G42526403
|
[1] |
SHAFT,WEIGHT,ASSY(IN)
|
4.8400(lbs); 2.200
|
| 020. |
1J87226450
|
[1] |
GEAR(BALANCER IN)
|
0.1210(lbs); 0.055
|
| 030. |
0571200410
|
[1] |
KEY,FEATHER
|
0.0022(lbs); 0.001
|
| 040. |
0771500401
|
[2] |
BALL 1/4
|
0.0022(lbs); 0.001
|
| 050. |
1G42526302
|
[1] |
SHAFT,WEIGHT,ASSY(EX)
|
4.4880(lbs); 2.040
|
| 060. |
1J87226440
|
[1] |
GEAR(BALANCER EX)
|
0.1100(lbs); 0.050
|
| 070. |
0571200410
|
[1] |
KEY,FEATHER
|
0.0022(lbs); 0.001
|
| 080. |
0771500401
|
[2] |
BALL 1/4
|
0.0022(lbs); 0.001
|
| 090. |
1A09126592
|
[2] |
STOPPER(WEIGHT SHAFT)
|
0.0880(lbs); 0.040
|
| 100. |
0175450816
|
[4] |
BOLT,FLANGE
|
0.0242(lbs); 0.011
|
