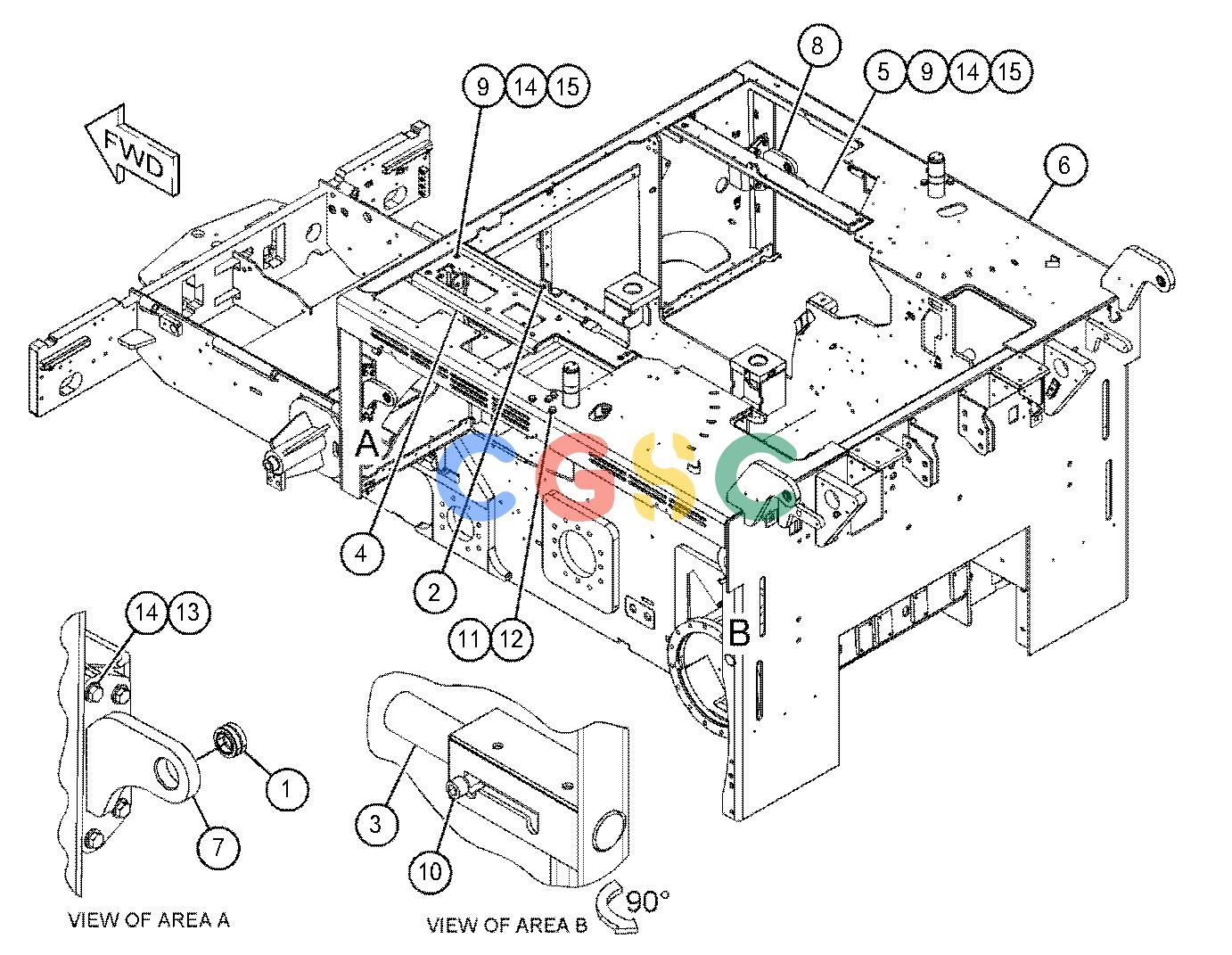

卡特零件查询（AP655F） 437-2122: FRAME GP-MAIN
广数供应链运营团队, 17 02月, 2025，浏览：
836 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 005-8639 | [2] | BEARING-ALIGNING | |
| 2. | 119-9706 | [2] | STUD-BALL | |
| 3. | 253-7897 | [2] | BAR | |
| 4. | 436-6816 | [1] | BRACKET AS | |
| 5. | 436-6819 | [1] | BRACKET | |
| 6. | 437-0182 | [1] | FRAME GP-MAIN | |
| | 7T-1099 | [1] | LINK | |
| | 8T-3635M | [1] | STUD-WELD(M12X1.75X34.93-MM) | |
| | 178-8508 | [1] | PLATE AS | |
| 7. | 441-5209 | [1] | SUPPORT AS | |
| 8. | 441-5210 | [1] | SUPPORT AS | |
| 9. | 145-1893M | [7] | SCREW(M12X1.75X40-MM) | |
| 10. | 8T-2393M | [2] | BOLT-SOCKET HEAD(M16X2X60-MM) | |
| 11. | 8T-4122 | [8] | WASHER-HARD(17X32X3.5-MM THK) | |
| 12. | 8T-4193M | [8] | BOLT(M16X2X50-MM) | |
| 13. | 8T-4194M | [8] | BOLT(M12X1.75X50-MM) | |
| 14. | 8T-4223 | [15] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 15. | 8T-4244M | [7] | NUT(M12X1.75-THD) | |
| | M | | METRIC PART |
