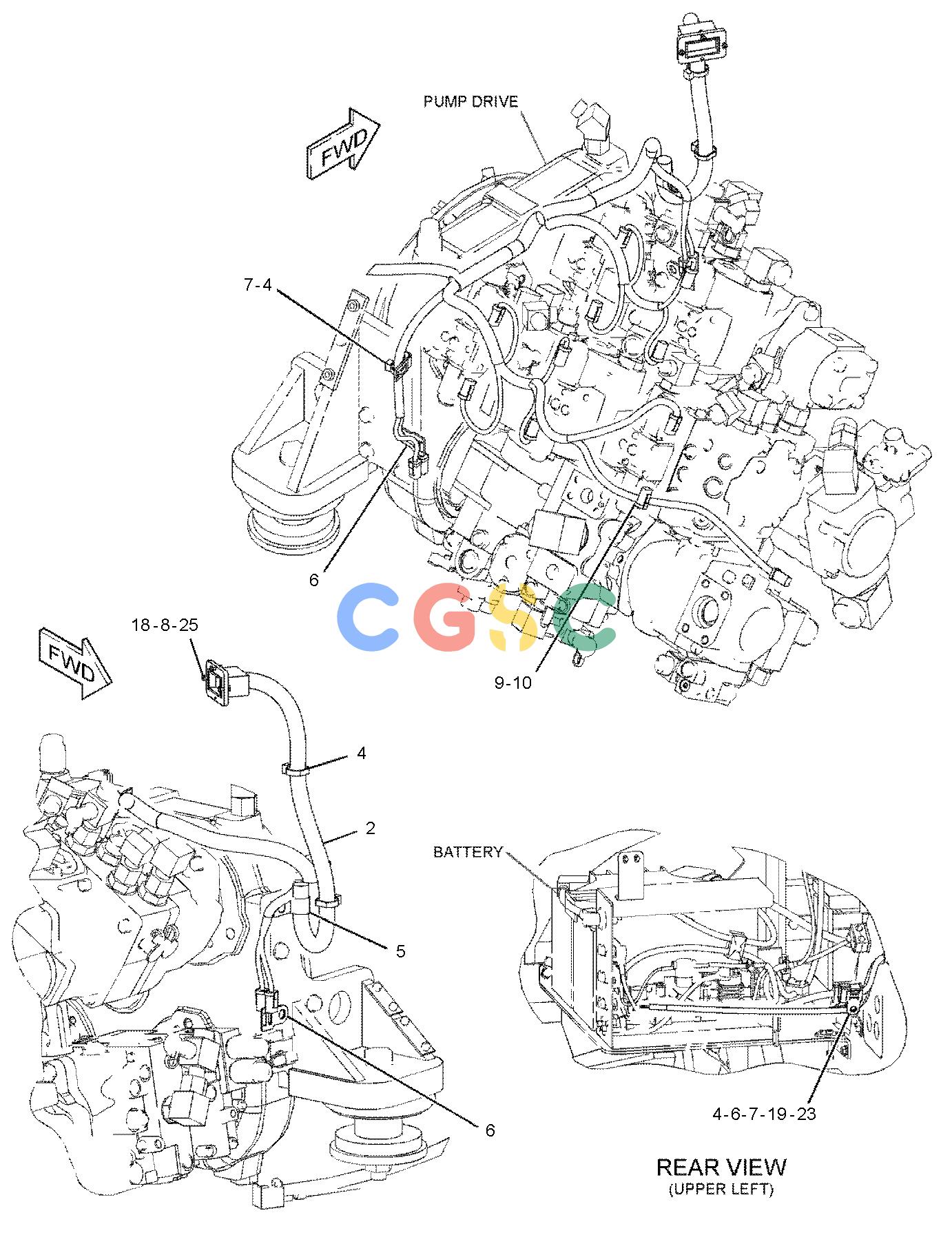

| 1. | 277-0633 | [1] | HARNESS AS-ENGINE | |
| | 180-9339 | [11] | PIN-CONNECTOR(14-GA TO 18-GA) | |
| | 267-9572 | [19] | SOCKET-CONNECTION(18-GA) | |
| | 102-8801 | [1] | KIT-RECEPTACLE(12-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 155-2270 | [1] | KIT-CONNECTING PLUG(2-PIN) | |
| | 174-0503 | [1] | KIT-CONNECTING PLUG(3-PIN) | |
| | 155-2265 | [1] | KIT-CONNECTING PLUG(8-PIN) | |
| | | | (EACH PLUG KIT INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
| | 8T-8737 | [3] | PLUG-SEAL | |
| | 125-7875E | | TUBE-HEAT SHRINK(7.44-MM DIA)(15-CM) | |
| | 155-2259 | [1] | WEDGE-PLUG LOCK(8-PIN) | |
| | 245-1042 | [1] | PLUG AS-CONNECTOR(64-PIN) | |
| | 245-1044 | [2] | LOCK-CONNECTOR | |
| | 245-1045 | [1] | COVER | |
| | 245-1048 | [45] | PLUG-CONNECTOR(1-PIN) | |
| | 131-1488 | [2] | TERMINAL AS-RING(6-GA TO 8-GA) | |
| | 2L-8071 | [2] | TERMINAL-RING(10-GA TO 12-GA, 1/2-IN SCREW) | |
| 2. | 277-0634 | [1] | HARNESS AS-PUMP | |
| | 3E-3389 | [1] | WEDGE-RECEPTACLE LOCK(8-PIN) | |
| | 8T-8737 | [7] | PLUG-SEAL | |
| | 9X-0145 | [1] | RECEPTACLE AS-CONNECTOR(24-PIN) | |
| | 119-3662E | | TUBE-HEAT SHRINK(10.85-MM DIA)(20-CM) | |
| | 180-9339 | [29] | PIN-CONNECTOR(14-GA TO 18-GA) | |
| | 102-8802 | [2] | KIT-RECEPTACLE(2-PIN) | |
| | 102-8806 | [1] | KIT-RECEPTACLE(8-PIN) | |
| | | | (EACH RECEPTACLE KIT INCLUDES RECEPTACLE AS & WEDGE) |
| | 155-2270 | [14] | KIT-CONNECTING PLUG(2-PIN) | |
| | | | (EACH INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
| | 180-9340 | [28] | SOCKET-CONNECTOR(14-GA TO 18-GA) | |
| 3. | 277-8236 | [1] | HARNESS AS-SOLENOID | |
| | 155-2270 | [2] | KIT-CONNECTING PLUG(2-PIN) | |
| | | | (EACH INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
| | 180-9340 | [4] | SOCKET-CONNECTOR(14-GA TO 18-GA) | |
| 4. | 7K-1181 | [15] | STRAP-CABLE | |
| 5. | 1S-1015 | [1] | CLIP | |
| 6. | 130-5301 | [5] | CLIP | |
| 7. | 4P-7429 | [2] | CLIP(LADDER) | |
| 8. | 096-6166 | [3] | WASHER-HARD(4.5X9X1-MM THK) | |
| 9. | 155-2270 | [1] | KIT-CONNECTING PLUG(2-PIN) | |
| | | | (INCLUDES PLUG AS & WEDGE) |
| 10. | 8T-8737 | [2] | PLUG-SEAL | |
| 11. | 4P-7428 | [3] | CLIP(LADDER) | |
| 12. | 130-5300 | [1] | CLIP | |
| 13. | 134-2540 | [1] | RESISTOR AS-CONNECTION(3-PIN) | |
| 14. | 9X-0352 | [1] | RECEPTACLE AS-CONNECTOR(2-PIN) | |
| 15. | 9X-8256 | [2] | WASHER(6.6X12X2-MM THK) | |
| 16. | 5C-2890M | [1] | NUT(M6X1-THD) | |
| 17. | 8T-4138M | [1] | BOLT(M6X1X20-MM) | |
| 18. | 5C-8312M | [3] | NUT(M4X0.7-THD) | |
| 19. | 8T-4223 | [4] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 20. | 8T-4192M | [3] | BOLT(M12X1.75X25-MM) | |
| 21. | 8T-4121 | [1] | WASHER-HARD(11X21X2.5-MM THK) | |
| 22. | 8T-4137M | [1] | BOLT(M10X1.5X20-MM) | |
| 23. | 8T-4244M | [1] | NUT(M12X1.75-THD) | |
| 24. | 8T-8799 | [1] | BOOT(RED)(RED) | |
| 25. | 6V-9672M | [3] | SCREW-MACHINE(M4X0.7X16-MM) | |
| 26. | 4P-8134 | [3] | CLIP(LADDER) | |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
