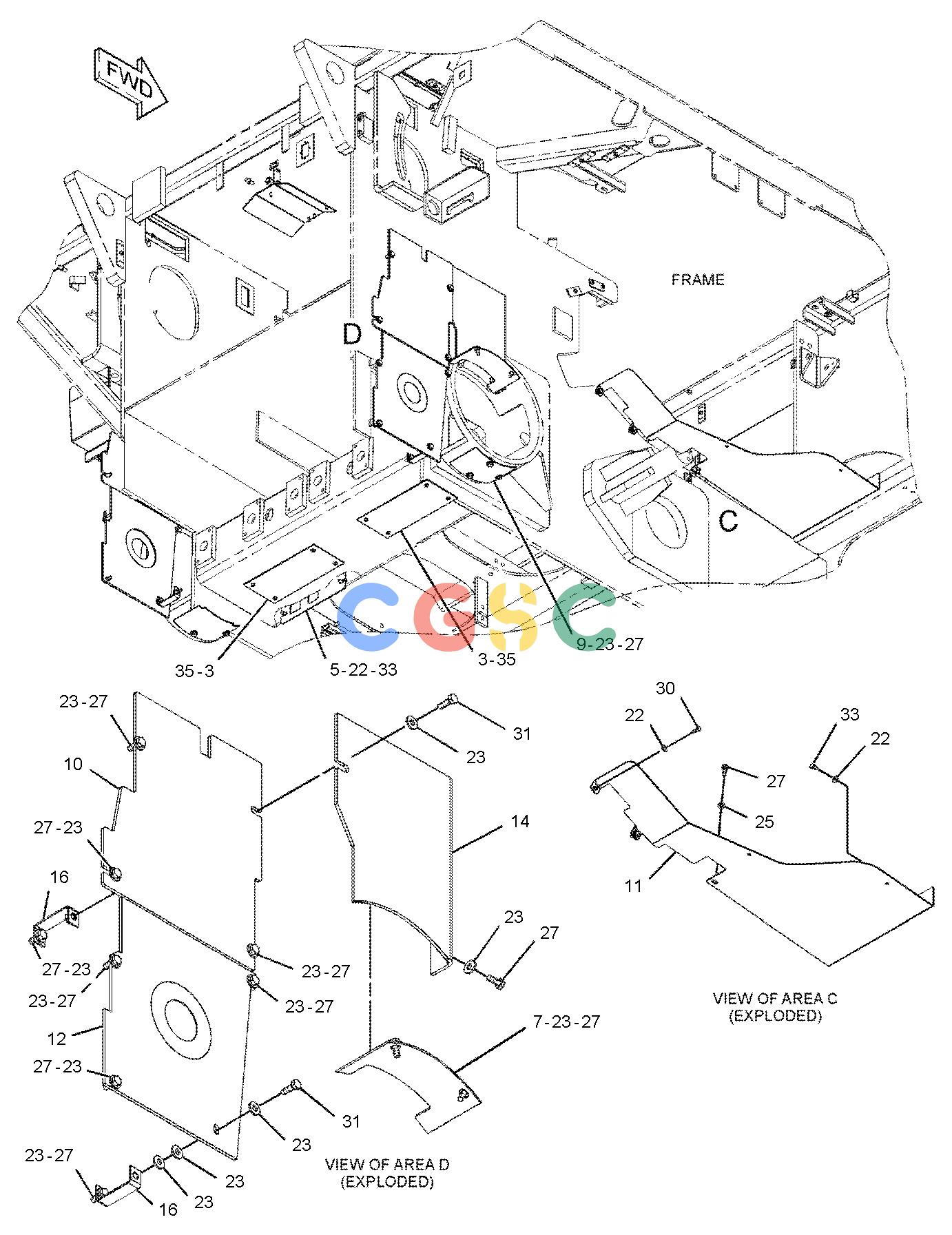

卡特零件查询（BG655D） 263-6005: COVER GP
广数供应链运营团队, 17 02月, 2025，浏览：
325 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 7R-3630 | [4] | HINGE AS | |
| 2. | 107-5014 | [3] | KNOB | |
| 3. | 200-5904 | [2] | PLATE | |
| 4. | 237-0262 | [2] | PLATE | |
| 5. | 241-9513 | [1] | COVER | |
| 6. | 273-6543 | [2] | PLATE | |
| 7. | 274-4549 | [2] | COVER | |
| 8. | 274-5192 | [1] | COVER | |
| 9. | 274-5331 | [1] | COVER | |
| 10. | 274-5522 | [2] | PLATE | |
| 11. | 278-0767 | [1] | PLATE | |
| 12. | 280-7346 | [1] | PLATE AS(RH) | |
| 13. | 280-7347 | [1] | PLATE AS(LH) | |
| 14. | 280-7348 | [1] | PLATE | |
| 15. | 280-7349 | [1] | PLATE | |
| 16. | 280-7350 | [4] | PLATE AS | |
| 17. | 283-8046 | [1] | PLATE(BENT) | |
| 18. | 284-6615 | [1] | PLATE(BENT) | |
| 19. | 288-8170 | [2] | BRACKET | |
| 21. | 303-8783Y | [1] | BOX GP-TOOL | |
| 22. | 5P-4116 | [10] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 23. | 7X-7729 | [61] | WASHER(11X25X3-MM THK) | |
| 24. | 8T-0389M | [4] | LOCKNUT(M10X1.5-THD) | |
| 25. | 8T-4121 | [5] | WASHER-HARD(11X21X2.5-MM THK) | |
| 26. | 8T-4133M | [8] | NUT(M10X1.5-THD) | |
| 27. | 8T-4136M | [30] | BOLT(M10X1.5X25-MM) | |
| 28. | 8T-4138M | [6] | BOLT(M6X1X20-MM) | |
| 29. | 8T-4179M | [4] | BOLT(M12X1.75X20-MM) | |
| 30. | 8T-4189M | [6] | BOLT(M8X1.25X20-MM) | |
| 31. | 8T-4195M | [12] | BOLT(M10X1.5X30-MM) | |
| 32. | 8T-4196M | [8] | BOLT(M10X1.5X35-MM) | |
| 33. | 8T-4200M | [4] | BOLT(M8X1.25X16-MM) | |
| 34. | 8T-4223 | [4] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 35. | 9X-2616M | [8] | SCREW-SOCKET(M8X1.25X16-MM) | |
| 36. | 9X-8256 | [6] | WASHER(6.6X12X2-MM THK) | |
| 37. | 4S-6336B | [2] | PLUG-BUTTON | |
| 38. | 9D-3767B | [1] | PLUG-BUTTON | |
| | B | | USE AS REQUIRED |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
