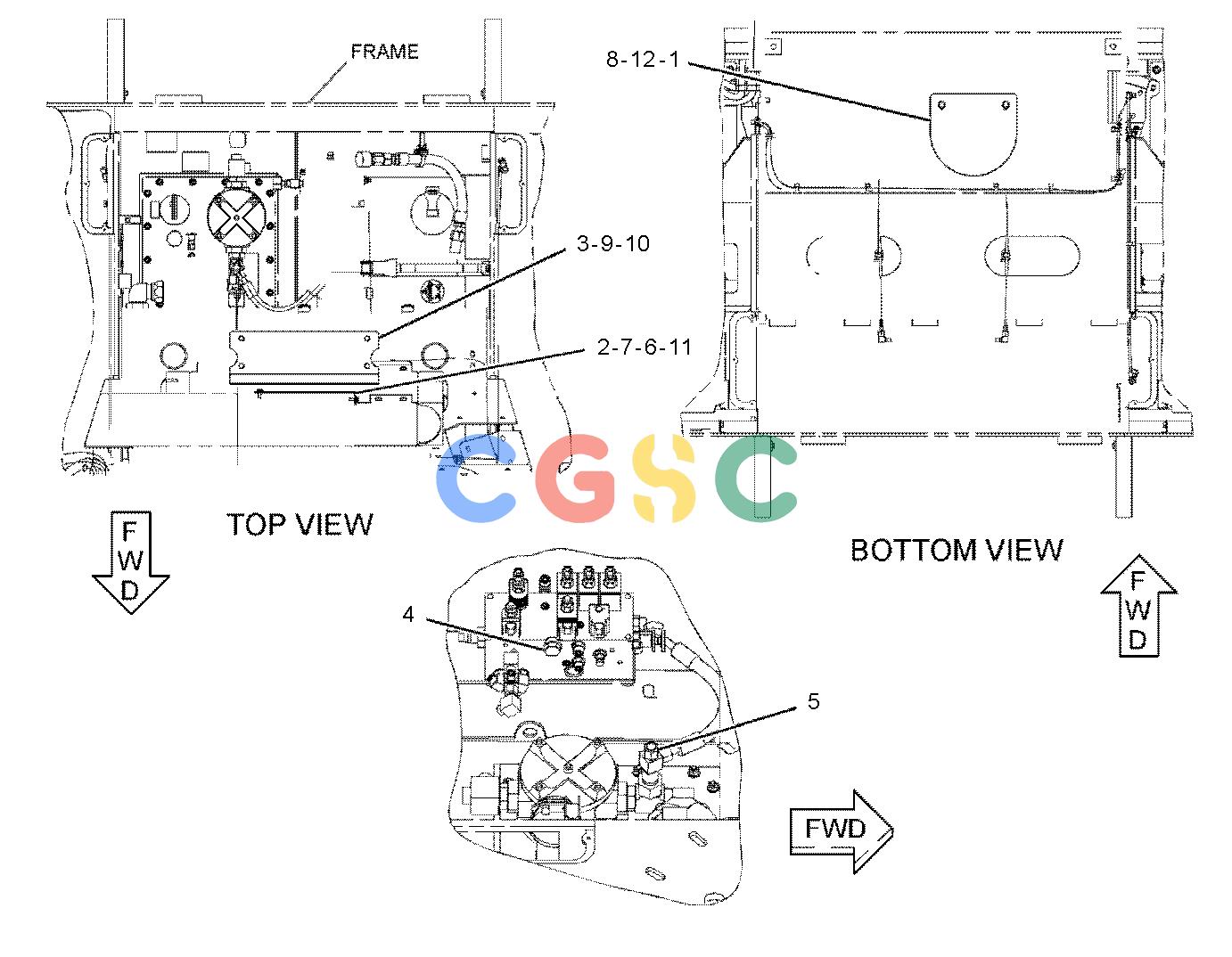

卡特零件查询（BG655D） 270-6764: COVER GP
广数供应链运营团队, 17 02月, 2025，浏览：
673 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 207-8234 | [1] | PLATE-COVER | |
| 2. | 296-7710 | [1] | PLATE-COVER | |
| 3. | 296-7711 | [1] | PLATE-COVER | |
| 4. | 148-8410 | [1] | PLUG AS | |
| | 2M-9780 | [1] | SEAL-O-RING | |
| | 9S-4190 | [1] | PLUG-O-RING(7/8-14-THD) | |
| 5. | 6V-9832 | [1] | CAP | |
| 6. | 5P-4116 | [6] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 7. | 8T-4189M | [4] | BOLT(M8X1.25X20-MM) | |
| 8. | 8T-4191M | [2] | BOLT(M10X1.5X16-MM) | |
| 9. | 8T-4224 | [4] | WASHER-HARD(8.8X16X2-MM THK) | |
| 10. | 8T-4908M | [4] | BOLT(M8X1.25X25-MM) | |
| 11. | 5C-7261M | [2] | NUT(M8X1.25-THD) | |
| 12. | 7X-7729 | [2] | WASHER(11X25X3-MM THK) | |
| | M | | METRIC PART |
