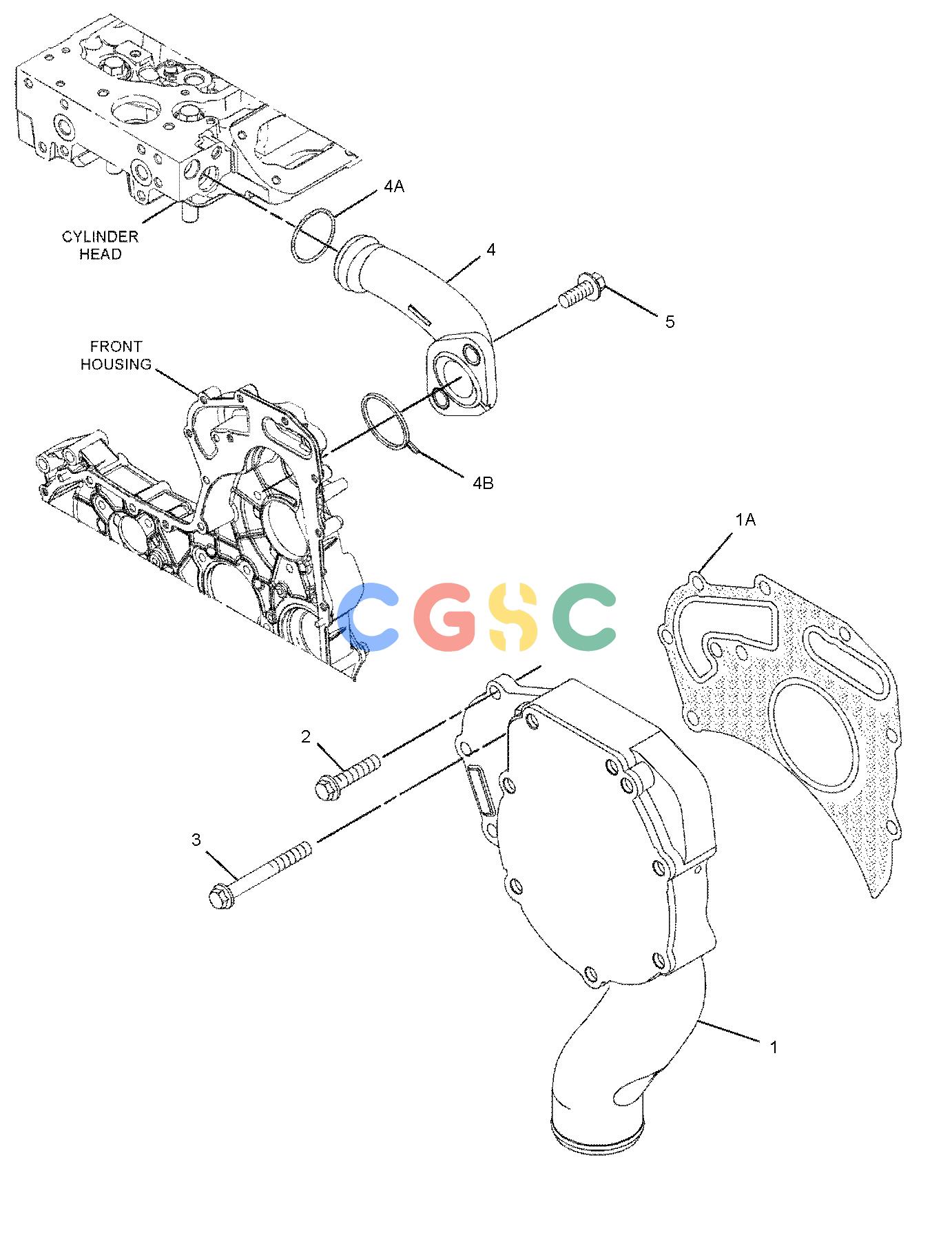

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 322-9662C | [1] | PUMP GP-WATER | |
| 1A. | 225-8019 | [1] | GASKET | |
| 2. | 6I-0254M | [2] | BOLT(M8X1.25X30-MM) | |
| 3. | 113-8129M | [7] | BOLT(M8X1.25X75-MM) | |
| 4. | 277-2925 | [1] | CONNECTION AS | |
| 4A. | 225-7738 | [1] | SEAL-O-RING | |
| 4B. | 277-2923 | [1] | GASKET | |
| 5. | 6I-0217M | [2] | BOLT(M8X1.25X20-MM) | |
| C | CHANGE FROM PREVIOUS TYPE | |||
| M | METRIC PART | |||
