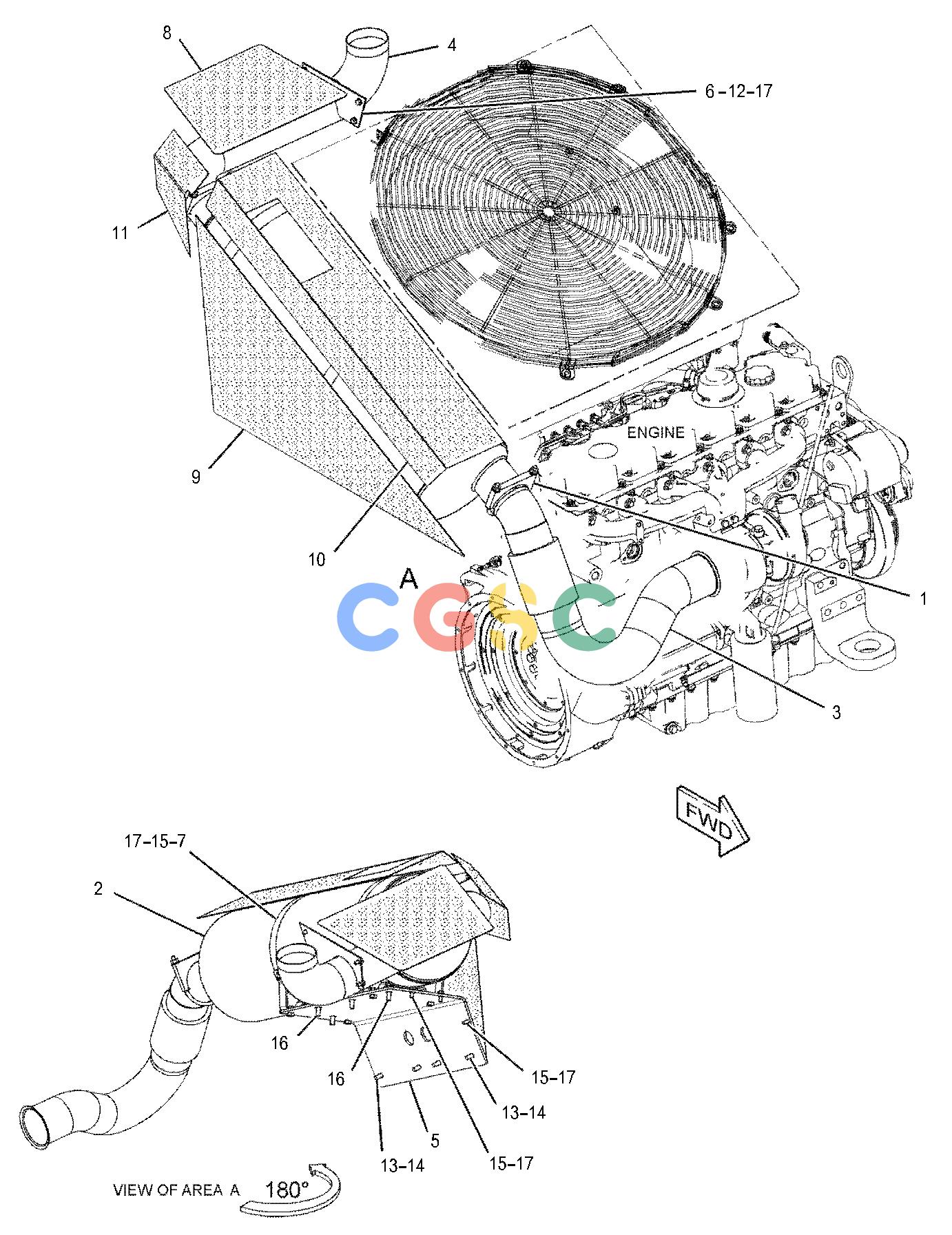

卡特零件查询（BG655D） 270-4255: EXHAUST GP-FLEXIBLE
广数供应链运营团队, 17 02月, 2025，浏览：
479 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 061-9793 | [2] | CLAMP-TUBE | |
| 2. | 244-6593 | [1] | MUFFLER | |
| 3. | 270-9311 | [1] | PIPE AS-EXHAUST | |
| 4. | 271-1472 | [1] | TUBE-EXHAUST | |
| 5. | 274-4629 | [1] | PLATE AS | |
| 6. | 274-4630 | [1] | PLATE | |
| 7. | 274-4636 | [2] | CLAMP AS | |
| 8. | 289-3030 | [1] | INSULATION | |
| 9. | 289-3031 | [1] | INSULATION | |
| 10. | 289-3032 | [1] | INSULATION | |
| 11. | 289-9597 | [1] | INSULATION | |
| 12. | 7X-2536M | [4] | BOLT(M8X1.25X14-MM) | |
| 13. | 7X-7729 | [8] | WASHER(11X25X3-MM THK) | |
| 14. | 8T-4136M | [4] | BOLT(M10X1.5X25-MM) | |
| 15. | 8T-4189M | [7] | BOLT(M8X1.25X20-MM) | |
| 16. | 8T-4195M | [4] | BOLT(M10X1.5X30-MM) | |
| 17. | 8T-4224 | [11] | WASHER-HARD(8.8X16X2-MM THK) | |
| | M | | METRIC PART |
