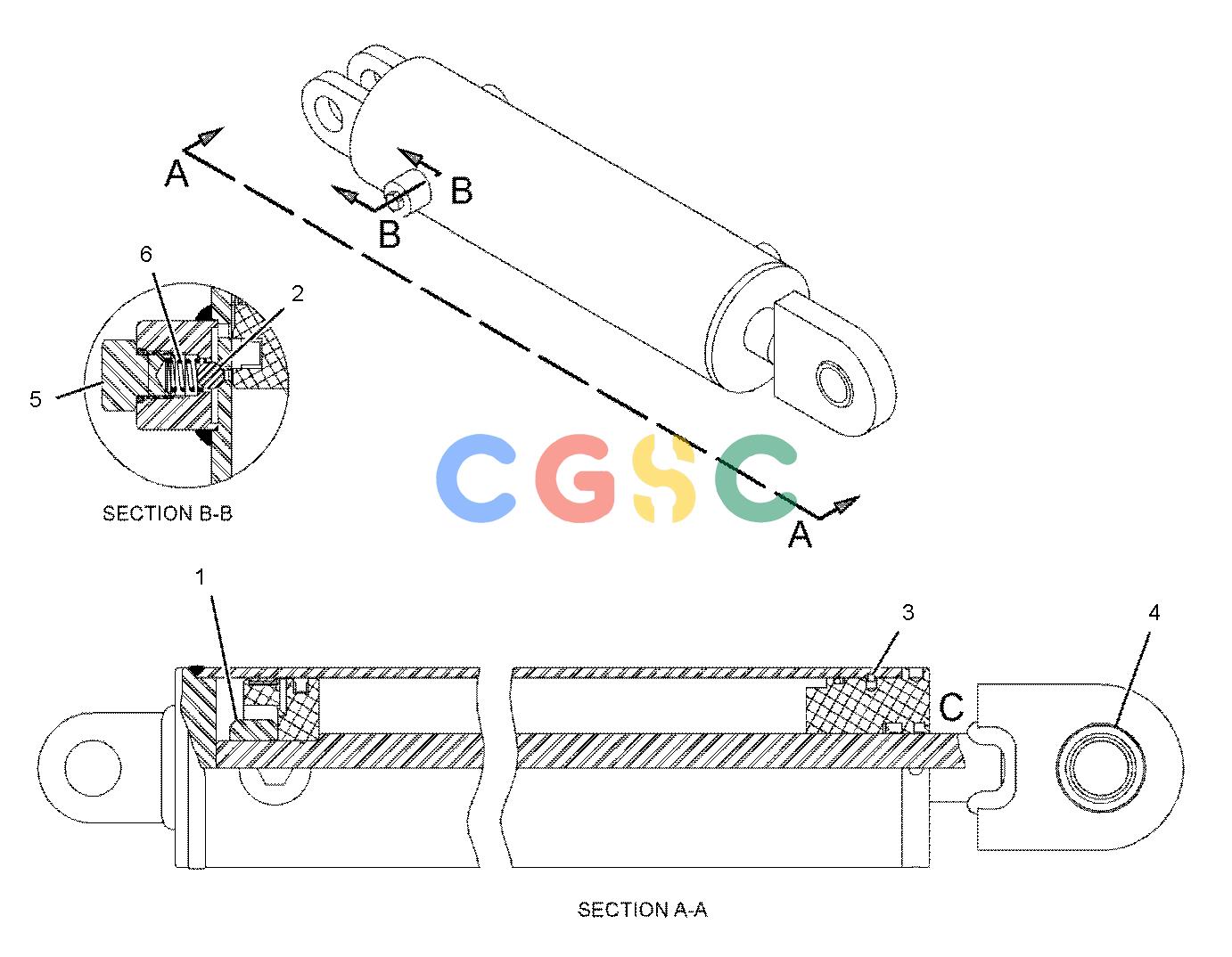

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 2K-7471 | [1] | LOCKNUT(1-14-THD) | |
| 2. | 232-6423 | [1] | BALL | |
| 3. | 232-6419 | [1] | WIRE-LOCK | |
| 4. | 005-8639 | [1] | BEARING-ALIGNING | |
| 5. | 232-6420 | [1] | KIT-PLUG(HYDRAULIC CYLINDER) | |
| (INCLUDES PLUG & O-RING SEAL) | ||||
| 6. | 232-6422 | [1] | SPRING | |
| AVAILABLE REPAIR KIT(S): | ||||
| 232-6418 | [1] | KIT-SEAL(HYDRAULIC CYLINDER) | ||
| (INCLUDES WIPER, U-CUP SEAL, O-RING SEALS, BACKUP RING, CAP SEAL & WEAR RING) | ||||
