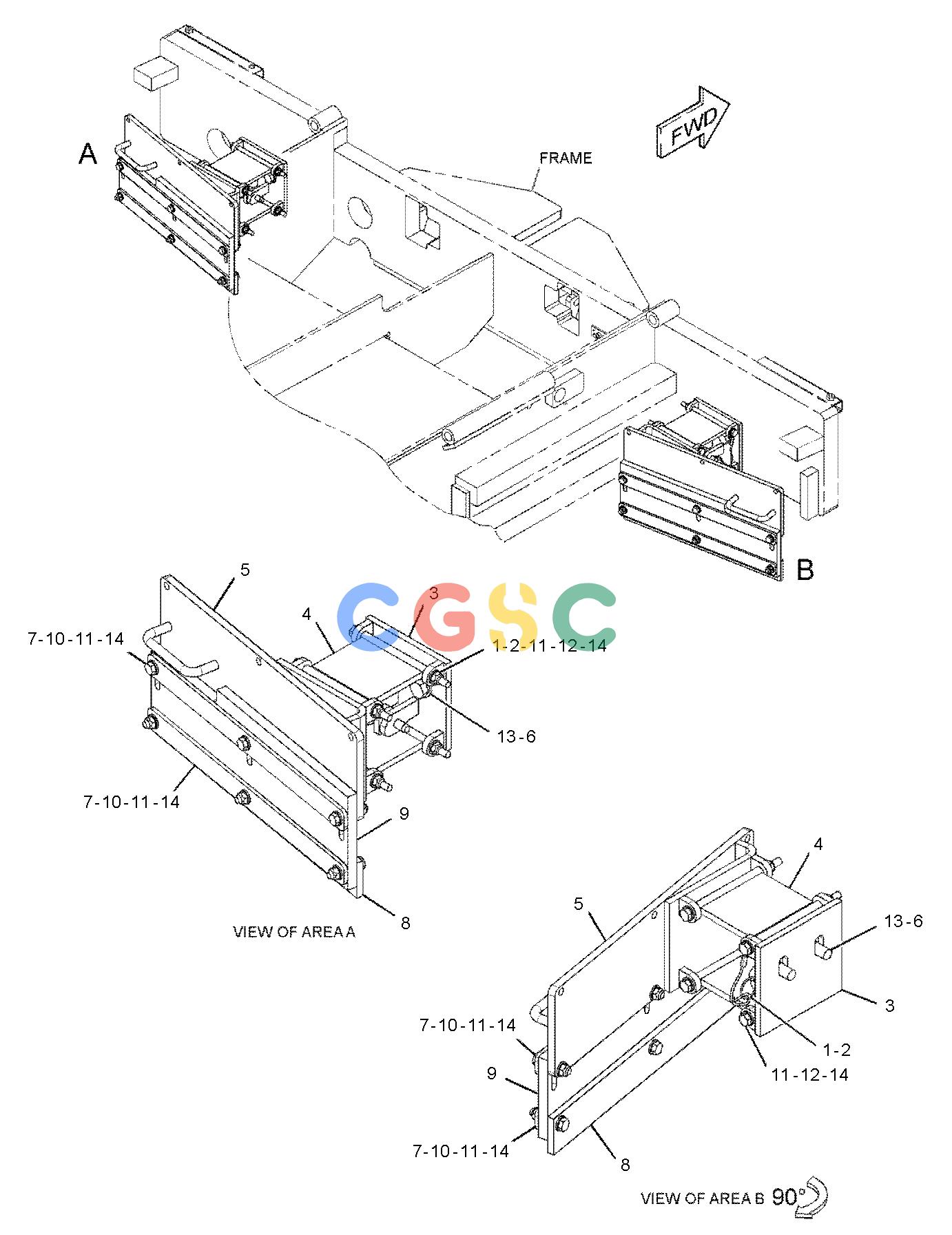

卡特零件查询（BG655D） 273-1160: APRON GP
广数供应链运营团队, 17 02月, 2025，浏览：
254 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 7W-9738 | [1] | WASHER(10.5X38X1.6-MM THK) | |
| 2. | 106-1242 | [1] | SPACER(13.8X23.75X12.7-MM THK) | |
| 3. | 268-7933 | [1] | PIN AS | |
| 4. | 270-3645 | [1] | BAR | |
| 5. | 273-1159 | [1] | PLATE AS | |
| 6. | 303-3133 | [2] | FLASHING | |
| 7. | 303-3134 | [2] | PLATE | |
| 8. | 6V-9829 | [2] | CAP(ORFS) | |
| 9. | 8T-2393M | [1] | BOLT-SOCKET HEAD(M16X2X60-MM) | |
| 10. | 8T-4184M | [4] | BOLT(M12X1.75X45-MM) | |
| 11. | 8T-4196M | [1] | BOLT(M10X1.5X35-MM) | |
| 12. | 8T-4223 | [14] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 13. | 8T-4244M | [4] | NUT(M12X1.75-THD) | |
| 14. | 7X-2548M | [10] | BOLT(M12X1.75X16-MM) | |
| 15. | 467-0027 | [1] | FILM-PANEL | |
| | M | | METRIC PART |
