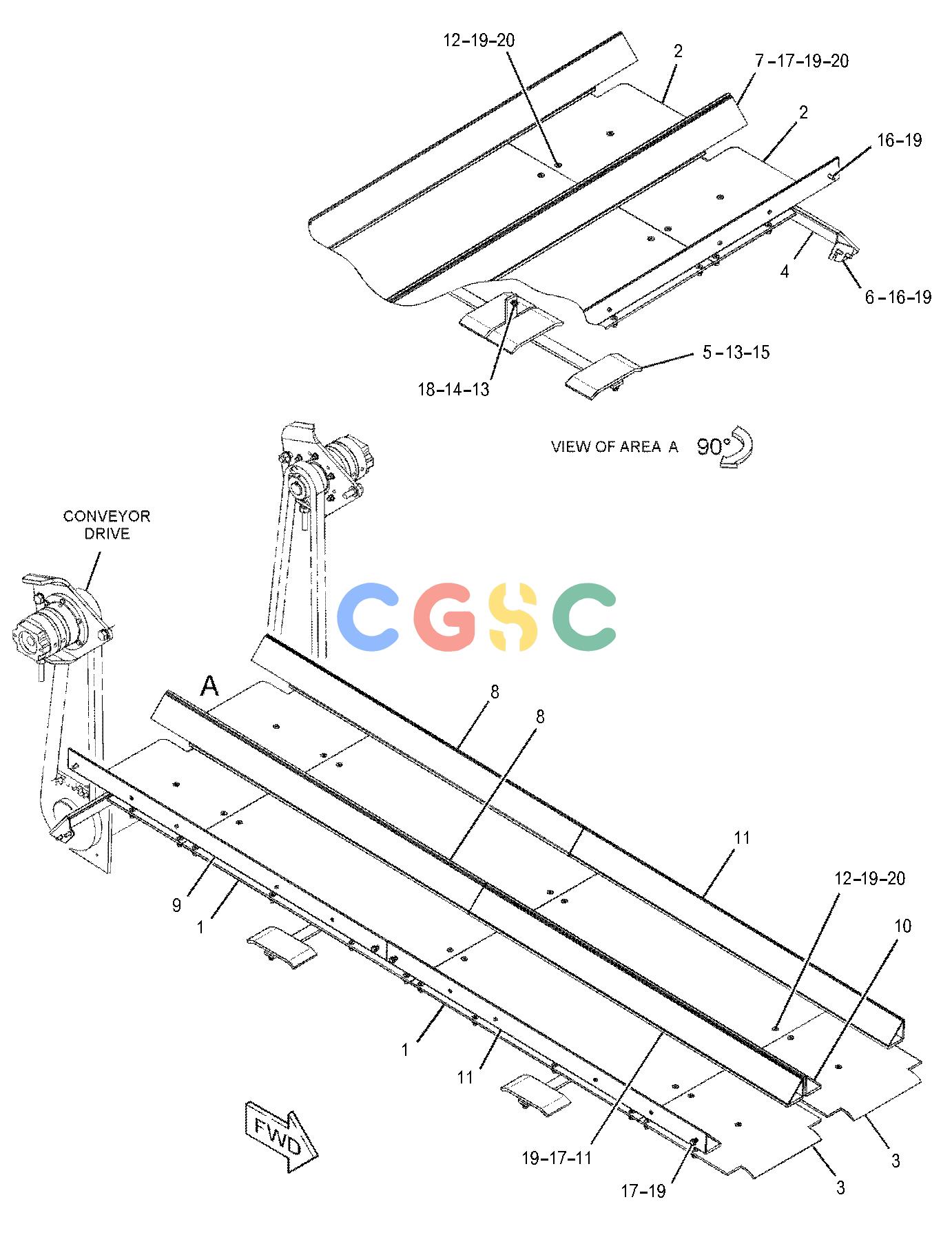

卡特零件查询（BG655D） 263-6002: GUARD GP-CONVEYOR
广数供应链运营团队, 17 02月, 2025，浏览：
743 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 192-5439 | [4] | PLATE | |
| 2. | 192-5440 | [2] | PLATE | |
| 3. | 215-2733 | [2] | PLATE | |
| 4. | 399-3242 | [1] | SUPPORT AS | |
| 5. | 263-5997 | [2] | PLATE AS | |
| 6. | 342-9357B | [1] | SHIM(1.5-MM THK) | |
| 7. | 361-7382 | [1] | PLATE AS | |
| 8. | 361-7383 | [2] | PLATE AS | |
| 9. | 361-7384 | [1] | PLATE AS | |
| 10. | 361-7385 | [1] | PLATE AS | |
| 11. | 361-7386 | [3] | PLATE AS | |
| 12. | 123-0354M | [64] | SCREW-FLAT HEAD(M12X1.75X35-MM) | |
| 13. | 8T-4121 | [6] | WASHER-HARD(11X21X2.5-MM THK) | |
| 14. | 8T-4133M | [2] | NUT(M10X1.5-THD) | |
| 15. | 8T-4136M | [4] | BOLT(M10X1.5X25-MM) | |
| 16. | 8T-4139M | [6] | BOLT(M12X1.75X30-MM) | |
| 17. | 8T-4184M | [10] | BOLT(M12X1.75X45-MM) | |
| 18. | 8T-4196M | [2] | BOLT(M10X1.5X35-MM) | |
| 19. | 8T-4223 | [81] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 20. | 8T-4244M | [65] | NUT(M12X1.75-THD) | |
| | B | | USE AS REQUIRED |
| | M | | METRIC PART |
