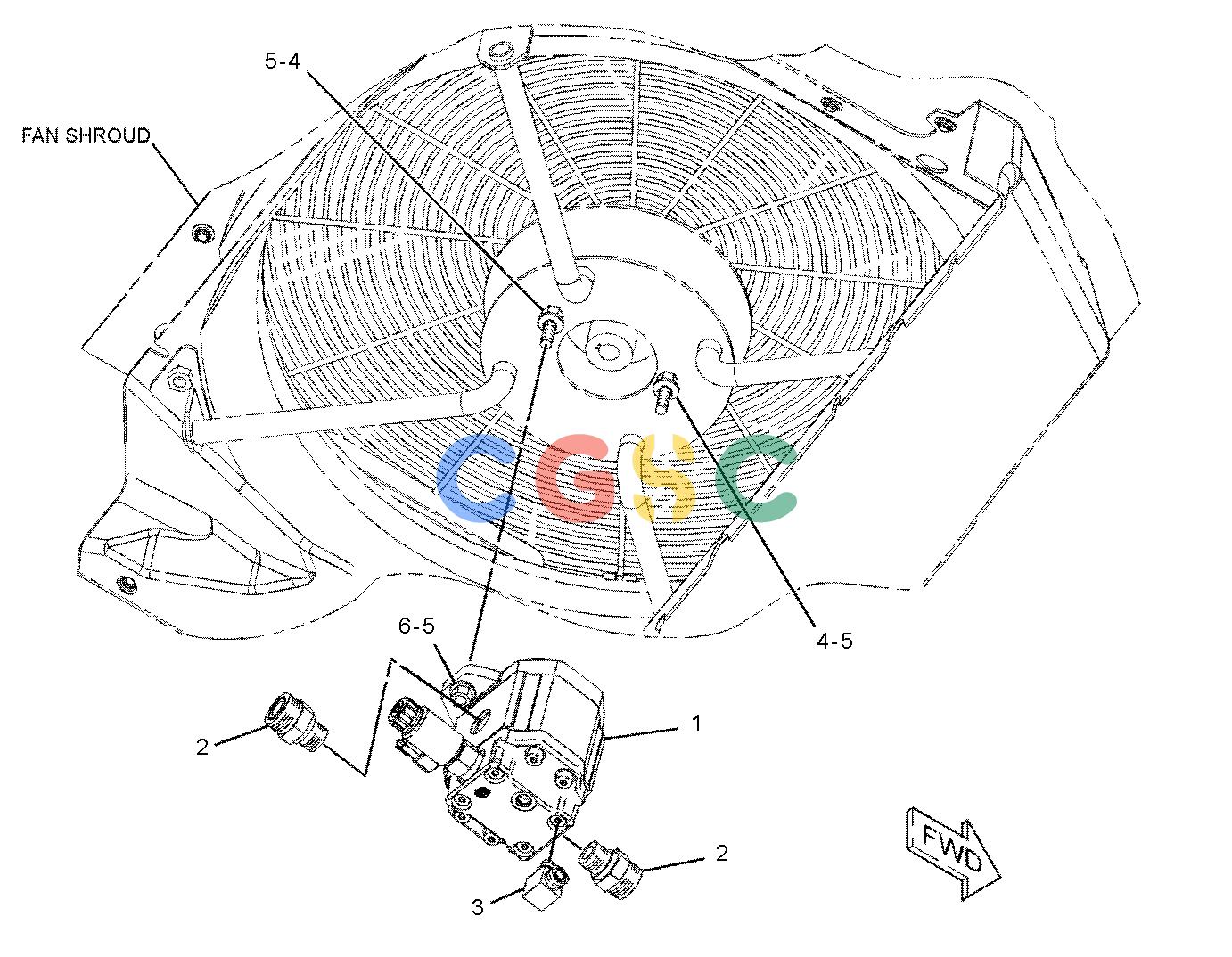

卡特零件查询（BG655D） 270-7251: MOTOR & MTG GP-HYDRAULIC FAN
广数供应链运营团队, 17 02月, 2025，浏览：
987 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 312-3652CY | [1] | MOTOR GP-GEAR(HYDRAULIC FAN) | |
| 2. | 148-8317 | [2] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 5K-9090 | [1] | SEAL-O-RING | |
| | 6V-8714 | [1] | CONNECTOR | |
| 3. | 148-8365C | [1] | ELBOW AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 8T-6876 | [1] | ELBOW | |
| 4. | 8T-4183M | [2] | BOLT(M12X1.75X40-MM) | |
| 5. | 8T-4223 | [4] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 6. | 8T-4244M | [2] | NUT(M12X1.75-THD) | |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
