卡特零件查询（BG655D） 392-5510: MOTOR GP-PISTON
广数供应链运营团队, 17 02月, 2025，浏览：
812 次

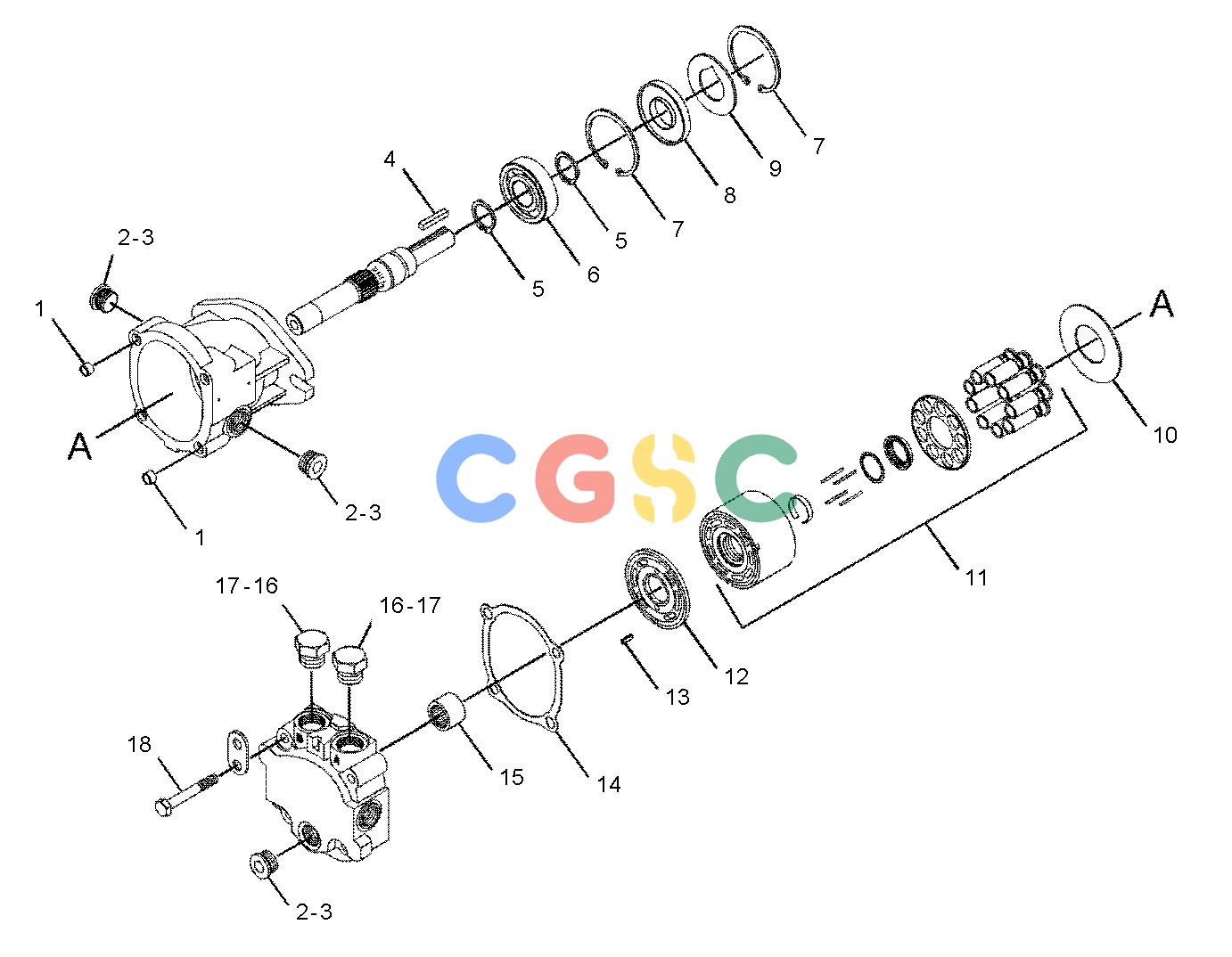

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 7X-5478 | [2] | PIN-SPRING | |
| 2. | 2M-9780 | [3] | SEAL-O-RING | |
| 3. | 9S-8006 | [3] | PLUG(7/8-14-THD) | |
| 4. | 6L-8794 | [1] | KEY | |
| 5. | 4M-6990 | [2] | RING-SNAP | |
| 6. | 108-4578 | [1] | BEARING-ROLLER | |
| 7. | 2H-5549 | [2] | RING-RETAINING | |
| 8. | 392-5514J | [1] | KIT-SEAL(PISTON MOTOR) | |
| | | | (INCLUDES O-RING SEAL & LIP SEALS) |
| 9. | 137-5117 | [1] | WASHER(36.02X71.76X2.16-MM THK) | |
| 10. | 1G-7358 | [1] | PLATE-THRUST | |
| 11. | 231-5215 | [1] | KIT-PUMP REPAIR | |
| | | | (INCLUDES RING RETAINER, WASHERS, SPRING, CYLINDER BLOCK, RETAINERS, PINS, GUIDE & PISTONS) |
| 12. | 122-8968 | [1] | PLATE-VALVE | |
| 13. | 2K-5986 | [1] | PIN-SPRING | |
| 14. | 122-8713J | [1] | GASKET-END CAP | |
| 15. | 4L-6944 | [1] | BEARING AS-NEEDLE | |
| 16. | 3J-1907 | [2] | SEAL-O-RING | |
| 17. | 9S-8004 | [2] | PLUG(9/16-18-THD) | |
| 18. | 8T-5005M | [4] | BOLT(M10X1.5X70-MM) | |
| | | | |
| | | | PARTS SHOWN IN GRAPHIC(S) WITHOUT A REFERENCE NUMBER ARE NOT SERVICED SEPARATELY |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
| | M | | METRIC PART |
