卡特零件查询（BG655D） 269-0533: PUMP GP-PISTON
广数供应链运营团队, 17 02月, 2025，浏览：
589 次

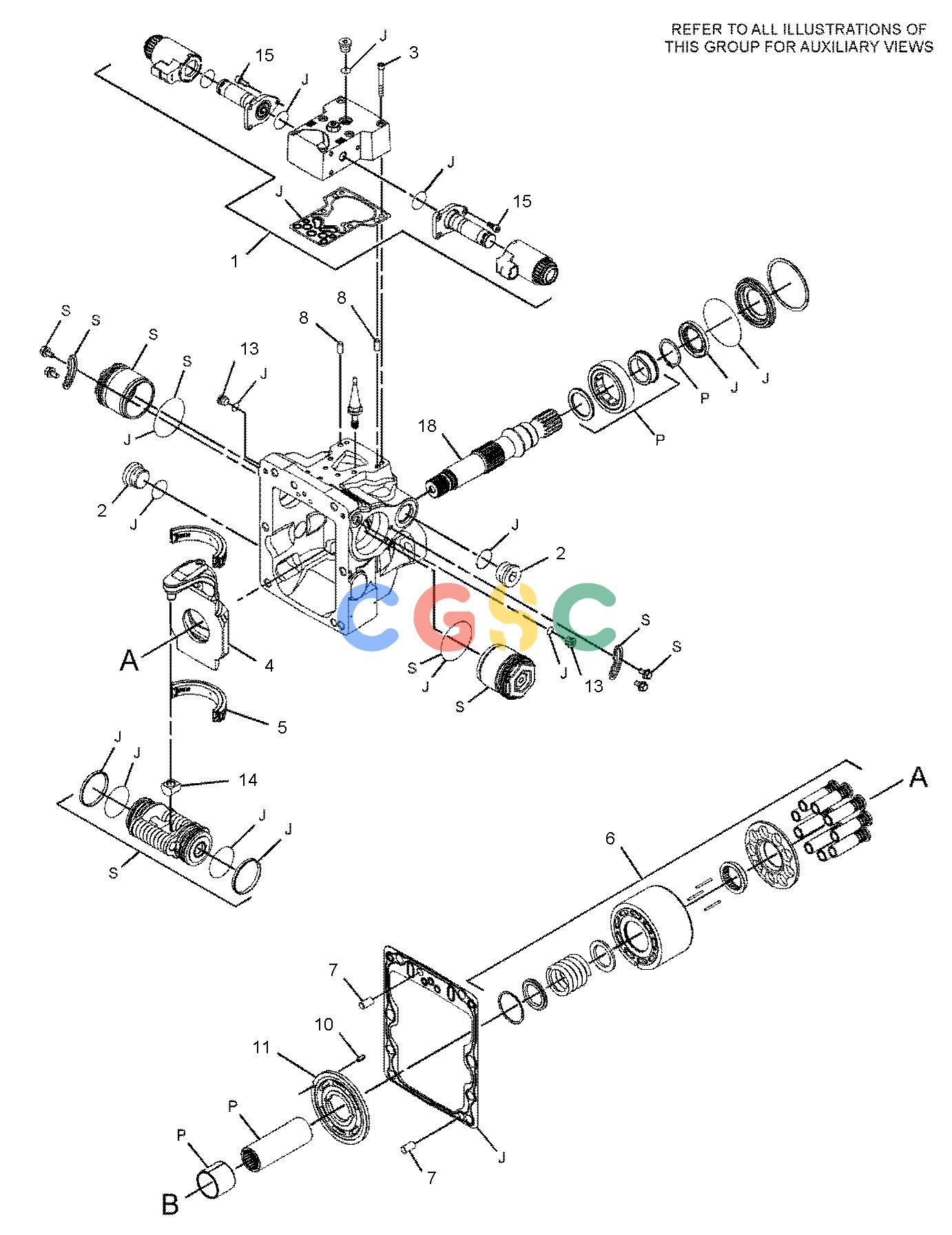

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 310-8017Y | [2] | VALVE GP-SOLENOID(CONVEYOR PUMP) | |
| 2. | 9S-8008 | [2] | PLUG(1-1/16-12-THD) | |
| 3. | 8C-6965M | [12] | BOLT-SOCKET HEAD(M6X1X45-MM) | |
| 4. | 278-8740 | [2] | SWASHPLATE | |
| 5. | 341-7637 | [2] | KIT-BEARING(PISTON PUMP) | |
| 6. | 278-8739 | [2] | ROTATING GP-PUMP | |
| 7. | 6V-3538 | [4] | DOWEL | |
| 8. | 260-3960 | [4] | DOWEL | |
| 9. | 8C-3413M | [6] | BOLT-SOCKET HEAD(M12X1.75X120-MM) | |
| 10. | 8J-8308 | [2] | PIN-ROLL | |
| 11. | 278-8750 | [1] | PLATE(CCW) | |
| 12. | 278-8749 | [1] | PLATE(CW) | |
| 13. | 9S-8002 | [4] | PLUG(7/16-20-THD) | |
| 14. | 280-7860 | [2] | BLOCK-SLIDER | |
| 15. | 099-2374M | [12] | BOLT-SOCKET HEAD(M5X0.8X12-MM) | |
| 16. | 310-8015T | [1] | VALVE GP-RELIEF(CHARGE PRESSURE) | |
| 17. | 437-1443 | [1] | SHAFT | |
| 18. | 436-3728 | [1] | SHAFT-DRIVE | |
| | | | |
| | | | PARTS SHOWN IN GRAPHIC(S) WITHOUT A REFERENCE NUMBER ARE NOT SERVICED SEPARATELY |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 309-9539 | [1] | KIT-SEAL(PISTON PUMP) | |
| | | | (INCLUDES PARTS MARKED J IN THE GRAPHIC) |
| | 278-8745 | [4] | KIT-RELIEF VALVE(CROSSOVER) | |
| | | | (EACH INCLUDES PARTS MARKED L IN THE GRAPHIC) |
| | 278-8742 | [1] | KIT-BEARING(PISTON PUMP) | |
| | | | (INCLUDES PARTS MARKED P IN THE GRAPHIC) |
| | 278-8738 | [2] | KIT-PISTON | |
| | | | (EACH INCLUDES PARTS MARKED S IN THE GRAPHIC) |
| | 310-8016T | [1] | KIT-SEAL(CHARGE PRESSURE) | |
| | | | (INCLUDES O-RING SEALS & BACKUP RINGS) |
| | M | | METRIC PART |
| | T | | KIT MARKED T SERVICES PART(S) MARKED T |
| | Y | | SEPARATE ILLUSTRATION |
