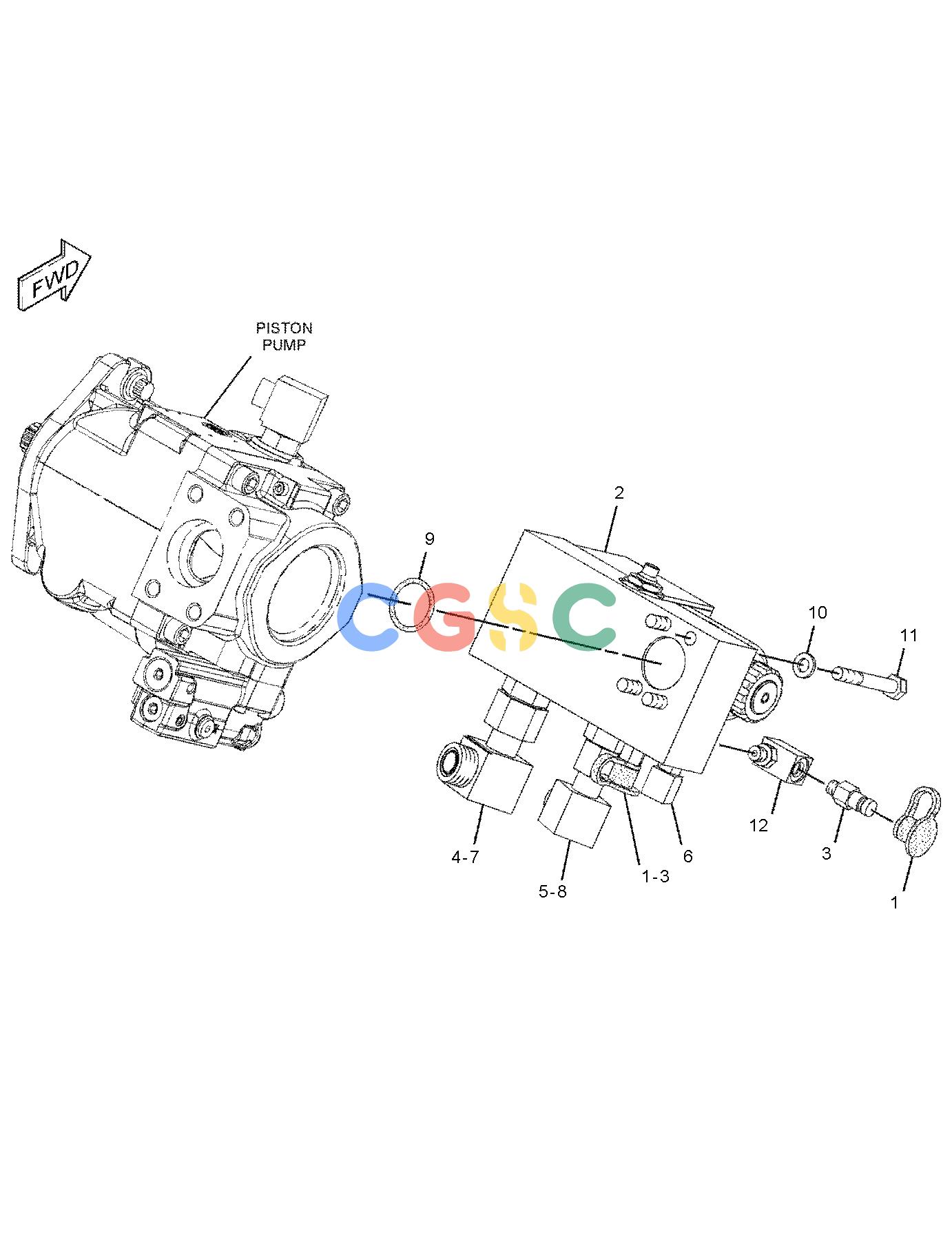

卡特零件查询（BG655D） 289-5223: VALVE & MTG GP-CONTROL
广数供应链运营团队, 17 02月, 2025，浏览：
918 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6V-0852 | [2] | CAP-DUST | |
| 2. | 276-2261Y | [1] | VALVE GP-CONTROL(GENERATOR) | |
| 3. | 110-6349 | [2] | FITTING AS(QUICK DISCONNECT) | |
| 4. | 148-8327 | [1] | CONNECTOR AS | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-8637 | [1] | CONNECTOR | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| 5. | 148-8341 | [1] | CONNECTOR AS | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-8713 | [1] | CONNECTOR | |
| | 7J-9108 | [1] | SEAL-O-RING | |
| 6. | 148-8369 | [1] | ELBOW AS | |
| | 3J-7354 | [1] | SEAL-O-RING | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| | 6V-8628 | [1] | ELBOW | |
| 7. | 148-8392 | [1] | ELBOW AS | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| | 6V-9853 | [1] | ELBOW | |
| 8. | 148-8393 | [1] | ELBOW AS | |
| | 6V-9852 | [1] | ELBOW(SWIVEL) | |
| | 7J-9108 | [1] | SEAL-O-RING | |
| 9. | 4J-0520 | [1] | SEAL-O-RING | |
| 10. | 8T-4896 | [4] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
| 11. | 8T-5005M | [4] | BOLT(M10X1.5X70-MM) | |
| 12. | 162-6802 | [1] | ELBOW AS | |
| | 3J-7354 | [1] | SEAL-O-RING | |
| | 151-5145 | [1] | ELBOW | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
